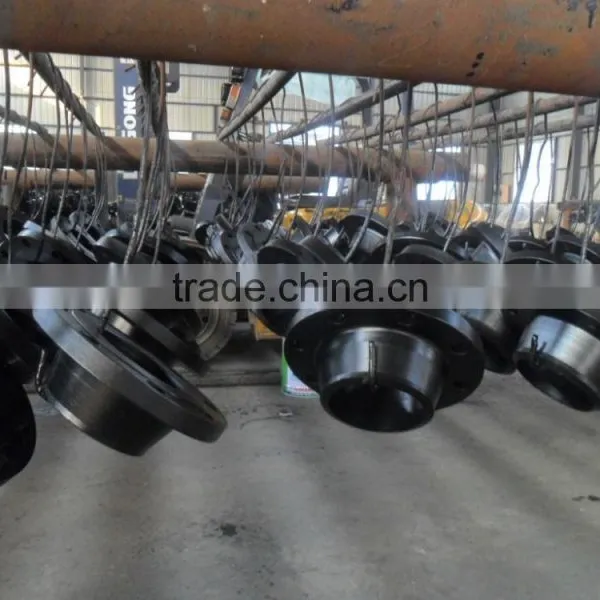

ASME B16.5 Welding Neck Flanges

ASME B16.5 Welding Neck Flanges thumbnail-1
ASME B16.5 Welding Neck Flanges photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Carbon Steel
Standard:
ASME
Place of Origin:
Chongqing, China
Contact Supplier Request Quote Chat Now
Chongqing Jinbo Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Carbon Steel
Standard ASME
Place of Origin Chongqing, China
Standard or Nonstandard Standard

WN Flanges:

ASME B16.5 Welding Neck Flanges :

Dimension B corresponds to the pipe inside diameter.Values quoted assume 40S/Standard wall thickness.
Weights are based on manufacturer’s data and are approximate.
Flat face flanges may be provided at full thickness,C,or with raised face removed (the latter is nonstandard).

Specification:

Pipe Welding Neck Flange

Flange Data

Hub Data

Raised Face

Drilling Data



Nominal
Pipe Size

Outside Diameter

A

B

C

D

E

F

G

H

I

J



Overall
Diameter

Inside
Diameter

Flange
Thickness
min

Overall
Length

Diameter
at Weld
Bevel

Hub
Diameter

Face
Diameter

Number
of Holes

Bolt Hole
Diameter

Diameter of Circle
of Holes




in
mm

in
mm

in
mm

in
mm

in
mm

in
mm

in
mm

in
mm

in
mm

in
mm

in
mm



1/2

0.84

3.5

0.62

0.44

1.88

0.84

1.19

1.38

4

0.62

2.38



21.3

88.9

15.7

11.2

47.8

21.3

30.2

35

15.7

60.45



3/4

1.05

3.88

0.82

0.5

2.06

1.05

1.5

1.69

4

0.62

2.75



26.7

98.6

20.8

12.7

52.3

26.7

38.1

42.9

15.7

69.85



1

1.315

4.25

1.05

0.56

2.19

1.32

1.94

2

4

0.62

3.12



33.4

108

26.7

14.2

55.6

33.5

49.3

50.8

15.7

79.25



1 1/4

1.66

4.62

117.3

0.62

15.7

57.15

2.31

2.5

4

0.62

3.5



42.2

117.3

1.38

15.7

2.25

1.66

58.7

63.5

15.7

88.9



1 1/2

1.9

5

1.61

0.69

2.44

1.9

2.56

2.88

4

0.62

3.88



48.3

127

40.9

17.5

62

48.3

65

73.15

15.7

98.6



2

2.375

6

2.07

0.75

2.5

2.38

3.06

3.62

4

0.75

4.75



60.3

152.4

52.6

19.1

63.5

60.45

77.7

91.9

19.1

120.7



2 1/2

2.875

7

2.47

0.88

2.75

2.88

3.56

4.12

4

0.75

5.5



73

177.8

62.7

22.4

69.85

73.15

90.4

104.6

19.1

139.7



3

3.5

7.5

3.07

0.94

2.75

3.5

4.25

5

4

0.75

6



88.9

190.5

78

23.9

69.85

88.9

108

127

19.1

152.4
