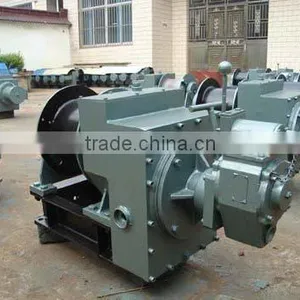

Pneumatic Winch for Accommodation Ladder
- Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Jinbo | |
| Model Number | various | Part | Other |
Product Description
Specifications
Pneumatic Winch for Accommodation Ladder:1) with air motor
2)Working Load: 10KN, 16KN
Pneumatic Winch for Accommodation Ladder:
The winch is a short-time working machinery mainly for hoisting and lowering the ship's accommodation ladder.
Standard: GB1392-85
Main Parts: frame, drum, gear box, motor, handle.
Main Technical Parameters:
| Working Load | 10KN | 16KN | |
| Support Load | 30KN | 48KN | |
| Rope Dia | 13mm | 13-15mm | |
| Pneumatic Motor | Power | 3.5-5.5PS | 5.5-7PS |
| Air consumpttion | 3.5-5.5m3/min | 5.5-7m3/min | |
| Air pressure | 0.5-0.7Mpa | ||
| Hoist Speed | >9.75m/min | ||
Remarks:
1.Change the working oil in the gear box regularly. After the 1st 50hours’ usage, change all lubrication oil and clean the gear box. The lubrication oil should be changed once for one year. N68 (GB443-84) mechanical oil or ISO VG68 is adopted for lubricating. About4.6 liter of lubrication oil should be put into the gear box for the first time .
2. All blocks and riggings that wire rope on drum will pass by should be lubricated with calcium base grease ZG-3(GB491-65) and often filled with grease.
