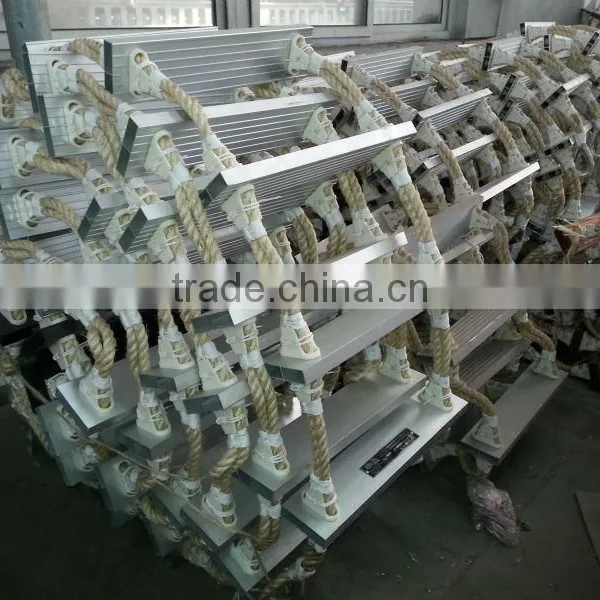

Marine Rope Ladder With Aluminum Steps

Marine Rope Ladder With Aluminum Steps thumbnail-1
Marine Rope Ladder With Aluminum Steps photo-1
US$ 50 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
Jinbo
Model Number:
various
Contact Supplier Request Quote Chat Now
Chongqing Jinbo Marine Equipment Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name Jinbo
Model Number various
Part Other, Link

Specifications

Rope Ladder
1)With DNV type approval cert
2)Quick Delivery
3)Meet the standard of SOLAS&IMO
4)Wooden or Aluminum step

Rope Ladder:

Mount Ship Rope Ladder also can be called as Embarkation Ladder.

Design & Manufacture Standard: CB/T428-93,ISO5489-1986

Embarkation Ladder is used to be a rope ladder for embarking lifeboats & rafts in emergency case. Also for crews to embark when anchoring. Light weight, sate, used widely for various ship.

Good Quality with DNV type approval certificate.



Main Material:

Rope: Manila Rope

Timble: plastick & Steel

Step:

Type Material Weight/pc
A Aluminum 0.95
B Wood 1.9
C Rubber 3.5



Main Size List(mm):

No of step Length of rope ladder (mm) Weight (kgs)
Aluminum Wood
10 3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 9300 56.3 81
35 10850 63.91 93.36
40 12400 71.52 105.72
45 13950 79.13 118.08
50 15500 86.74 130.44
55 17000 94.35 142.86
60 18500 101.96 155.16
to add each 5 steps length increase 1500 weight increase 7.61 weight increase 12.36

Note: the length of a rope ladder is the maximum calculated value under the condition that a ship is heeling to an angle of 15°, and to be selected by the designer.

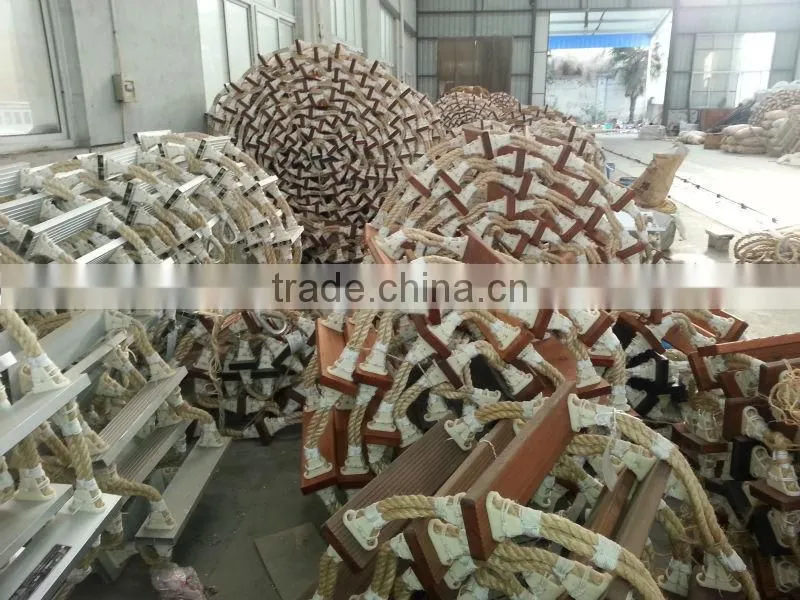

 Rope Ladder with hardwood steps:

Marine Rope Ladder with Aluminum Steps
