Specifications
Electric Winch for Accommodation Ladder1)Working Load: 10/16/20KN
2)Quick delivery
3) One year's warranty
4) CCS,BV,NK etc

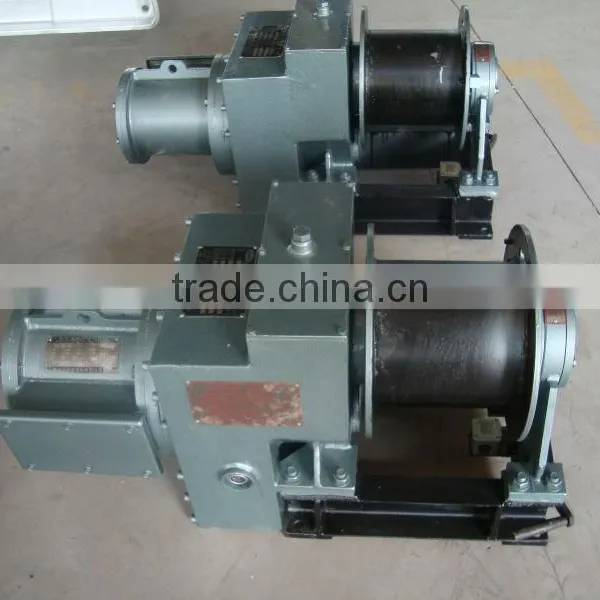

Electric Winch for Accommodation Ladder:
The winch is a short-time working machinery mainly for hoisting and lowering the ship's accommodation ladder.
The winch is with compact structure, equipped with electric control switch. It is reliable and easy in operation. The winch is also equipped with manual device. When operating manually in the case of emergency, Limit switch cuts the power off immediately so as to ensure the safety of operator.
This series of winch have two mounted types: Pad-mounted type and hanging type (Pad-mounted type: ED, Hanging type: EC), installed on the deck or hung under the upper deck. It has two types: left type and right type, they should be manufactured symmetrically.
Standard: GB1392-85
Main Parts: frame, drum, gear box, motor, handle.
* N68(ISOVG68) mechine oil will be used for lubricating the reducing gear(first is about 4.5L), the other be parts must be filled with base grease SY1409-76 ZFG-1H.
Main Technical Parameters:
| Working Load | 10KN | 16KN | 20KN | |
| Support Load | 30KN | 48KN | 60KN | |
| Rope Dia | 13mm | 13-15mm | 15-17.5mm | |
| Electric Motor | 380V,50Hz | 2.2KW | 3.7KW | 7.5KW |
| 440V,60Hz | 2.5KW | 4.0KW | 8.5KW | |
| Drum rope capacity | 37m | 50m | 68m | |
| Hoist Speed | 8.09m/min | 10m/min | 16m/min | |
Remarks:
1.Change the working oil in the gear box regularly. After the 1st 50hours’ usage, change all lubrication oil and clean the gear box. The lubrication oil should be changed once for one year. N68 (GB443-84) mechanical oil or ISO VG68 is adopted for lubricating. About4.6 liter of lubrication oil should be put into the gear box for the first time .
2. All blocks and riggings that wire rope on drum will pass by should be lubricated with calcium base grease ZG-3(GB491-65) and often filled with grease.
