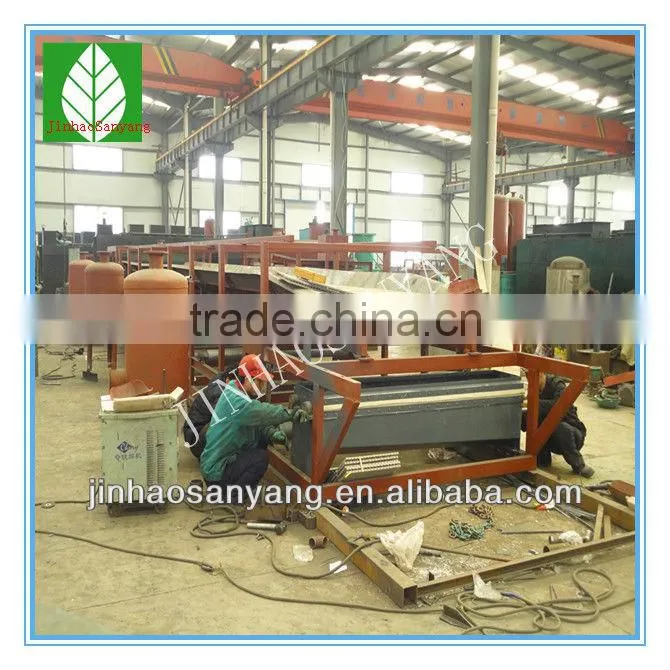

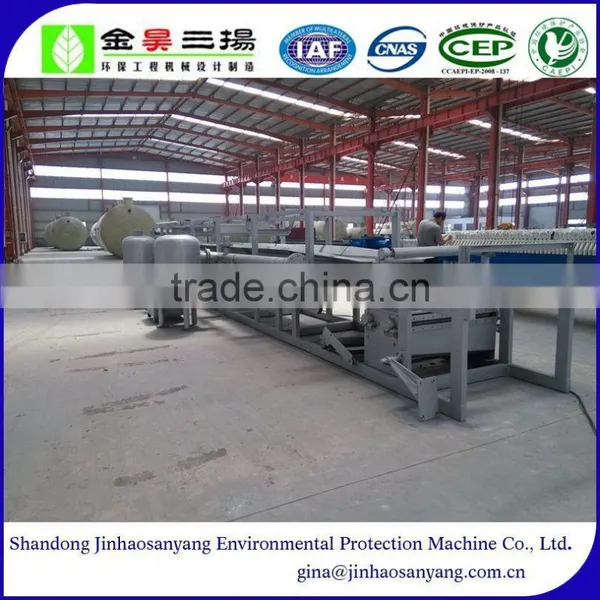

PBF continuous horizontal vacuum belt filter
PBF continuous horizontal vacuum belt filter is the high automatic new type machine. The filter cloth or the net as the filtration medium. Under the working of the slurry’s gravity and the vacuum suction, the solid-liquid separation can be achieved easily, because the filter can be useful for many different concentration slurry and the character of the high efficiency, it has been priority adopted by many industries.
Technical characteristics
- The process of the feeding, filtering, washing, discharging and the cloth regenerating can be achieved highly automatically.
- It can wash slurry by the methods of the multistage current or the countercurrent washing. The filtrate and the washing liquor can be collected separately.
- It can filter a thin layer cake quickly for the hard filtration and the high viscosity slurry.
- It is flexible to assemble equipment because of modular structure and has high adaptability.
- It is convenient to mote and centralized for PLC control.
Washing device
Adopts the craft water to spray the filtration cloth and matched with the vacuum sucker seal box. Therefore, it can guarantee the jobsite cleanly.
The nozzle can guarantee the washing effect well.
Material spraying craft
Adopts the countercurrent washing device or the spray washing device. According to the character of the material and the craft of the requirement. It can choose the methods of the current washing or the countercurrent washing and make the washing more thoughly.
Deviation-rectifying mechanism
Under the working of the cylinder or the air-bag, achieve correcting the deviation of the cloth and make sure the cloth run correctly.
Vacuum system
Control system
Adopts remote control and scene ultimately control, facilitated the operation work, is advantageous for implementing nobody operation.

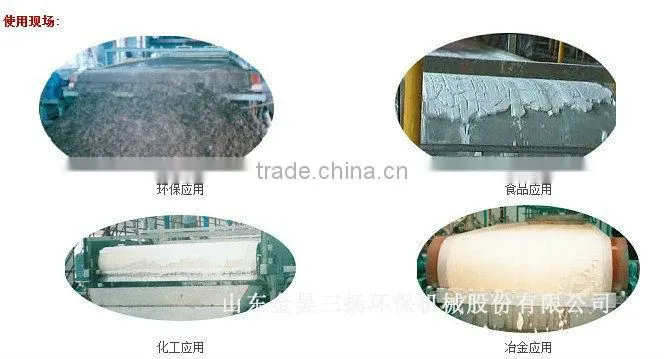

PBF horizontal vacuum belt filter Application examples
Pulp type |
Flocculant addRatio SS% |
containing Wet% |
Filterefficiency kg/m.h |
Pulp type |
Flocculant addRatio SS% |
containing Wet % |
Filterefficiency kg/m.h |
||||||
Industry sludge |
Pulp sludge |
0.2-0.3 |
62-68 |
150-300 |
City sludge |
Original sludge |
0.4-0.9 |
71-75 |
140-390 |
||||
Food industrial waste water |
0.6-1.0 |
75-80 |
60-120 |
Digested sludge |
0.2-2.7 |
65-75 |
140-390 |
||||||
Textile factory waste water |
0.7-1.1 |
60-65 |
120-300 |
Activated sludge
|
0.6-1.1 |
81-84 |
80-120 |
||||||
Coal waste water |
0.025-0.035 |
22-27 |
4000-5000 |
Metallurgy wastewater |
0.013-0.02 |
25-35 |
1000-2000 |
||||||
We are professional manufacturer of various bar screen machine, wastewater treatment equipment, filter press, belt filter press, and vacuum filter, dissolved air floatation etc, and can supply you the most cost-effective products with best price!
Horizontal Vacuum Belt Filter with good quality
