XZG Bridge Type Center Drive Sludge Scraper
- 15 Set / Sets per Month
- Qingdao
- T/T
- NC type center drive thickener for sludge treatment
- NB type sedimentaion tank periphery drive sludge thickener
- Radial flow Sedimentation Tank Mud Scraper
- HXS mobile bridge type sand sucking machine
- NC type center drive gravity sludge concentration pool
- NC type center drive sludge thickener equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | jinhaosanyang | Model Number: | XZG |
Packaging Details
container;
standard export package
Product Description
Specifications
center drive sludge scraper1. pool diameter: 6-16m
2. motor power: 0.37-2.2kw
3. material: stainless steel, carbon steel
XZG Bridge Type Center Drive Sludge Scraper
XZG suspension type center drive sludge scraper be appliable water supply and drainage engineering water works or sewage treatment factory for the mud scrapping and removing of the sedimentation tank that diameter less than 20m.
Working principle

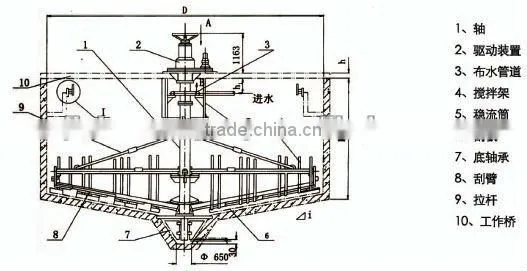

suspension type center drive mud scraper mainly consists of reducer driving device, transmission shaft, scraping arm, underwater bearing and mud collecting slot scraper, the whole scraper load effect the fixed across work birdge center.
The raw water is presented radiation to fly to pond periphery to overflow sink after go together with the water tube distribution water by center, with the reduce of the flow speed, the suspenede matter in water be separated and sedimente to the pond bottom, through the reducer driving and suspended device driving, the scraper scrape the mud to centre mud collect mud slot, depend on quiet water pressure dint or pump to eduction pool.
Technical Parameters
Model | Diameter (m) | Motor power | Walk around line speed(m/min) | Scraper arm no. | Load (KN) | Installation size (mm) | ||||
XZG-6 | 6 |
| Primary clarifier | Secondary clarifier |
| 19 | A | B | C | D |
XZG-7 | 7 |
|
| 22 |
|
|
|
| ||
XZG-8 | 8 | 24 | ||||||||
XZG-9 | 9 | 26 | ||||||||
XZG-10 | 10 | 29 | ||||||||
XZG-11 | 11 | 0.37-2.2 | 2-3 | 1.5-2.5 | 2 | 31 | 340 | 320 | 105 | 420 |
XZG-12 | 12 |
|
|
|
| 34 |
|
|
|
|
XZG-13 | 13 | 36 | ||||||||
XZG-14 | 14 | 39 | ||||||||
XZG-15 | 15 | 41 | ||||||||
XZG-16 | 16 | 44 |
Application
Shipping by 20'GP ,40'GP or 40'HQ
1. How to buy your interested products?
ANS: You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project (More details, please contact us).
2. How to pay?
ANS: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
ANS: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
4. How to pack the products?
ANS: We use standard package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.
5. How to install after the equipments arriving destination?
ANS: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
6. How long is the validity?
ANS:The validity is 12 months from B/L date.
Company Profile
Shandong Jinhaosanyang Environmental Protection Equipment Co., Ltd. is a new high-tech company. Our company is a prestigious, formal, large-scale and environmental protection machinery manufacturer in China, and has an absolute competitive strength in the field.
Our company has 300 employees, including technical and management staff members of more than 50. Our company has the advantages of processing technology, large-scale equipment, specialized personnel, design experience, and advanced technology force. We have cooperated with environmental experts and design professors in famous universities and institutions, independently developing production sewage treatment equipment, filtration equipment, pulping equipment and boiler dedusting equipment. We are a comprehensive mechanical equipment development enterprise.
Relying on existing conditions, we research and develop the internationally advanced technology. Our company has developed a variety of highly automated and reliable sewage treatment equipment. Products are sold throughout the world, such as Egypt, Vietnam, New Zealand, Finland, the Netherlands, Australia and other countries and regions.
Our company has implemented a science-oriented view of development, and consistently pursuing the tenet of "credibility first, quality first, being proactive, innovative and pioneering". We have made brilliant achievement in various industrial fields. We always adhere to the principle of "equality and mutual benefit, Quality First and Reliable Reputation". By joint efforts, we hope to promote both trade and friendship to our mutual advantage.
Zhucheng Jinhaosanyang Environmental Protection Equipment Co., Ltd. sincerely welcomes your visit. We hope to cooperate with international guests and friends to create the resplendence together!
