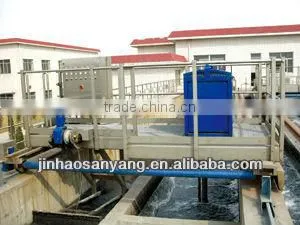

HXS mobile bridge type sand sucking machine
Use and brief introduction
HXS mobile bridge type sand sucking machine to used for wasterwater treatment factory to sink sand pond and aeration sink sand pond, will sink to decline promote in the pond heavy degree bigger train and the hybrid liquid of sewage of the sand, cinders coal etc of the bottom and transport to leave a machine with sand humidity allied connect of outlet.
Characteristics:
- Adopt dive unstopped pump to promote and transport the mixing water of sand, and the air promote sand water to mix two kinds of method.
- The residue rake promotes and can adopt dynamoelectric push a pole to drive, and bump a piece of patterns with various etc.
Structure and working principle:
HXS mobile bridge type sand sucker machine consists of girder, driving device, submersible sewage pump, leave slag device, guide and control box etc.
Sand sucker machine is place at the steel rail top of pond crest according to the enactment of the period automatically goes back and forth movement, mix the pond bottom sand water a liquid to promote to be alongside of to the gather of pond side water dike and be with the current popular drove, the residue rake descends to pare off to gather to float a residue and send to the residue slot of pond bitter end.: Anti-to drive hour. The residue rake promotes and leaves liquid noodles in order to prevent float residue treacherous acts.
Don’t take residue to equip of absorb sand machine structure to see figure.
Technique parameter:
|
model specification |
HXS-2 |
HXS-4 |
HXS-6 |
HXS-8 |
HXS-10 |
HXS-12 |
Pond width(L)m |
2 |
4 |
6 |
8 |
10 |
12 |
Pond depth(H)m |
1-3 |
|||||
Pump model |
AV114-4 submesible sewage pump |
|||||
Pump characteristics |
delivery:5.8m speed:22m3/h power:1.4kw |
|||||
Power kw |
0.55kw |
|||||
Driving devece power kw |
≤2*0.37 |
|||||
Speed m/min |
2-5 |
|||||
Guide model |
15kg/m GB11264-89 |
|||||
Guide side mm |
(b1-20)60*10 (b1:sink sand pool wall thickness) |
|||||
Gap mm |
1000 |
|||||
Our certification:
We are professional manufacturer of various bar screen machine, wastewater treatment equipment, filter press, belt filter press, and vacuum filter, dissolved air floatation etc, and can supply you the most cost-effective products with best price!
Sand sucking machine with good quality
