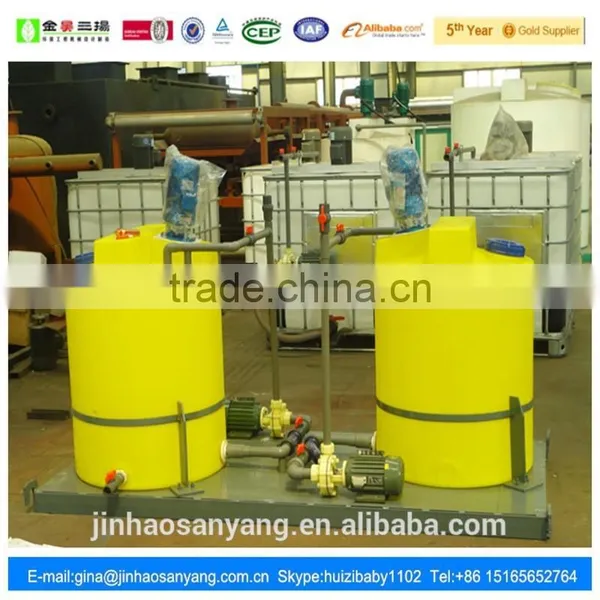

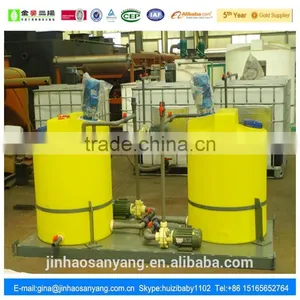

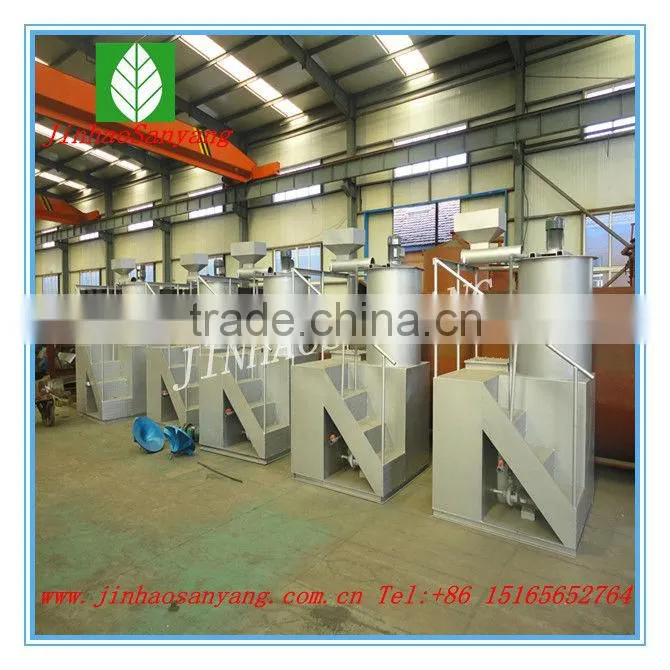

JY type effective municipal wastewater treatment dosing device
JY type dosing device can be roughly decided into a box and no solution box two kinds, normally most foe aitificial cast division(dry powder or agent), general requirement configuration solution: after more than 9, temperature PH more than 50 degrees celsius.
A solution box dosing device can be used for single machine for preparing and additive, general used for drug dosage relativel small occasions, drug dosage bigger when can be set up many sets of symmentrical layout. Example: JYA-23/4X0X0.36. Each box solution according to the technical requirement put all sorts of storage solution.
No solution box dosing device for now currently in use form, can be used with two sets of combination realized for the drug delivery.According to different drug dosage the specifications of the size change, but through the base that dosing device and metering pump composition of the whole.
Characteristics
- JY dosing device with characteristics of stir well, high efficiency(soluble durg time is commonly 5-10min)
- if the water level, water and supportin the alarm control function, which can realize half automation administer them.
- coagulant dosage concentration(except PAM, the general agent, for 50-20%) and dosing quantity can be determined by artificially, meet the technological requriements.
- structure and the operation is simple, convenient installation.
- according to different corrosive agents can choose different materials.
Main technique parameters
Project name |
Parameters |
Project name |
parameters |
|||||
Shape size(mm) |
1910*1210*2580 |
Soluble eeeective volume Drug bottle(m3) |
0.4 |
|||||
Motor power(kw) |
1.1-1.87 |
Store drug bottle Effective volume(m3) |
1.0 |
|||||
Device working weight(ke) |
3800 |
|||||||
Corollary equipment main technical parameters | ||||||||
Mixer model |
JB-76 |
Speed |
300r/min |
Power |
0.37kw |
Depth of blade |
700-800mm |
|
|
Metering Pump type |
Diapharm Type or Piston type |
Flow |
Reference Users |
Power |
Reference Users |
Work Pressure |
Reference’ users |
|
Welcome to contact us in any time, and welcome to visit our company!
We are professional manufacturer of various chemical dosing device, bar screen machine, wastewater treatment equipment, filter press, belt filter press, and vacuum filter, dissolved air floatation etc, and can supply you the most cost-effective products with best price!
Dosing Device with good quality!
