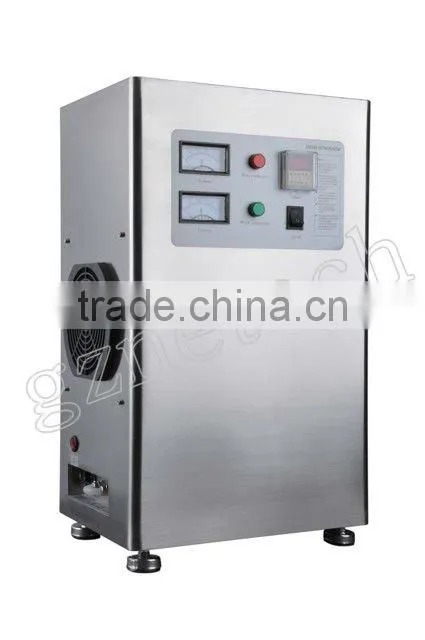

Help CenterHOT Sale 20g Indoor Fish Farming Ozone Generator /water Treatment
Related Products
-
2013 Hot Sales Home Use Blue 5g Ozone GeneratorNegotiableMOQ: 1 Set -
3L-10L Oxygen Concentrator for Home UseNegotiableMOQ: 1 Set
-
3L-10L Indoor Oxygen ConcentratorNegotiableMOQ: 1 Set
-
2-6g Water Ozone Generator Shower Ozone GeneratorUS$ 100 - 299MOQ: 1 Set
-
2-6g Washing Machine Ozone Generator Water TreatmentUS$ 100 - 299MOQ: 1 Set
Specifications
20g indoor fish farming ozone generator /water treatment1.With built-in Auto-drying system
2.With built-in air feed
Swimming pool / Fish farm ozone generator water treatment
-------Model:NT-T
We are factory of ozone generators in China
Applications:
Workshop air purifier, Hospital air sterilizer, Greenhouse sterilizer, Farming sterilizer and remove odor, Keep fresh, wash and remove the residual pesticides for vegetable and fruits, Air purifier, Ozone air purifier, Ozone air sterilizer, Workshop sterilizer, Air conditioner room ozone generator, small scale water treatment, Food factory water treatment equipment, Home water treatment
Functions:
·Laboratory: chemical oxidation for raw material of flavors and fragrances, small water treatment experiment
·Beverage process industry: such as pure water, spring water and any other water sterilization and disinfection
·Fruits & vegetables process industry: such us keep fresh, storage etc
·Food process industry: water, workshop, sterile room, equipments, tools
·Pharmaceutical industry: water, air conditioner, workshop, dressing room, sterile room etc
·Medical: ward, operating room, medical devices, sterile room etc
Features:
·Wall hanging SS housing
·With built-in Auto-drying system
·With built-in air feed or connect outside oxygen feed
·Use with air cooling ceramic tube, high frequency electric board, thus with stable ozone capacity, long life time
·Small in size, it can be movable
·Timer: one or two recycle working time
Control panel:
Voltmeter, Ampmeter, Switch, Timer, Working light, Power light
Specifications
Item |
Unit |
NT-T |
||||||
2G |
3G |
5G |
6G |
10G |
15G |
20G |
||
Oxygen flow rate |
LPM |
0.5~2 |
1~3 |
1.2~3 |
1.5~3.5 |
2.4~6 |
3.6~9 |
3~10 |
Ozone concentration |
Mg/L |
28~50 |
28~65 |
32~60 |
28~56 |
32~60 |
32~60 |
51~104 |
Ozone output |
G/Hr |
1.5~3.0 |
4~5.0 |
4.3~5.7 |
5.0~5.8 |
8.6~14.5 |
13~17 |
18~31 |
Power |
W |
115 |
135 |
160 |
185 |
260 |
330 |
400 |
Cooling method |
Air cooling for internal & external electrodes |
Water cooling |
||||||
Air flow rate (Suggested) |
LPM |
40~60 |
50~75 |
50~90 |
||||
Compressed air pressure |
Mpa |
0.025 |
||||||
Fuse of power supply |
A |
3 |
5 |
5 |
5 |
|||
Size |
mm |
360×260×610 |
400×300×770 |
400×300×770 |
||||
Net Weight |
kg |
11.25 |
11.30 |
11.50 |
18 |
20 |
35 |
|
·Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
3. 2-15G with SS box by air cooling for ozone tube, 20G with carbon steel sprayed with plastic box by water cooling for ozone tube.
4. All of model under air source with Auto-dryer, ozone capacity was tested under oxygen source.
