Specifications
water cooled enamel ozone tube1.water cooling
2.enamel tube
3.high ozone concentration
4.adjustable ozone output
hot sale water cooled enamel ozone tube
hot sale water cooled enamel ozone tube
DESCRIPTION
WE ARE THE OZONE GENERATOR BEST SUPPLIER IN CHINA!
Item |
Unit |
NT-PC10G |
NT-PC20G |
NT-PC30G |
NT-PC50G |
NT-PC60G |
Oxygen flow rate |
LPM |
1-3 |
2-6 |
3-10 |
5-15 |
8-18 |
Ozone concentration |
Mg/L |
88-58 |
88.6-57 |
87.5-56.8 |
90-56 |
90-60 |
Ozone output |
G/Hr |
5.28-10.44 |
10.63-20.52 |
15.75-34.08 |
27-50.40 |
43.2-64.80 |
Power |
Kw |
0.30 |
0.50 |
1.00 |
||
Output frequency |
KHz |
6 |
6 |
5 |
||
High voltage output |
V |
3600V Peak to Peak |
||||
Power amplification |
A/V |
IGBT 50A/600V |
||||
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
30 |
48 |
|||
Cooling water temperature |
°C |
35 |
||||
Fitting size |
mm |
1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: Edφ10mm |
||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 50/60HZ |
||||
Fuse |
A |
3 |
5 |
|||
Ozone tube dimension |
mm |
250×105×125 |
310×105×125 |
430×105×125 |
575×105×125 |
778×105×125 |
Mounting hole foot print of ozone tube |
mm |
127×44(φ5) |
195×44(φ5) |
320×44(φ5) |
450×44(φ5) |
555×44(φ5) |
Power supply dimension |
mm |
162×132×100 |
162×132×100 |
198×182×120 |
198×182×120 |
248×214×140 |
Mounting hole foot print of power supply |
mm |
155×127 |
155×127 |
192×177 |
192×177 |
243×208 |
Ozone tube weight |
Kg |
2.50 |
3.00 |
3.60 |
4.90 |
5.45 |
Power supply weight |
Kg |
1.50 |
2.90 |
4.40 |
||
Features:
>> It uses insulation materials for connections, for preventing creepage

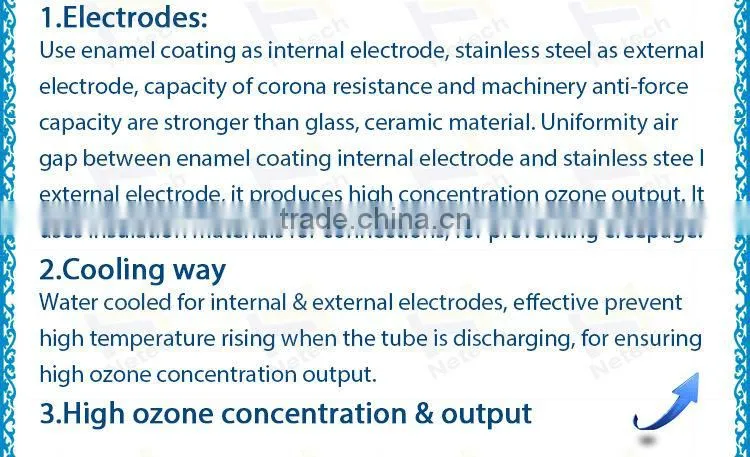

>>Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material.
Application:
>> Aquactulture,Aquarium,Fish farming Water treatment
>>Cooling towers water treatment
>>Swimming pools Water treatment
>>Sewage water treatment
>>Water Disinfection& sterilization
hot sale water cooled enamel ozone tube
hot sale water cooled enamel ozone tube
QUALITY CONTROL
Every procedure has personnel inspection.
All the products must be tested and qualified before packaging.
Excellent after-sales service:
>>1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
>>We provide 12month free maintenance.The buyer should return theproduct in the original
conditions to us and should bear the shipping costs for return. If any part is required to be
replaced,the buyer should also pay for the costs of the parts to be replaced.
Why choosing us?·
>>Having 7 years production experienced .We are trusty business partner.·
>>Quality Controlled:Quality Control personnel check the quality at every stage of production, from the incoming raw materials to the finished product.
>>NT-PC Production Capacity: 3000 pcs per month. ·
>>We have serial products: ozone tube ,UV water sterilizers, ozone generators, oxygen concentrators, protein skimmers, and filters, mixing pumps and other water or air treatment spare parts.·
>>We supply OEM service according to customers' requests and give out professional suggestions. Distributors Offer : Welcome to be our distributor
