Geomembrane Hot Wedge Welder Welding Machine for 1.5mm-3mm

Geomembrane Hot Wedge Welder Welding Machine for 1.5mm-3mm thumbnail-1
Geomembrane Hot Wedge Welder Welding Machine for 1.5mm-3mm photo-1
US$ 1,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BPM welder
Model Number:
L900
Contact Supplier Request Quote Chat Now
The Best Project Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name BPM welder
Model Number L900
Voltage 220V, 220v or convert by converter as required
Current 50Hz
Rated Capacity 1800w
Rated Duty Cycle 1800w
Dimensions 46*50*39cm
Weight 13kg
Usage seaming and welding
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

equipment for welding membrane
welding equipment for thickness of 1mm-3mm
Overlap wedge welder
Joint width:12cm

             geomembrane hot wedge welder welding machine



 Welder Description>>>

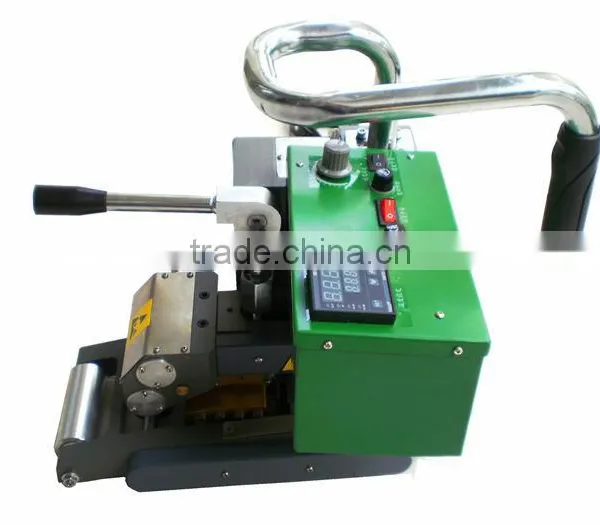

Geo-membrane Overlap Wedge Welder

Geomembrane welder is a new welding machine which is developed by our company. They can weld geo-membrane of various thickness and are applicable for welding of all thermalfused material such as the LDPE,

PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP material.



 Technical Parameter>>>

1  Output Voltage:220V            Frequency:50Hz

2  Power:1800W

3  Welding speed:0.5~5m/min

4  The temperature of Heating up:0~450°C

5  The thickness of welding material:1.0mm~3.0mm(Single membrane thickness)

6  Welding width:14mm×2   Interior Cavity :16mm

7  Welding intention≥85%Maternity material(Resistance to the direction of cutting)

8  Joint width:120mm

9  Machine body weight:13kg

 geomembrane hot wedge welder welding machine for 1.5mm-3mm



 Working principle>>>

Electric machine carried with above and below pressure wheel and turn it  through speed-slow box and chain steel,

and heating the bracket up and turn thermal wedge to plug in

between the two main materials, meantime let the pressure bracket press the pressure wheel  to made the thermal-fused mother material together. The picture is as follow:



geomembrane hot wedge welder welding machine for 1.5mm-3mm

Operation criteria>>>



Notice: In order to obtain the excellent quality and high efficiency, it should be manipulated by professional people

since the welding quality of the machine has direct relationship with the enactment of speed and temperature.



 1  The user must choose to the three holes receptacle with earthing and confirm the good connection of exterior

     wire. Pick the pressure handle up to separate the up and down iron wheels and then plug the power supply on.

 2  Switch power supply on, and choose suitable temperature (Temperature adjusting diagram – literature) and speed

 3 The estimation of the welding temperature: it can be directly watched the transparence PE material .If the welding

mark is lever-off with transparence glass status, it showed that the temperature and the speed is suitable

 4 Mending the edge of the welding material smooth .The surface face to the front side, and overlap to left down and right up

.The width of pulled up is 120mm.



5 Plug the welding material between the two iron wheels to make the parallel between the body of the machine and the edge

of mother material



6 Owing to the thermal inertial, it can adjust the temperature within small scope to offset the discrepancy in temperature if it

comes too high or too low in the process of welding.



7 In the process of welding, it can adjust through the two interior hexangular screw on the swaying head if the welding mark is

not equality in two outside.



8 Welded material crossed with another material in the shape of “T”. The ways of welding is as the diagram below. Cut the

crossing head sticking to the thermal wedge off 12cm inclined.



The adjustment of the Pressure wheel >>>

According to the various thickness of material, it can be adjusted the magnitude of pressure by switching the modulated

 screw. It will increase by clockwise, and it decrease by anticlockwise.

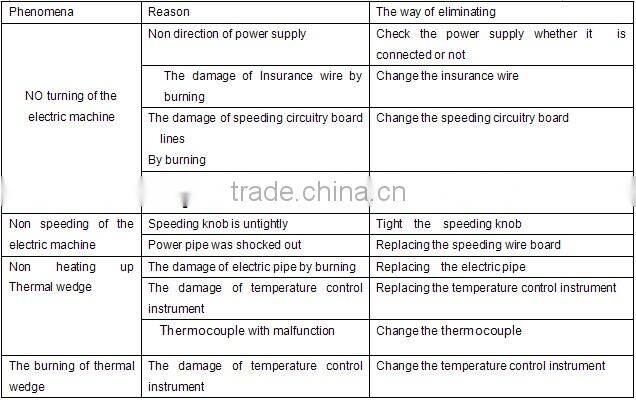

Malfunction  and elimination>>>

geomembrane hot wedge welder welding machine for 1.5mm-3mm

Maintenance>>>

Please clean the dunghill in the thermal wedge and the mud when not using it.



Other similar Products you may interested:

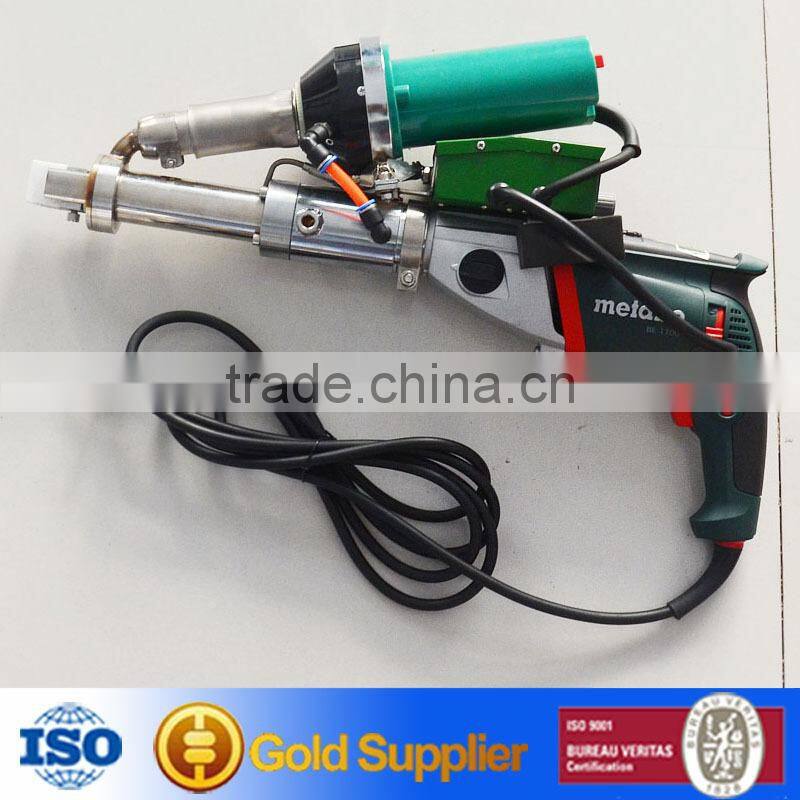

Hand extruder

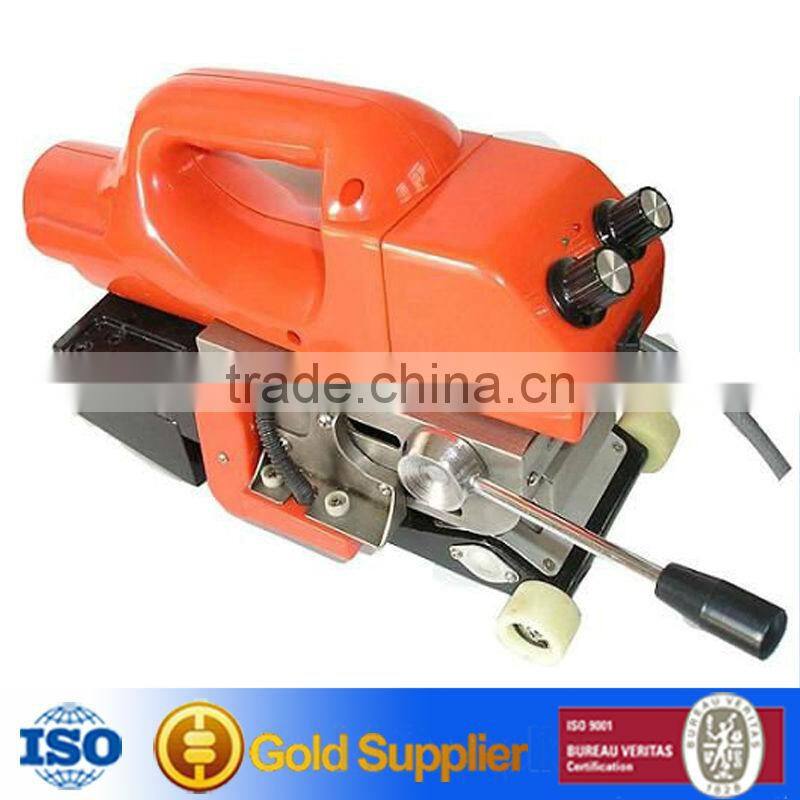

Welding machine



geomembrane hot wedge welder welding machine for 1.5mm-3mm

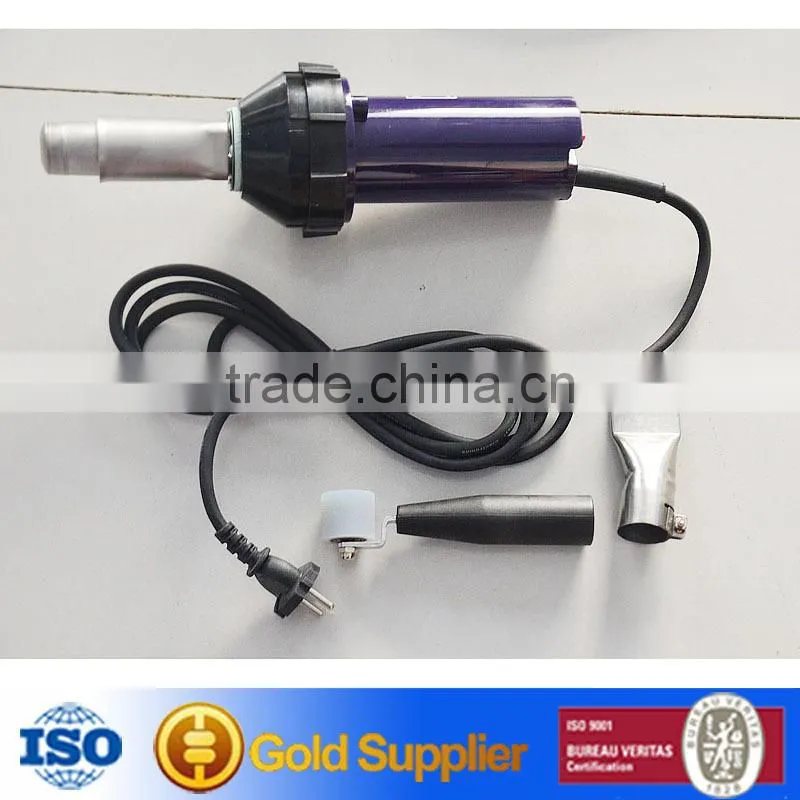

 Hot air Tool  (Repairing and patching of corners 0f  0.2mm-1.5mm)

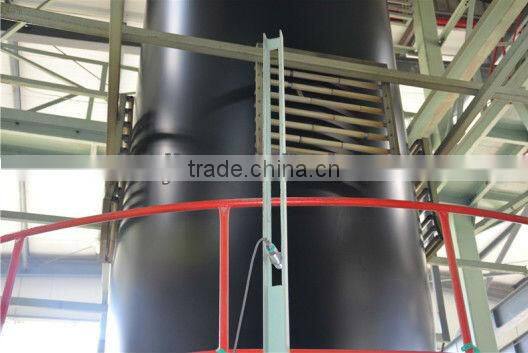

HDPE Geomembrane

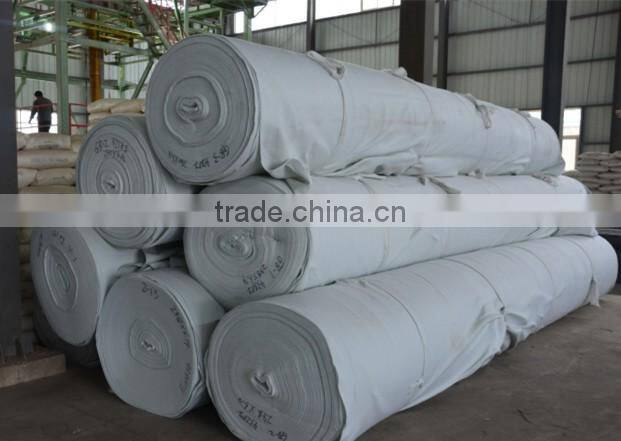

 PET geotextile

geomembrane hot wedge welder welding machine for 1.5mm-3mm



Welcome your inquiry and sample order
