retaining wall ultrasonic welding plastic hdpe geocell price
BPM HDPE geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technics .
It is flexible to fold during the transport and installation on construction site.
The geocell nets will be filled with soils,granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
Notes:When you are ready to inquire hdpe geocell,pls specify your requirements firstly as follows:
1.Geocell Height(from 50mm to 200mm).
2.Welding Distance(from 330mm to 1000mm).
3.Seam Peel Strength(100N/cm,120N/cm,140N/cm,142N/cm).
4.HDPE Sheet Thickness(1.0mm,1.1mm,1.2mm,1.5mm,1.75mm)

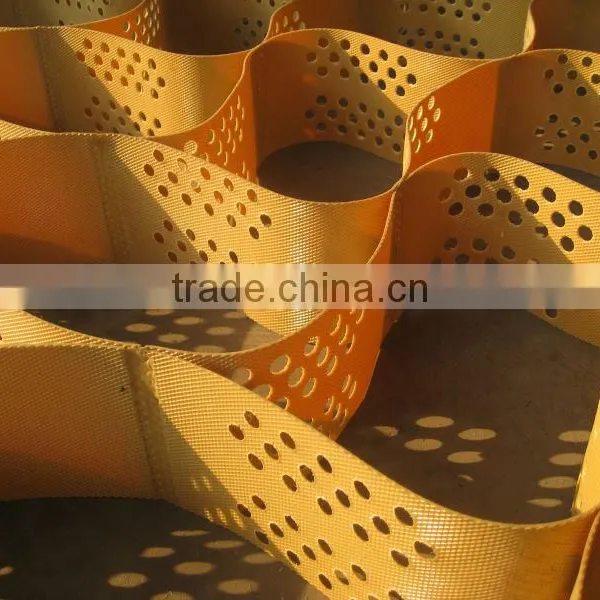

Enlarged Geocell Image
Product Type |
Height(mm) |
Welding Distance(mm) |
Thickness (mm) |
Tensile Strength of Welding Points(N/cm) |
Tensile Strength of Connection of Cells(N/cm) |
Tensile Strength at Yield of Each Sheet(Mpa) |
Smooth and Not Perforated |
50≤H≤250 |
330≤A≤1000 |
1.0~1.4 |
≥100 |
≥120 |
≥20 |
Smooth and Perforated |
50≤H≤250 |
330≤A≤1000 |
1.0~1.4 |
≥100 |
≥120 |
≥20 |
Textured and Not Perforated |
50≤H≤250 |
330≤A≤1000 |
1.5~1.7 |
≥100 |
≥120 |
≥20 |
Textured and Perforated |
50≤H≤250 |
330≤A≤1000 |
1.5~1.7 |
≥100 |
≥120 |
≥20 |
|
Remarks: 1. This is a basic technical specification. 2. All of the technical indexes can be reached according to the customers' demand, and the other special standards will be carried out by agreement or contact.
| ||||||
Application

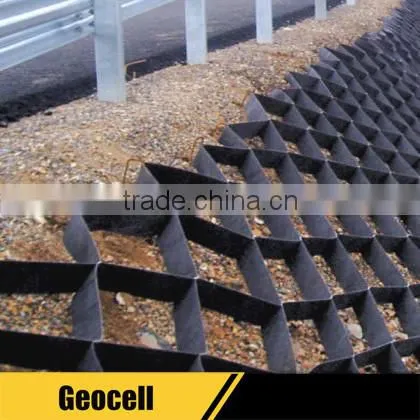

Slope protection
Storage and Shipping
