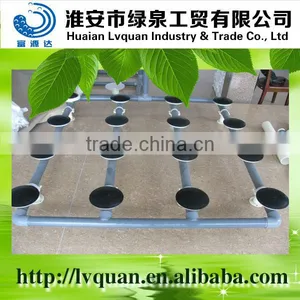

Fine bubble disc diffuser in waste water treatment pond
The fine bubble disc diffuser was developed specifically for releasing 0.8-2mm
fine bubbles in the wastewater treatment plant.
All materials were selected for their ability to withstand the effects of chemical and bio-chemical agents,
wastewater tanks. The diffuser can be placed in an evenly distributed grid system at the bottom of an entire aeration tank.
Air can then easily pass through the orifice and integrated non-return valve into the wastewater.
Advantage:
1. High strength environmentally friendly materials imported linear polyethylene plus imports pigments and a unique additive made, not fade, beautiful and durable
2. Water Horse Hollow irrigation, with elastic buffer can absorb strong impact force, reduce traffic accidents; combined, the overall affordability of a stronger, more stable
3. Bright colors, bulky and clear route instructions
4. Move quick and easy installation, no machinery, cost savings, there is no damage to the road
5. Can be done with the road camber adjustment, flexible and convenient
6. Can be yellow flashing warning device or attach other facilities, such as billboards, signs or fences, etc., play a different role and effects
7, Fit in any road, fork, toll stations and other places
Feature:
1, the diaphragm is fully imported material (EPDM)
2, low resistance membrane easily opened
3, aeration service area
4, the sludge off smooth
5, there are plenty of extended aeration membrane volume
6, mechanized assembly peripheral sealing performance
7, the overall strength of the strong and long service life
Data
| Specification | DN-200 |
DN-260 |
DN-300 |
Specification (Disc Diameter) |
200 mm |
260 mm |
300 mm |
Ventilation |
1.5-3 m3/h |
2-5 m3/h |
2-8 m3/h |
Service area |
0.3-0.65 m2/h |
0.4-0.8 m2/h |
05-1.0 m2 h |
Oxygen utilization |
22-40% |
31-59% |
35-59% |
Oxygenation capacity |
0.13-0.4 kg/h |
0.21-0.4 kg/h |
0.2-0.4 kg/h |
Submerged depth |
4-8 m |
4-8 m |
4-8 m |
Air supply qty. (Depth 4m) |
2 m3/h |
3 m3/h |
4.25 m3/h |
