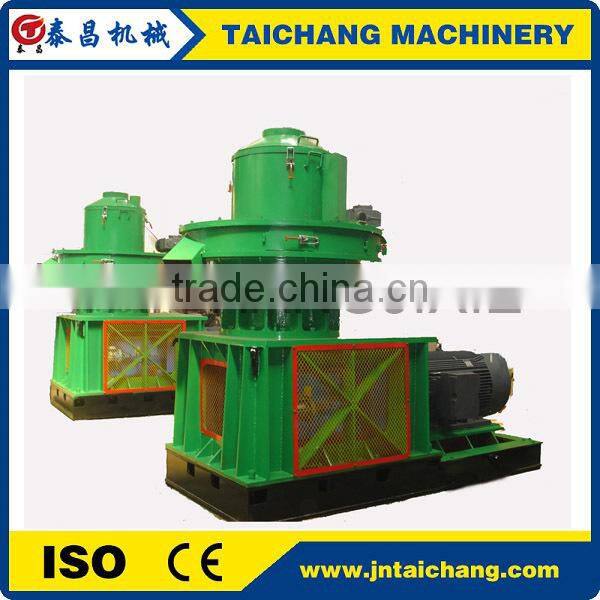

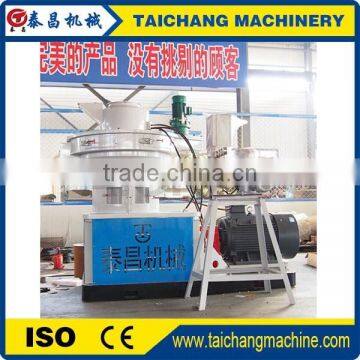

wood pellet machine / coffee shell pellet machine / palm pellet machine TCZL850 woodworking machine farm machinery
Main material of wood pellet machine:
wood,straw,cotton stalk, rice husk, peanut shell, bamboo ,empty fruit branch,
waster paper, and Palm fiber etc.
Requirements for raw materials:
Size:1-2mm(All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet.If too high, or too low, you need to dry or moisture them first.
Main Features of wood pellets:
1.Pellets is green and low carbon energy fuel is renewable, environmental protection
2.Pellet is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source.
3.Density 0.9-1.6g/cm3,easy store and transportation ,3500-5500 Kilocalorie.
Features of wood pellet machine:
1.vertical feed and directly in place, Good heat dissipation.
2.Die static, the roller rotating, and material centrifugal, evenly around.
3.Double lays die, up and down dual use, cost efficiency, and also dual-uses, high energy saving, 1-2 workers are enough to operate all the process.
4.Ring die, vertical structure, in favor of the thermal cooling of granulation chamber
5.Separate discharge device, ensure the forming rate of pellets.
6.24 hours working with automatic lubrication.
Technical data of ring die wood pellet machine:
Model |
Power(kw) |
Capacity (T/h) |
Product spec (mm) |
Weight (T) |
Dimension (mm) |
TCZL560 |
90+1.5+0.37+1.5 |
1-1.5 |
Φ4-12 |
6.1 |
2600x1300x2300 |
TCZL850 |
220+3+0.37(0.55)+2.2 |
2-3 |
Φ4-12 |
14.6 |
3400x1500x3200 |
Operating Instructions of Ring Die Pellet Machine:
1.Have a better understanding of the pellet mill structure and performance, and strictly follow the operation instructions and professional technical personnels’ guidance.
2. Pay attention to regular maintenance and repair so as to extend the machine service life.
3. The operator should stay at the working area while pellet mill is under running condition.
4. It’s wise to choose appropriate pellet mill according to different raw materials and capacity requirements.
Main Structure of Machines to produce wood pellet prices :
TCZL850 series Machines to produce wood pellet prices are consisted of :
(1).Huali frequency conversion main motor
(2)Gear box
(3)"Boneng"brand reducer
(4)Bearing Chamber “SKF” bearing
(5)Roller assemble frame
(6)Die matrix
(7)Machine base.
Note: All the mounting surfaces of the Machines to produce wood pellet prices parts are made by machining. It has highassembly precision, good machine performance.
Sandy Bai (Sales Manager)
Jinan Taichang Transmission Machinery Co.,Ltd
ADD: Xusheng Industrial Park, Zhangqiu, Jinan, Shandong Province, China
Mobile: +86-18888342566
MSN: jntaichang001 at
Skype: sandytc001
Email:sales006 AT
Web:
IN ORDER TO provide you the suitable product,please tell me the answers of the following question:
1.what's raw materials?
2.the moisture and size of raw materials?
3.how much production capacity you need? ( h OR d)
4.The shape and size of the final product you prefer?
5.are you product fuel or feed use it?
1.Q:Are you a manufacturer or trading company?
A: we are a manufacturer and we have own factory
2.Q:Why do we choose your company?
A:we have more 10 years of experiences in biomass pellet machine,and can provide high quality product and competive price and good service.
3.Q:where is your factory located ?how can i visit here?
A:our factory is located in Xusheng Industrail Park ,Zhangqiu ,Jinan,Shandong province,china
4.Q:What certificates we have?
A:Our company has passed ISO9001-2008 quality certification, CE safety and quality certification of EU.
5.Q:this is my first time import ,how can i trust your company and ensure to get the goods if i order from you?
A:we have alibaba legitimate certification company(VIP),we are manufacturer,and you can visit our factory.
1.Jinan Taichang Transmission Machinery Co.,Ltd located in Shandong province,China. Our factory is a professional manufacturer of biomass pellet machine for agriculture, forest, pasturage, fishery for many years.
2.Our company has passed ISO9001-2008 quality certification , CE certification.
3. We have a perfect after-sales service system and provide customers with prompt and through service. nmmmm
