CE Biomass wood/feed ring-die pellet mill suitable for large farms pellet Machine Price from Taichang with capacity 1.5-2t/h (008618888342366)
Description of biomass wood pellet machine:

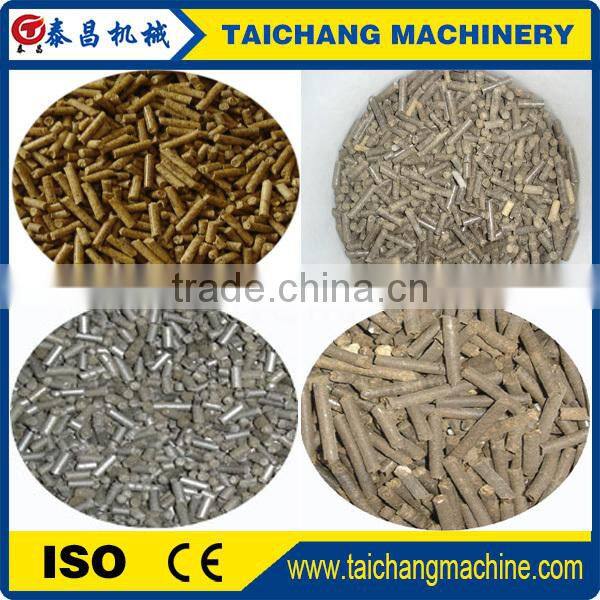

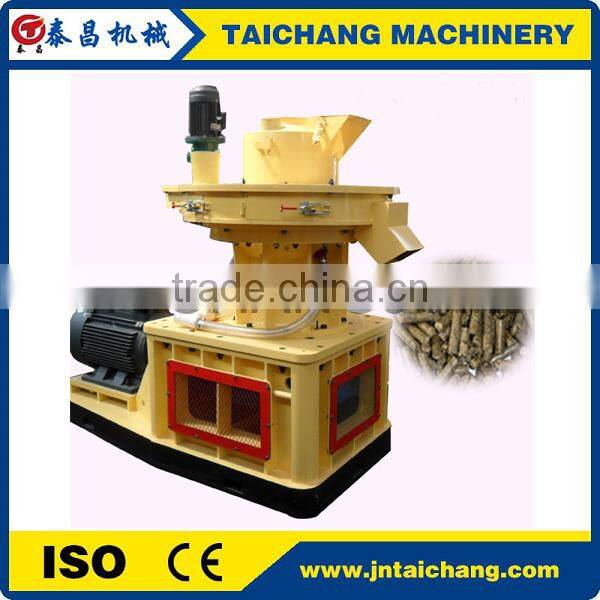

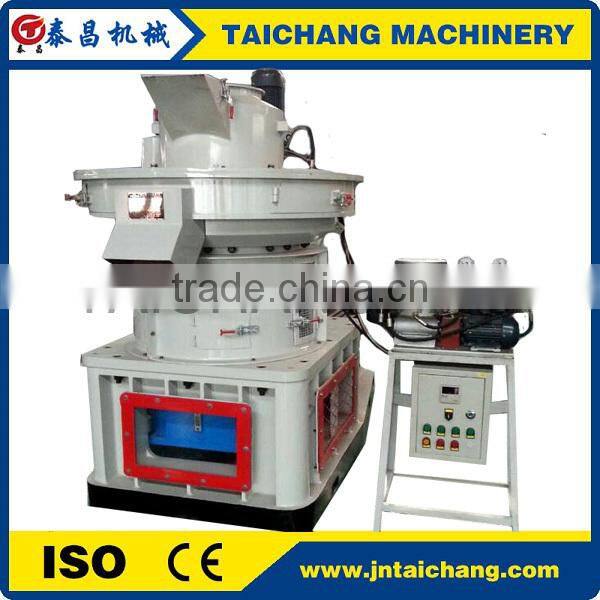

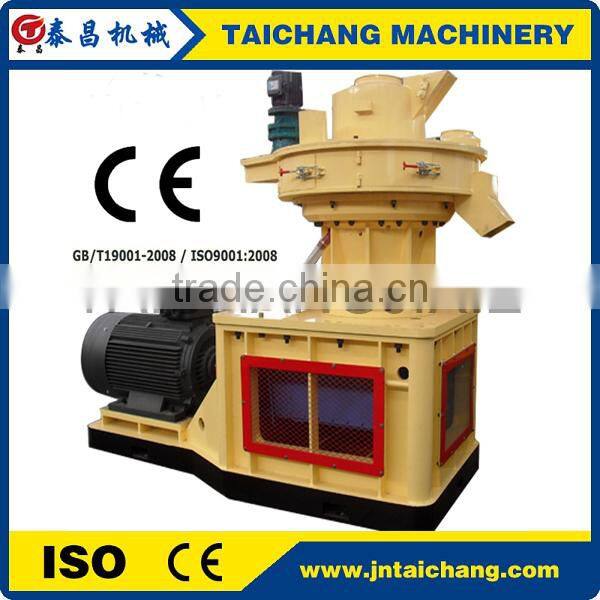

wood pellet machine can produce 4-12mm pellets, last pellet length can be adjusted optionally. The wood pellet machine is mainly applicable to difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.Ring die wood pellet mill for processing biomass materials is belt drive design which is the same as following photos.Compared with flat die mills,ring die pellet mills are more suitable in large scale commercial and industrial production.
Advantage points of biomass pelllet mill:
1.Ring die, vertical structure, conducive to the pelletizing room cooling. .

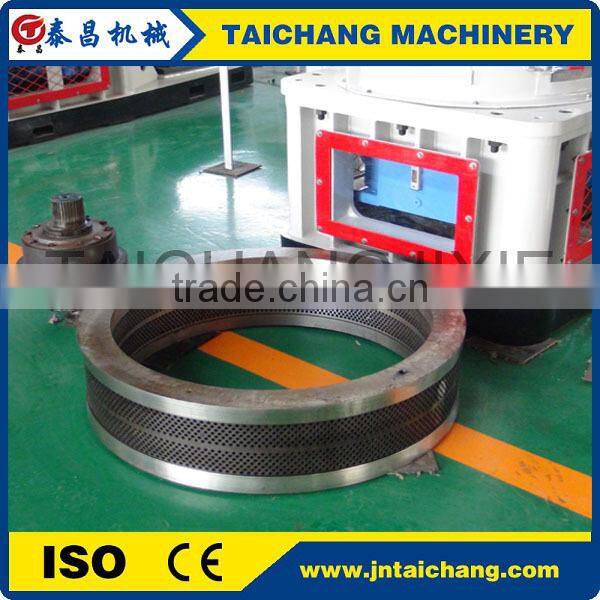

2.The key parts are made of alloy steel to be very strong and malleable. The alloy steel die or stainless steel ring die are made with international advanced equipment for long lifespan and high quality.
3.The particles high hardness,smooth surface internal curing, can improve the digestion and absorption of mutrients.
4 It is widely used to make pellets from light substance, such as wood chips, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
5.The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
6.Die static, rollers rotating, materials centrifugal, evenly distributed around.
7.Double-layer dies, up and down dual use, high capacity and energy saving.
8.Independent output device, ensure formation rate of pellets.

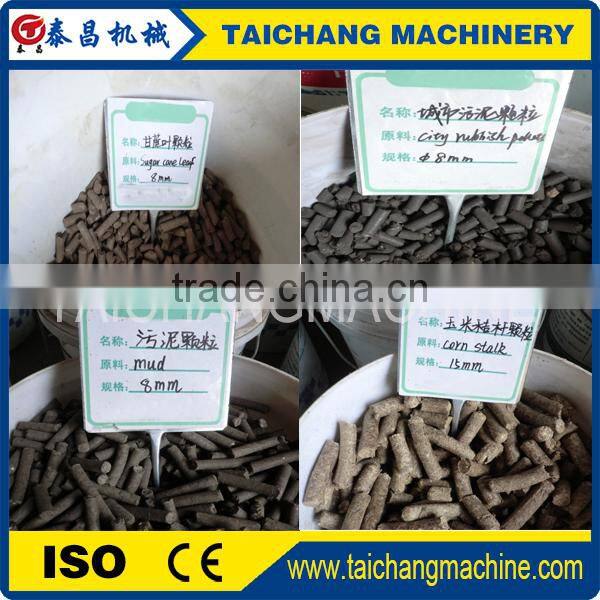

Raw Materials for Biomass Pellet Machine:
The raw material for this machine can be the food grain like corn, wheat and the crushed waste from agriculture for example, corn straw, groundnut shell, grass, wheat bran, sawdust, and animal manure and so on,
Working principle of the biomass pellet machine:
TCZL series machine between the mould and roller extrusion die and friction interaction principle,make the molding material to be acquired . Material need not add any additives or binder in the machining process, Straw materials contain a certain number of cellulose and lignin, The lignin is the material structure of the monomer, belongs to the benzene propane type polymer compounds. Can strengthen the cell wall, together with the role of the cellulose, Lignin belong to amorphous,does not dissolve in any solvent at room temperature, without melting point, but there have softening point. When the temperature reaches a certain, the lignin to soften the cohesive force, and under certain pressure, make its cellulose molecular mass displacement andextension,

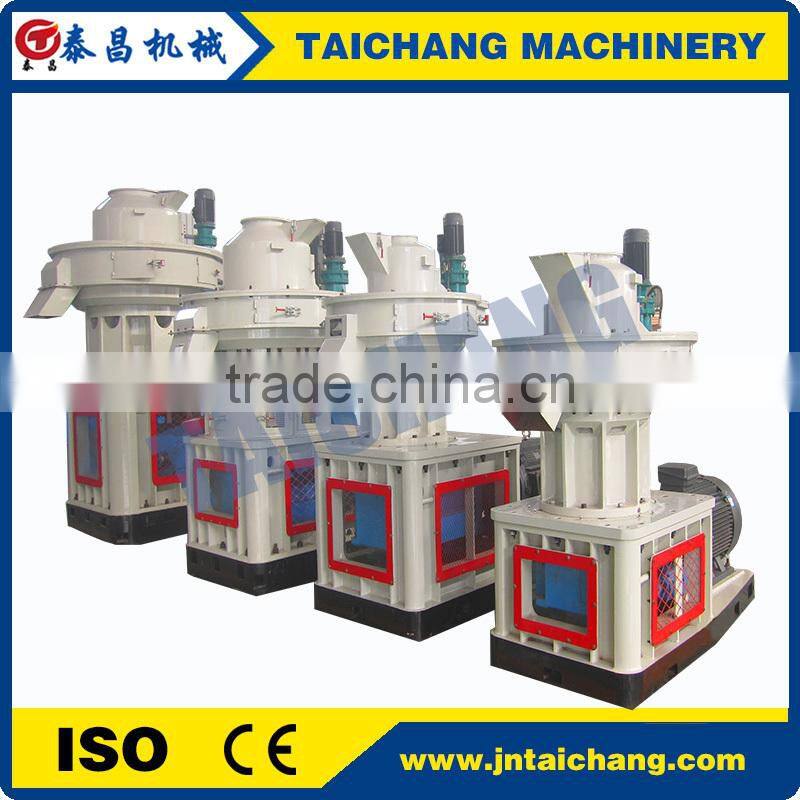

Biomass wood Pellet Machine diameter:
| Modle | Power(KW) | Capacity(T) | Weight(T) | Diameter(mm) |
| TCZL560 | 90 | 1-1.5 | 6 | 1850*1050*1800 |
| TCZL650 | 160 | 1.5-2 | 10 | 2150*1180*1950 |
| TCZL850 | 220 | 2.5-3 | 14 | 2430*1380*2100 |
| TCZL960 | 315 | 3-4.5 | 18 | 2800*1500*2500 |
1. We treat customers as gods, and provide considerate services from shipment to maintenance, including professional free training, guidance, installation,and debugging.
2. After sale, we provide one year's warranty. we will help to solve any mechanical problems in time. Also engineers are available to service overseas
In order to offer you the reasonable machines,we need more details as followings:
1.The raw materials and the size you used.
2. Moisture content of the raw materials or give me the picture of raw materials.
3.The size of pellet you needed.
4.The voltage frequency in your country.
5.The output you needed in one hour.
