Specifications
YQF250 series shallow air floatation1 durable
2 thicker wall
3 stainless steel

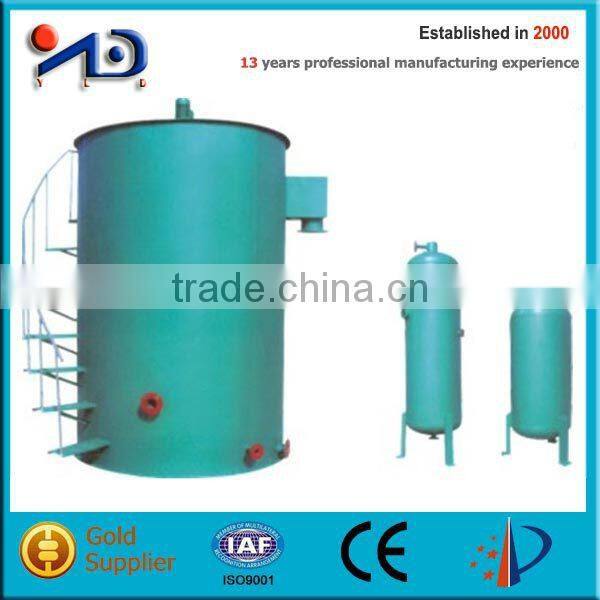

YQF250 series shallow air floatation
Ⅰ usage:
Compared with the old type air-floatation, the new shallow air floatation is dynamic inlet water and static outlet water, makes the SS floating perpendicular to water surface under relative static situation. The waste water treatment just needs 2-3min in purifying poor.
There are many local manufactory using this air floatation, all the emission is standard, and with medical designed by ourselves, the cost is 1/3 reduced.
Ⅱ work principle:
It changes the static state to enter the water - dynamic water leakage for dynamic to enter the water - static state water leakage,cause suspension vertical to flat in the relatively static environment on the water surface.
Ⅲ equipment characteristic:
1 the water only need to stay in the pond for 2-3 min.
2 high efficient
specifications:
Model |
YQF100 |
YQF150 |
YQ200 |
YQF250 |
YQF300 |
YQF400 |
YQF450 |
YQF500 |
YQF600 |
Pool Diameter mm |
6000 |
7000 |
8000 |
9000 |
10000 |
11000 |
12000 |
13000 |
14000 |
Capacity m3/hr |
100 |
150 |
200 |
250 |
300 |
400 |
450 |
500 |
600 |
Main Equip power Kw |
3.3 |
3.3 |
3.3 |
3.3 |
5.2 |
6.2 |
6.2 |
6.2 |
6.2 |
Load ton |
25 |
35 |
40 |
45 |
57 |
68 |
81 |
81 |
110 |
Dissolved air system power Kw |
17 |
21 |
23.5 |
23.5 |
31.5 |
45 |
45 |
45 |
46.5 |
standard wooden package:
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
about our company:
Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993 covering an area of 30,000 square meters. It is the high technology factory combined with design, development, production and technical service and leads the papermaking equipment and environmental protection equipment industry in China.
Main products: Toilet paper making machine, cardboard paper making machine, corrugated paper making machine, craft papermaking machine, environmental protection equipment, daily and city waste water and daily garbage treatment equipment, industry waste water and garbage treatment equipment, paper making, printing, starch, medical and mine industry waste water treatment equipment, etc.
Yonglida has operated several papermaking system and environment protection project domestic and foreign, including Russia, Egypt middle east, etc. We can also make the proper project plan as customer’s requirement.
Welcome to visit our factory, hope we could have a long cooperation relationship and business win win.
if you have any questions pleas contact me soon.
