Specifications
the YRQ-500 gas floats machine1 durable
2 thicker wall
3 stainless steel

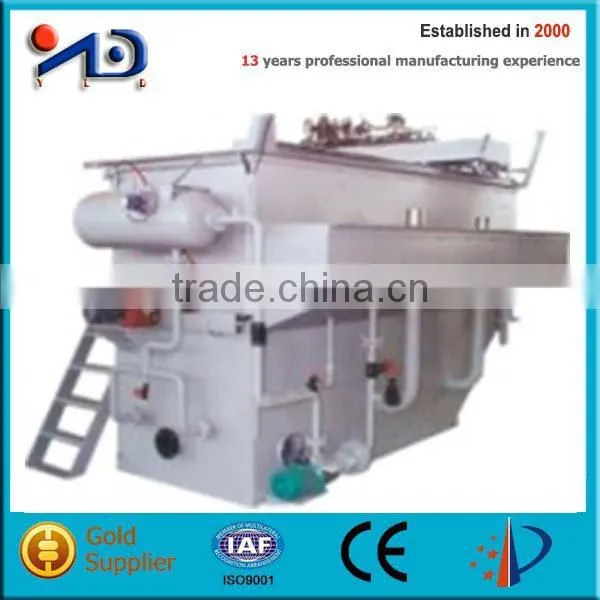

the YRQ-500 gas floats machine
Ⅰ usage:
The new design of YRQ high efficiency the gas floats equipment system is basic on old type, it is suitable for kinds of waste water, special for oil (lipid).
Ⅱ work principle:
It is usually to see oil(lipid) in waste water, main is petro or lipid and SS.
The normal treatment process is: separation/oil-eliminated, coagulation precipitate/air-floatation, and filtration, auxiliary with technology of scale inhibition, corrosion relief, sterilize, film treatment etc. As the pre-treatment of filter, it is better than precipitate.
Ⅲ equipment characteristic:
1, It is unity construction, combined with reactor, poor-body, dissolved-air tank, dissolved air pump, saves the space.
2, Pipe type mixture reaction technique, dissolved-air water gets into the reactor directly, together with the reaction of micro-bubble, the air-floatation substance grows big quickly, more stable, saves the medical.
3, Solid-liquid separated completely very soon-5-10min.
4, Advanced dissolved-air and air-water equilibrium control system.
5, Special dissolved-air releaser, micro-air bubble under control, no block.
6, Auto controlling.
7, Less power consumption, lower cost and easier operation.
specifications:
Model |
YRQ-20 |
YRQ-50 |
YRQ-100 |
YRQ-150 |
YRQ-200 |
YRQ-250 |
YRQ-300 |
YRQ-350 |
YRQ-400 |
YRQ-450 |
YRQ-500 |
Capacity |
20 |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
Size mm |
1990x1000 x2200 |
2490x2000 x4400 |
3450x3957 x4400 |
4450x3957 x4400 |
5450x3957 x4400 |
6450x3957 x4400 |
7900x3957 x4400 |
8900x3957 x4400 |
10900x3957 x4400 |
11900x3957 x4400 |
12910x3957 x4400 |
standard wooden package:
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing the most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
about our company:
Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993 covering an area of 30,000 square meters. It is the high technology factory combined with design, development, production and technical service and leads the papermaking equipment and environmental protection equipment industry in China.
Main products: Toilet paper making machine, cardboard paper making machine, corrugated paper making machine, craft papermaking machine, environmental protection equipment, daily and city waste water and daily garbage treatment equipment, industry waste water and garbage treatment equipment, paper making, printing, starch, medical and mine industry waste water treatment equipment, etc.
Yonglida has operated several papermaking system and environment protection project domestic and foreign, including Russia, Egypt middle east, etc. We can also make the proper project plan as customer’s requirement.
Welcome to visit our factory, hope we could have a long cooperation relationship and business win win.
if you have any questions pleas contact me soon.
