Toilet Paper Production Line Rewinder
- 1000 Unit / Units per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Product Type: | Toilet Tissue | Processing Type: | Other, whole production line |
Place of Origin: | Shandong, China | Brand Name: | Yonglida | Model Number: | Yonglida |
Voltage: | optional | Power(W): | optional | Dimension(L*W*H): | optional |
Weight: | optional | Certification: | Other, ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
in container and as customer's requirement.
Product Description
Specifications
Toilet Paper Production Line RewinderHigh Quality all kinds of paper making machine for paper manufactory.
Toilet Paper Production Line Rewinder
Configuration
1.International advanced PLC computer programming technology.
2.Frequency control, electronic brake and touch-screen interface operation system.
3.Coreless rewinding system.
4.Automatic trimming, adhesive, sealing, punching, auto feeding, removing shaft and squashing are integrated in one.
Main Technical Data
Name of machine | toilet paper rewinder | |||||
Model | HY-1092 | HY-1575 | HY-1880 | HY-2400 | HY-2600 | HY-2800 |
Width of raw paper | 1300mm | 1800mm | 2200mm | 2350mm | 2550mm | 2750mm |
Outer diameter of raw paper | 1100mm(adjustable) | |||||
Diameter of finished products | 60-120mm(customizable) | |||||
Inner diameter of core(raw paper ) | 76.5mm(adjustable) | |||||
Programmable controller | PLC computer programming | |||||
Production speed | 150-200m/min | |||||
Bottom embossing roller | Felt roller, wool roller, rubber roller, etc.(customizable) | |||||
Embossment | Single embossment, double embossment, steel to steel embossment, etc.(customizable) | |||||
Mechanical drive | Continuously variable transmission(CVT),main engine is without belt drive, ensuring accuracy pitch and length. | |||||
Unwinding stand | 1-3 layer | |||||
Braking system | Electronic brake, pneumatic control. | |||||
Main power | 3.5-11kw | |||||
Overall dimension | 6200mm*3200mm*1800mm(vary with different models) | |||||
Weight | 3000-9000kg |
1. Advanced PLC computer programming technology is applied to full automatic toilet paper rewinding machine. The winding
profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from
the rolls after long time storage.
2. It is equipped with frequency control, electronic brake(EABS), and touch-screen interface operation system. Automatic

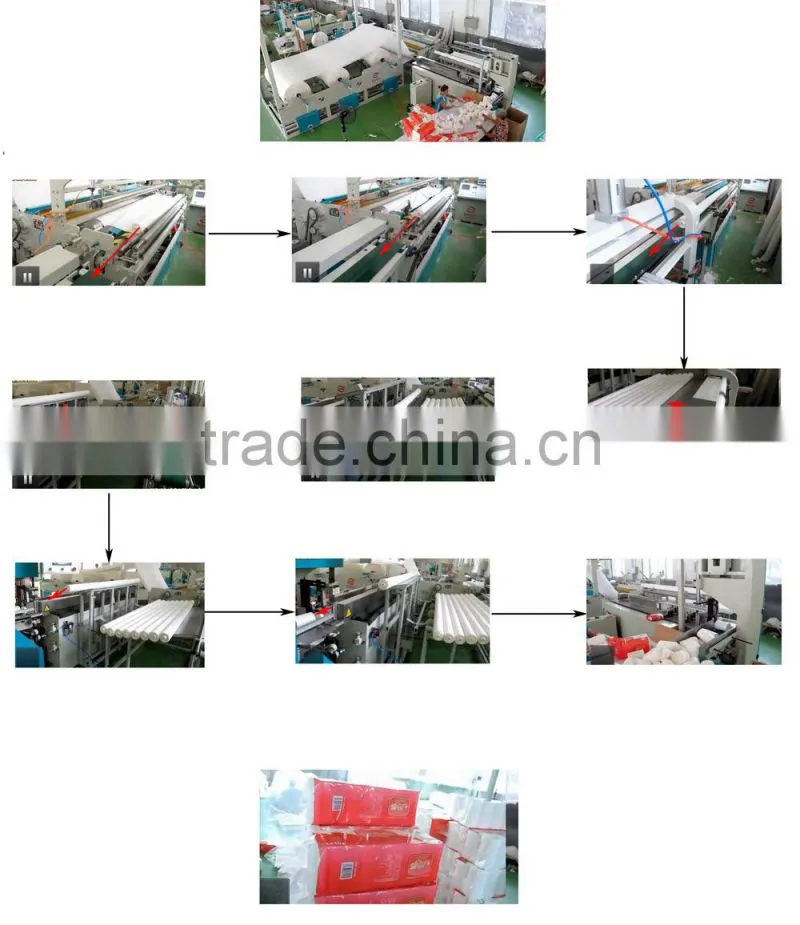

trimming, gluing, sealing, punching, auto feeding, removing shaft and squashing are integrated in one. Ensuring lower
consumption when the roll paper is feed into band-sawing machine. So products are of high grade and high efficiency.
3. It is equipped with coreless rewinding system, reducing labor costs, making products more beautiful.
4. With high precision screwy perforation knife. With 4 perforation blades to make low noise and high definition when perforating.
The perforating pitch is controlled by gearbox.
5. Automatic detection of paper break and wrap up, to guarantee the high quality of the finished rolls even in the high speed
operation.
6. Coreless rewinding system has changed traditional method to take out the core to make high quality solid coreless roller.
Reducing the manpower.
7. With three-layer horizontal unwinding stand, pneumatic feeding system. Each roll of raw paper has its individual control
unit for tension adjusting device.
8. The web can be threaded on the machine by the two jog buttons, it is more safe and easier to feed the web.
What we can provide
Paper making process:
--Pulping System
--Screening System
--Conveying and Bale Breaking System
--Pulp Refining Equipment
--Impurity Cleaning Equipment
--Stock Agitator Conveying Equipment
--Pulp Thickening Equipment
Paper Making Production Line (paper MPL):
--All kinds of raw paper pulp MPL
--Fluting paper pulp MPL
--Automatic corrugated box/paper MPL
--Coated White Board paper MPL
--Honeycomb paper MPL
--Testliner paper MPL
--Paper plate MPL
--Tissue paper MPL
--Toilet paper MPL
--Kraft paper MPL
--Boxboard paper MPL
--Paper coating MPL
--Napkin paper MPL
--OCC line
Factory
Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993
coveringan area of 30,000 square meters. It is the high technology factory combined with design, development, production and
technical service and leads the papermaking equipment and environmental protection equipment industry in China.
1, Least Waste
Yonglida | Average |
1.2/1.3 tons raw material to 1 ton finished paper | 1.5 tons raw material to 1 ton finished paper |
pulp consistence reach 15-17% | Usually 13% |
2, Lowest Cost
Our design of production line tries to save all cost, raw material can be every rough material, but finished paper also can be top
class.
3, Lowest Consumptions
Electric and water are the most consumptions in paper making production line, our design is with the lowest electric and water,
assure the customer’s most profit.
4, Best quality of every equip
Iron parts thickness
The material quality relates the machine using life, our iron parts are most strong and stable, can be used more than most
other factory machine.
Delivery
PackagingDetail: | toilet paper rewinder is in full 20FT container, or wooden case, or as clients' special requirements. |
Delivery Detail: | paper rewinder is within 20-25 days after receiving deposit |
What we can service
1.Pre-sales Service
--General technical advice and business consultation.
--Suitable scheme and equipment as order.
--Designing as special requirement.
--Complete plan with technology and production line equipment.
2. After-sales Service
--One year warranty.
--Inspecting equipments in every working procedure.
--Assisting foundation construction.
--Dispatching engineer to install and debug.
--Training the first-line worker on site;
--Visiting clients and solving production problem.
--Life-long maintenance service.
--Technical exchanging.
Please supply the information below:
--what is the producing capacity demanded?
--what is raw material?
--what is the outlet paper demanded?
Then we design the paper mill project plan.
Susan Na
Skype: susan198049
Tel: 13964638868
Company Profile
Established in 2001, our company is a professional manufacturer and exporter that is concerned with the design, development and production of paper machines and Environmental protection equipment. We are located in Zhucheng, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 100 employees, boast an annual sales figure that exceeds USD30 million and currently export 38% of our products to worldwide places. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Southeast Asia, Africa, Oceania, the Middle East and East Asia.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
