Specifications
1.paper slitter machine2.high efficiency
3.high production capacity
4.good quality
paper slitter machine
one sample:

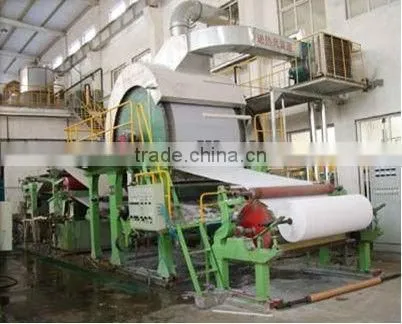

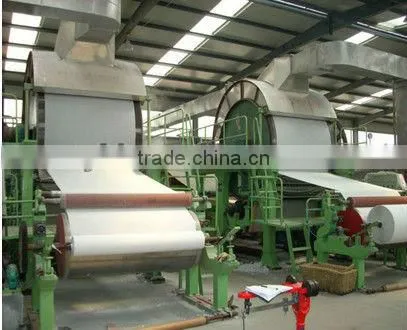

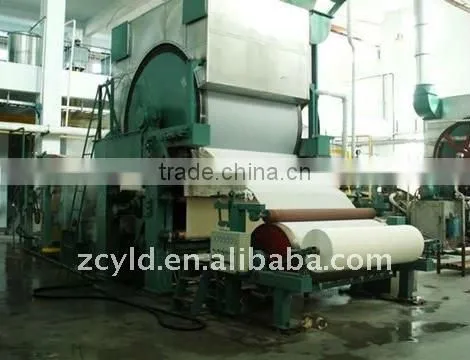

787mm 0.8-1 TPD small model toilet paper machine
I. Technical parameter:
1.output paper :tissue paper
2. raw material: waste paper
3.capacity: 0.8-1ton per day
4. net paper width:900mm
5.output paper weight: 13-40g/m2
6. rail gauge:1300mm
ing speed: 40-100m/min
8. drive way: Alternating current, speed control, section drive
structure and characteristics:
1. cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set, Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
2.dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.
3.paper cutting section: 787mm slitting machine1set .
4.drive and control section: Alternating current , speed control , section drive
II.
Type |
ZY1092 |
ZY1575 |
ZY1760 |
ZY2362 |
|
Designed speed(m/min) |
250 |
250 |
250 |
250 |
|
Lifting paper speed(m/min) |
150-200 |
150-200 |
150-200 |
150-200 |
|
Lifting ration(Ω/m2) |
13-30 |
13-30 |
13-30 |
13-30 |
|
Capacity of production(t/d) |
3-4 |
4-5 |
5-6 |
6-8 |
|
Firing urn dimension(mm) |
Ø2500×1450 |
Ø2500×1950 |
Ø2500×2100 |
Ø2500×2500 |
|
Net cage diameter(mm) |
Ø1524(60″) |
Ø1524(60″) |
Ø1524(60″) |
Ø1524(60″) |
|
|
Main motor power (KW) |
Electromagnetic timing |
YCT280-4A/30 |
YCT315-4A/37 |
YCT315-4B/45 |
YCT355-4A/55 |
Frequency conversion |
Y225M-6/30 |
Y250/-6/37 |
Y280S-6/45 |
Y280M-6/55 |
|
|
Rolling power (KW) |
Electromagnetic timing |
YCT132-4B/1.5 |
YCT160-4A/2.2 |
YCT160-4A/2.2 |
YCT180-4A/4 |
Frequency conversion |
Y90L-4/1.5 |
Y100L1-4/2.2 |
Y100L1-4/2.2 |
Y122M-4/4 |
|
Air(gas) station working pressure(Mpa) |
0.7 |
0.7 |
0.7 |
0.7 |
|
Main motor gauge(mm) |
1900 |
2400 |
2600 |
3400 |
|
|
Face to face dimension (length*width*height) |
12680×5570×4580 |
13180×5770×5080 |
13180×6570×4580 |
12680×5070×5080 |
|
Equipment weight(t) |
35 |
43 |
47 |
64
|
|
|
|
|
|
1, Least Waste
Yonglida |
Average |
1.2/1.3 tons raw material to 1 ton finished paper |
1.5 tons raw material to 1 ton finished paper |
pulp consistence reach 15-17% |
Usually 13% |
2, Lowest Cost
Our design of production line tries to save all cost, raw material can be every rough material, but finished paper also can be top class.
3, Lowest Consumptions
Electric and water are the most consumptions in paper making production line, our design is with the lowest electric and water, assure the customer’s most profit.
4, Best quality of every equip
Iron parts thickness
The material quality relates the machine using life, our iron parts are most strong and stable, can be used more than most other factory machine.
What we can service
1.Pre-sales Service
--General technical advice and business consultation.
--Suitable scheme and equipment as order.
--Designing as special requirement.
--Complete plan with technology and production line equipment.
2. After-sales Service
--One year warranty.
--Inspecting equipments in every working procedure.
--Assisting foundation construction.
--Dispatching engineer to install and debug.
--Training the first-line worker on site;
--Visiting clients and solving production problem.
--Life-long maintenance service.
--Technical exchanging.
|
|
Zhucheng Yonglida Machinery Limited Company is located in Zhucheng city, Shandong province, China and founded in 1993 covering an area of 30,000 square meters. It is the high technology factory combined with design, development, production and technical service and leads the papermaking equipment and environmental protection equipment industry in China.
Main products: Toilet paper making machine, cardboard paper making machine, corrugated paper making machine, craft papermaking machine, environmental protection equipment, daily and city waste water and daily garbage treatment equipment, industry waste water and garbage treatment equipment, paper making, printing, starch, medical and mine industry waste water treatment equipment, etc.
Yonglida has operated several papermaking system and environment protection project domestic and foreign, including Russia, Egypt middle east, etc. We can also make the proper project plan as customer’s requirement.
Welcome to visit our factory, hope we could have a long cooperation relationship and business win win.
