Specifications
2014 best selling in China horizontal packaging machine1, New design
2, Fully automatic
3, CE,ISO

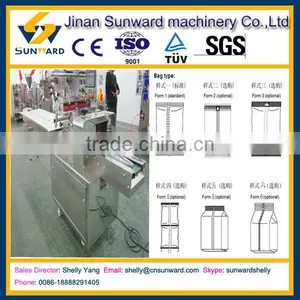

2014 best selling in China horizontal packaging machine
horizontal packaging machine Features
1.Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2.Human-machine interface, convenient and quick parameter settings.
3.Self diagnosis failure function, failure displayed clearly.
4.High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5.Separated PID control system for temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7.Simple driving system, reliable working, convenient maintenance.
8.All controled by program, convenient for function adjusting and upgrading.
Application of horizontal packaging machine
Apply to the packing of various kinds of items with regular shape in many industries,like food,hardware,
medical products,daily use products,stationary,toys,hotel supplies,electronic products etc.
The advantadge of horizontal packaging machine This horizontal packaging machine can also use the VOLUMETRIC CUP AND MEULTIHEAD ELECTRIC WEIGHER as measuring systerm.
Power of horizontal packaging machine
in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to
customer Local voltage
horizontal packaging machine Capacity
100-150kg/h(TES 65 Extruder), 250-300kg/h(TES70 Extruder),300-500kg/h(TES 85 Extruder),
horizontal packaging machine Technical parameters
| Model | SRK-398 | SRK-520 | SRK-720 |
| width of packing film | Max. 400mm | Max. 520mm | Max. 720mm |
| Thickness of packing film | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm |
| Bag length | 50-300mm | 80-250mm | 100-450mm |
| Bag width | 50-190mm | 100-250mm |
150-350mm |
| Range of measuring | Max.1500mg | Max.2000mg | Max.4000mg |
| Packing speed | 15-90bag/min | 10-70bag/min | 5-40bag/min |
| Voltage | 3.0Kw/220V, 50/60Hz | 3.0Kw/220V, 50/60Hz | 4.0Kw/220V, 50/60Hz |
| Dimension | 1400×970×1700mm | 1430×1200×1700mm | 1780×1350×2000mm |
| Total weight | 400kg | 600kg | 700kg |
What are characteristics of horizontal packaging machine 1. Siemens PLC computer system and Schneider frequency converter, function is more stable, adjustment any parameters not need stop machine. And English and Chinese screen display,operation is simple.
2. It can stock ten dispose, simple to change variety.
3. Sever motor drawing film, position accurately.
4. Temperature independent control system,precision get to±1°C.
5. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6. Packing type diversification, pillow sealing, standing type,punching etc.
7. Bag–making, sealing, packing, print date in one operation.
8. Work circumstance quiet, low noise.

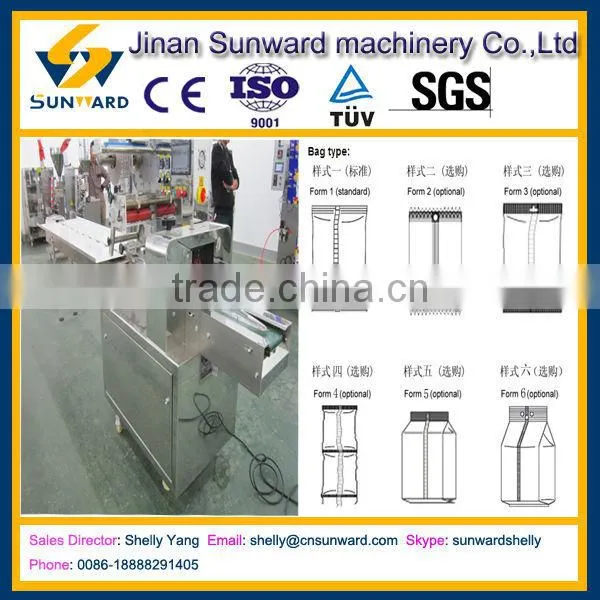

Packing Materials and Bag Sample by horizontal packaging machine Paper/PE, PT/PE, PET/plated AL/PE, PET/PE, BOPP film, and other materials can be heat sealed composited film
horizontal packaging machine Optional Device
horizontal packaging machine Packaging Show
1. Testing Machine before package
2. Package : Inside plastic bag, outside wooden case
Every clients will enjoy our services as follow( horizontal packaging machine ):
Pre-sale service1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing
can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
Our partner around the world( horizontal packaging machine )
Certifications Show( horizontal packaging machine )
Any question about horizontal packaging machine , pls feel free to contact us
