Specifications
High quality automatic packaging machine1, New design
2, Fully automatic
3, CE,ISO
High quality automatic packaging machine
Other serious of packaging machine(pillow packaging machine and
vertical packaging machine with combination weigher )
Click here
I. Pillow packaging machine II.Vertical packagingmachine with combination weigher
packaging machine Application
It is suitable for non-sticky, bulk or granule medicines, foodstuff and seeds, such as granulated juice sugar, coffee, salt, spice, seasons, melon seeds, rice, oatmeal, loose tea leaf, fragile food, tea,desiccant, washing powder, mono sodium glutamate, popcorn, potato chips, plantain chips, and snacks etc.
The Features of packaging machine
1. packaging machine is controlled by a single cam.The heat seal is controlled by
pulling back the horizontal and vertical seals with double poles.The pressure is more even,the
operation more convenient and the maintenance simpler.
2. packaging machine is used to provide heat sealing packaging for various multi-layer composite film,black and white oxygen blocking plastic wrapper,thermophilic digestion,
high pressure ethylene film and other heat sealing materials.
3. The heat sealing temperature is controlled by high precision intelligent microcomputer
instrument.
Three side seal(side seal),back seal and four side seal,etc.are possible.
4. Film laying system is controlled by common laying method and film touch computer.The
machine features photoelectric tracking function and has more complete and beautiful
patterns.In addition, the length used can be set,displayed and adjusted and count alarm
device is provided.
5. Data is imprinted by steel letter print and carbon ribbon print.
Output/Power of packaging machine
in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to
customer Local voltage
packaging machine Capacity
According to the extruder: 100-150kg/h(TES 65 Extruder), 250-300kg/h(TES70 Extruder),300-500kg/h(TES 85 Extruder),
packaging machine Technical parameters
| Model | SRK-398 | SRK-520 | SRK-720 |
| width of packing film | Max. 400mm | Max. 520mm | Max. 720mm |
| Thickness of packing film | 0.04-0.08mm | 0.04-0.08mm | 0.04-0.08mm |
| Bag length | 50-300mm | 80-250mm | 100-450mm |
| Bag width | 50-190mm | 100-250mm |
150-350mm |
| Range of measuring | Max.1500mg | Max.2000mg | Max.4000mg |
| Packing speed | 15-90bag/min | 10-70bag/min | 5-40bag/min |
| Voltage | 3.0Kw/220V, 50/60Hz | 3.0Kw/220V, 50/60Hz | 4.0Kw/220V, 50/60Hz |
| Dimension | 1400×970×1700mm | 1430×1200×1700mm | 1780×1350×2000mm |
| Total weight | 400kg | 600kg | 700kg |
What are advantage of packaging machine
packaging machine adopts modern computer control and screw measurement, this guarantees the accurate filling of minute powder stuff. The machine can automatically complete bag-making, measuring, filling, cutting , counting etc. The Length of bag can be adjusted. The attached accessory can achieve date print, oscillation blanking, easy tearing and other functions.
packaging machine application
Vertical packing machine for falt bag, 3 side sealing, 4 side sealing or back sealing. Weight and size are according to your demand.
Packing Materials and Bag Sample by small packaging machine
Paper/PE, PT/PE, PET/plated AL/PE, PET/PE, BOPP film, and other materials can be heat sealed composited film

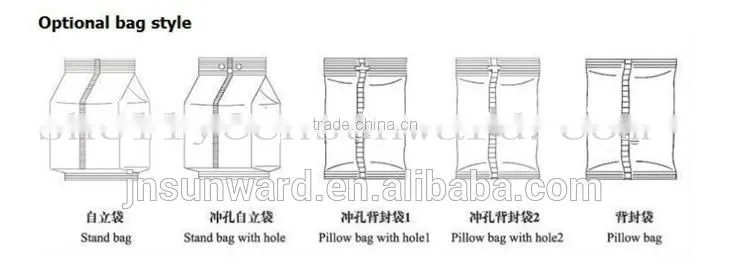

Differen types food packaging (bag style) by packaging machine
packaging macine working principle
packaging machine Packing Show
1. Testing Machine before package
2. Package : Inside plastic bag, outside wooden case
Every clients will enjoy our services as follow(packing machine ):
Pre-sale service1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing
can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
Our partner around the world( packaging machine )
Certifications Show( packaging machine )
Any question about packaging machine , pls feel free to contact us
