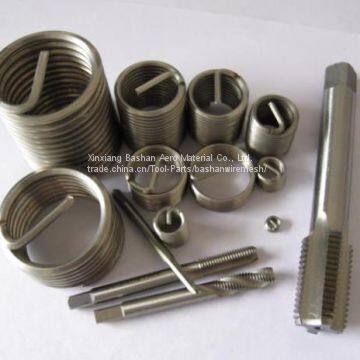

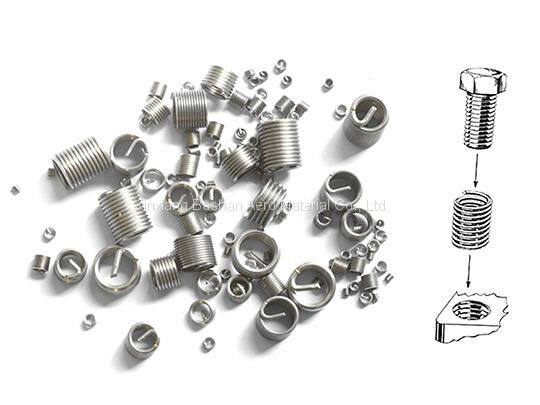

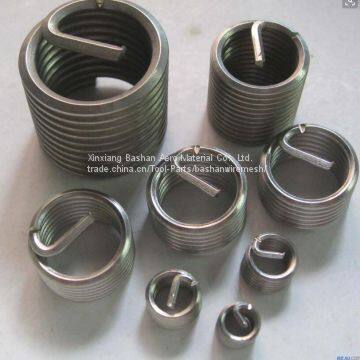

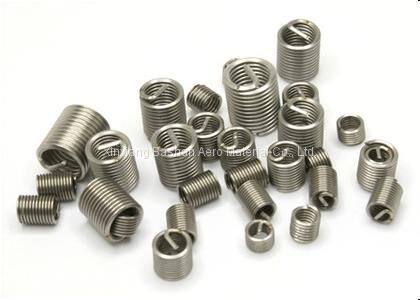

Help CenterHeli-Coil Wire Screw Thread Inserts.
Related Products
-
Superior Quality Silvered Wire Thread InsertsUS$ 0.03 - 0.12MOQ: 500 Pieces -
Durable Silvered UNF Wire Thread InsertsUS$ 0.03 - 0.12MOQ: 500 Pieces
-
Durable UNC Wire Thread InsertsUS$ 0.03 - 0.12MOQ: 500 Pieces
-
High Performance M3 * 0.5wire Thread InsertUS$ 0.03 - 0.12MOQ: 500 Pieces
-
High Durable Wire Thread InsertsUS$ 0.03 - 0.12MOQ: 500 Pieces
Specifications
Passed ISO9001:2008 quality certificate
Passed ISO/TS16949:2009 certificate
Passed GJB9001A-2001 military quality cert
1.Having more than 50 years of experiences in this field, and with background of military technology.
2. We can supply both Inch system and Metric system insert to meet customers' need, according to DIN standard.
3.Passed ISO9001:2008 quality certificate
4.Passed ISO/TS16949:2009 certificate
5.Passed GJB9001A-2001 military quality certificate.
6.Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
7. Supplier of ABB company, Ericsson company, China XD Electric company. Fast company.
8 There are two forms: free-run type and screw-locking type.
9 Thread insert is used for manufacturing high strength, wear-resistant, high duty and vibration-proof in metallic and non-metallic materials such as Al, Mg alloy, plastic to form M and MJ thread.
10.Features:
Abrasion resistant
Corrosion resistant
Heat-stable
Saving material
Increasing the bearing capacity and fatigue resistant of the insert connecting part
1.The description of Heli-Coil Wire Screw Thread Inserts.
d |
p |
xd |
L1 |
w |
Dz |
do |
|
6-40 |
0.635 |
1d |
3.5 |
3.6 |
min |
max |
3.80 |
1.5d |
5.3 |
6.0 |
4.5 |
4.9 |
|||
2d |
7.0 |
8.4 |
|||||
2.5d |
8.8 |
10.8 |
|||||
3d |
9.00 |
13.5 |
|||||
The specifications of Heli-Coil Wire Screw Thread Inserts.
Size |
M6-40*0.635 |
Length |
1d=3.5mm,1.5d=5.3mm,2d=7.0mm,2.5d=8.8mm |
circle |
3.9k,6.3k,8.7k,11k,13.5k |
type |
free-running insert |
material |
stainless 304 |
color |
original/red/black/ |
coating |
plates the titanium/cadmium/galvanization |
standard |
MERTRIC/UNC/UNF/ |
drill diameter |
3.8mm |
install tool size |
M6-40*0.635 |
unload tool size |
M3*0.5 |
break tool size |
M3*0.5 |
