1.Having more than 50 years of experiences in this field, and with background of military technology.
2. We can supply both Inch system and Metric system insert to meet customers' need, according to DIN standard.
3.Passed ISO9001:2008 quality certificate
4.Passed ISO/TS16949:2009 certificate
5.Passed GJB9001A-2001 military quality certificate.
6.Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
7. Supplier of ABB company, Ericsson company, China XD Electric company. Fast company.
8 There are two forms: free-run type and screw-locking type.
9 Thread insert is used for manufacturing high strength, wear-resistant, high duty and vibration-proof in metallic and non-metallic materials such as Al, Mg alloy, plastic to form M and MJ thread.
11. The Advantages:

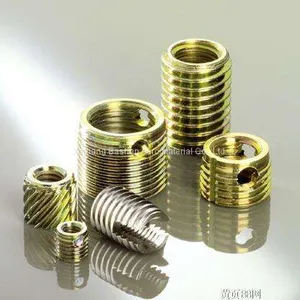

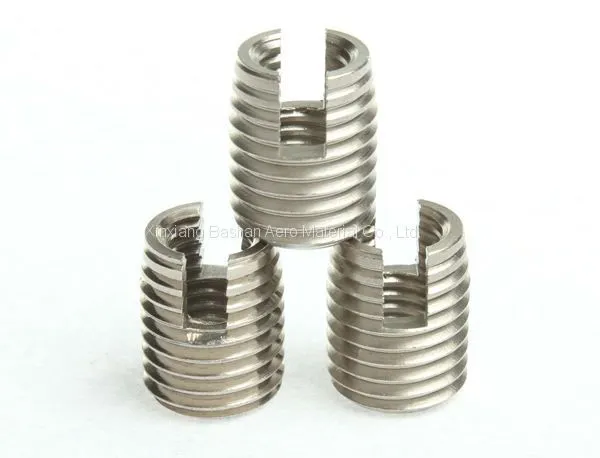

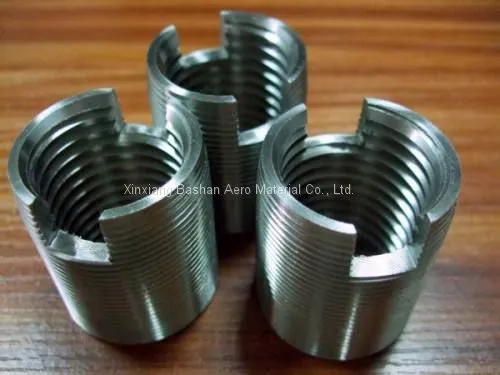

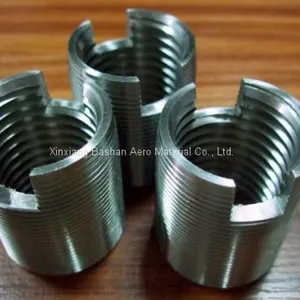

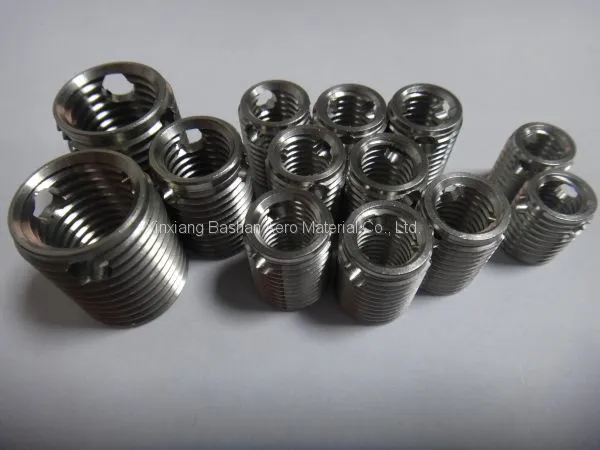

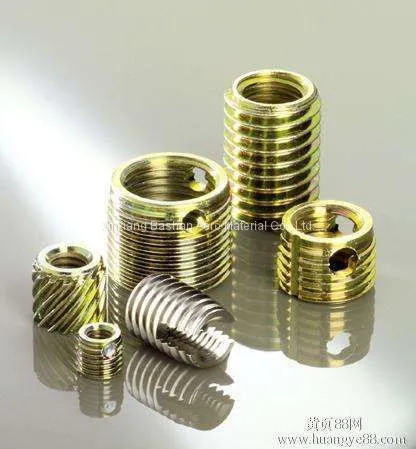

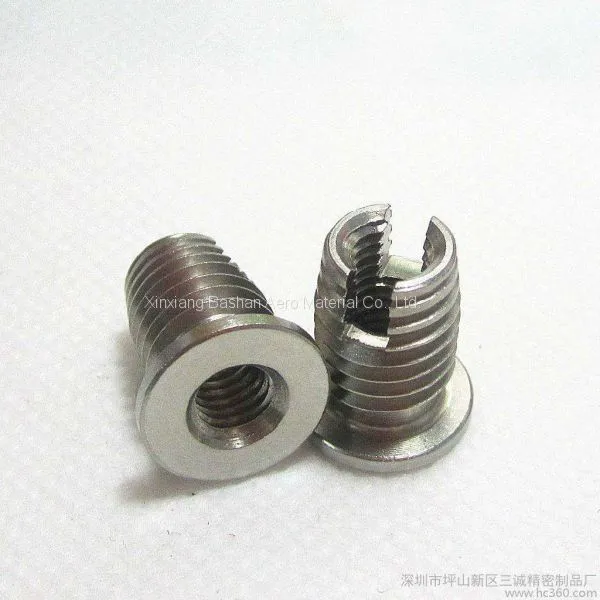

1).Slotted Self-tapping thread inserts inside and outside have tooth pattern, embedded in plastic, aluminum cast iron, copper and other soft materials, can form a higher strength of the internal thread hole.
2.)Slotted Self-tapping thread inserts can also repair the bad inside Thread .
3)Slotted Self-tapping thread inserts sleeve installation without pre-tapping the thread, can be directly used to install the tool to the base metal reserved for a specific hole, for the teeth of the teeth can be used and the same original screw, the economy beautiful, Can increase its thread strength.
4).Slotted Self-tapping thread inserts are now widely used in the automobile industry, rail car industry, shipbuilding industry, household appliances, construction machinery, business machines, electronic products, engineering plastics, high-level combination of furniture and other industries.
12.Material:
|
Material |
Grade |
Temperature Under Used |
Tensile Strength Under Room Temperature |
Surface |
|
|
Stainless Steel |
0Cr18Ni9 |
425°C short time 315°C long time |
>1400Mpa |
No coated Coat lubricant on the surface Coat Cr Coat Ag |
|
|
1Cr18Ni9Ti | |||||
|
1Cr18Ni9 | |||||
|
Alloy |
Inconelx750 Nimonic90 |
750°C short time 550°C long time |
>1400Mpa |
No coated Coat Ag |
|
|
Standard |
GJB 119.1A, GJB 119.2A, GJB119.4A, GJB5109, GJB5110 |
||||
|
HB5513, HB5514, HB5516, HB 6200, HB 6201, HB 6202 JB/T7604.1, JB/T7604.3 | |||||
|
MA3279, MA3280, MA3281, MA3329, MA3300, MA3331 | |||||
|
DIN8140.1. LN 9039.1, LN 9499.1 | |||||
|
NASM122076-122115, NASM124651-124690, NASM21209 | |||||
|
BS7752.1,BS7752.2, AGS 3700-3799, AGS 3600-3699 | |||||
| Size | M6 |
| Length | 1D=3.5mm, 1.5D=5.3mm, 2D=7mm,2.5D=8.8mm, |
| type | Slotted Self-tapping thread inserts |
| material | stainless steel |
| color | original/red/black/ |
| coating | plates the titanium/cadmium/galvanization |
| standard | MERTRIC/UNC/UNF/ |
| drill diameter | 3.8mm |
