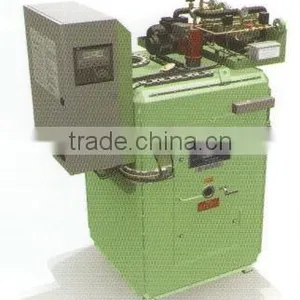

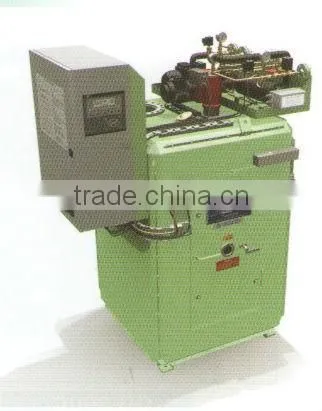

MARINE GARBAGE DISPOSAL OG120C/OG120C SW OF MAXPOWER
Overview:
Fully automatic-high temperature-small dimensions-high capacity for burning both liquid and solid waste; such as: sludge oil, sewage sludge, paper, cardboard, wood, rubber, cloth, oily rags, food waste and hospital waste.
Classification society certificates:
CCS,EC,BV,DNV,USCG,RS,ABS,etc.
Description:
1.Easy operation with manual and automatic modes , remote monitor and control . During the whole waste incineration ,it is automatic controlled by the program with a sensor , and two digital temperature controllers , the temperature in the combustion chamber can be monitored and controlled .
2. For type "C"incinerators , the temperatures are monitored/regulated automatically by the PLC control system .
3. For operating safety , the incinerator is equipped with the protection device . For example , the feeding door will be locked tightly during burning . The cooling system will continue to run until the temperatures is decreased . The power will then be shut off automatically .
4. This type of incinerator complies with the regulation of MARPOL 73/78Convention . Annex V.& VL.as amended IMO Resolution MEPC . 76(40) and got the approval of EC . And also approved by CCS . DNV. LR. ABS. USCG.etc.
Main Technical Paramters:
| Heat Capacity | 180,000 kCal/h(210kw) | |
|
Incinerator Capacity |
lid waste | 144,000kCal/h(IMO class 02) |
| lid waste feeding | 200L/charge | |
| c.waste oil | 22L(21Kg)/h(IMO sludge) | |
| Liquid waste containing max.water less than 50% | ||
|
Diesel Consumption |
10L/h | |
|
Power consumption |
7kw | |
|
Dimension & Weight |
a.OG120C: | 1013*1457*1835mm 1450Kg |
| b.OG120C SW: | 1013*1457*1835mm 1430Kg | |
| Flue gas fan | DN200&114kg | |
| Flue gas damper | DN200&20kg | |
Application field:
It is the main pollution control equipment for on offshore platform , ships and vessels.
