Specifications
quick freezer1. high efficiency and saving cost;
2. advanced design and technology;
3. large capacity and compact struct

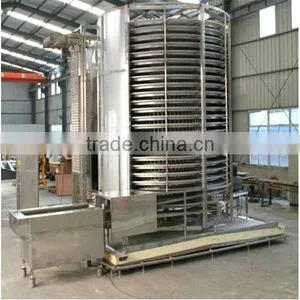

factory directly supply quick freezer for food industry
1. freezing product and temperature
Freezing product: fish, meat, seafood, pastry, poultry, ice cream, etc.
Freezing capacity: 300kg/hour
Freezing method: IQF
Temperature of inlet: 15°C
Temperature of inlet: -18°C
Temperature of evaporation: -42°C
Temperature of inner: -35°C
Freezing time: 15-90 min (adjusted)
2. technical data
Model: SSS-DL300
diameter of tumbler: 2500mm
net height between layers: 200mm
belt width: 500mm
belt length: 185m
inlet length: 2300mm (equipped with cleaner and blower)
outlet length: 1000mm
freezer dimension: 7600*3700*3300mm
power: 11kw
3. main characteristics
1) Conveyor belt is made of special high strength stainless steel 304 which can meet food grade, running smoother and lasting longer;
2) All components can fully meet the hygienic requirements of HACCP;
3) This equipment is in life-long design which is structured as installation not welding, it will be much easier to maintenance;
4) Driving control is made of fine stainless steel;
5) There is unique design of symmetrical and fluent circle wind channel, which can keep cold in inlet and outlet;
6) It is equipped with evaporation in high efficiency which is 30% higher than common evaporation;
7) The bottom is made of stainless steel in 3mm thick,no leak and no risk of burst;
8) Main control components are from Schneider, and control box is made of stainless steel;
9) Reducer is from SEW, which can ensure high efficiency and long life.
4. This machine can be customized as per your requests.
