Single spiral freezer machine with high quality (website:anna002128)

Specifications

Single spiral freezer
1. high efficiency and saving cost;
2. advanced design and technology;
3. large capacity

Single spiral freezer machine













	Model	SSS-DL300	capacity	300kg/hour
	Freezer size	7600*3700*3300mm	Freezing time	8~80 min ( adjusted)
	Temperature of inlet	15°C	Temperature of outlet	-18°C
	Temperature of evaporation	-42°C	Temperature of inner	-35°C
	inlet length	1600mm	outlet length	1000mm
	layer of belt	8 layers	Motor power	9KW
	Rotate drum diameter	Φ2000mm	refrigerant capacity	62kw(-25°C/+35°C)
	net height between layers	100mm	Coolant	R404A
	Width of belt	610 mm	Effective belt width	540 m
	Freezing method	IQF	thickness of panel	100mm
	Freezing product	fish, meat, seafood, pastry, poultry, ice cream, etc.



2. main characteristics

1) Conveyor belt is made of special high strength stainless steel 304 which can meet food grade, running smoother and lasting longer;

2) All components can fully meet the hygienic requirements of HACCP;

3) This equipment is in life-long design which is structured as installation not welding, it will be much easier to maintenance;

4) Driving control is made of fine stainless steel;

5) There is unique design of symmetrical and fluent circle wind channel, which can keep cold in inlet and outlet;

6) It is equipped with evaporation in high efficiency which is 30% higher than common evaporation;

7) The bottom is made of stainless steel in 3mm thick,no leak and no risk of burst;

8) Main control components are from Schneider, and control box is made of stainless steel;

9) Reducer is from SEW, which can ensure high efficiency and long life.





4. This machine can be customized as per your requests.

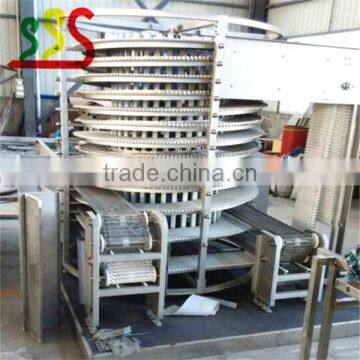

  spiral freezer products pictures:







 spiral freezer  Equipment pictures :
