Specifications
Fish Meal Machine1.Suitable for small capacity requested.
2.Made of fine stainless steel
3.Final meal can be better absorb

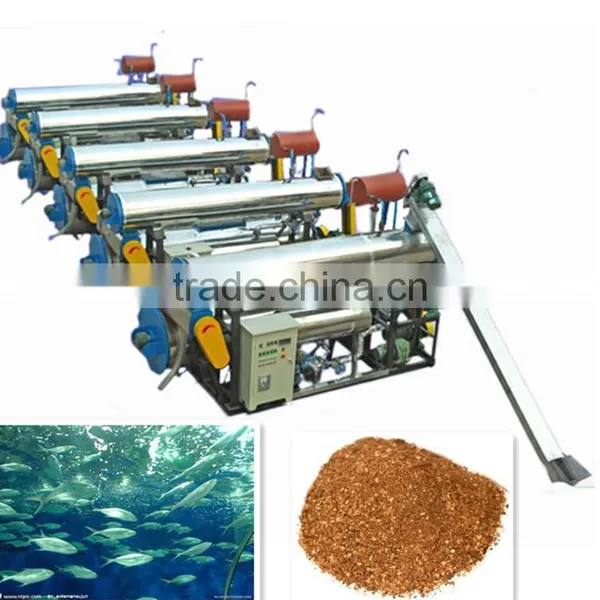

Fish Meal Machine
This small capacity fish meal machine is specially design and manufacture for our customers who want to process leftovers like fish head, fish sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.
Flow chart:
Screw conveyor----Cooking----Pressing----Drying----Packing----fish meal powder for animal feed
Technical Parameters:
| item | description | dimension | details |
| 1 | Screw conveyor | φ170×4000 | equipped with reducer 1 set, made of SUS304 |
| 2 | cooker | φ377×3500 |
·material of outer heat preservation made of SUS430, thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization). |
| 3 | screw press | φ219×1000 |
·outer cover made of SUS430, thickness 0.7mm; · seive mesh applied SUS304; ·driving power: 1.5kw. |
| 4 | dryer | φ820×3500 |
·inner and outer cylinder made of Q235B; ·preservation made of SUS43O, thickness 0.7mm; ·driving power: 4kw, V=30r/min; |
| 5 | heat contacting oil pump | driving power:1.5kw | |
| 6 | electric control box | electric control box 1 set |
