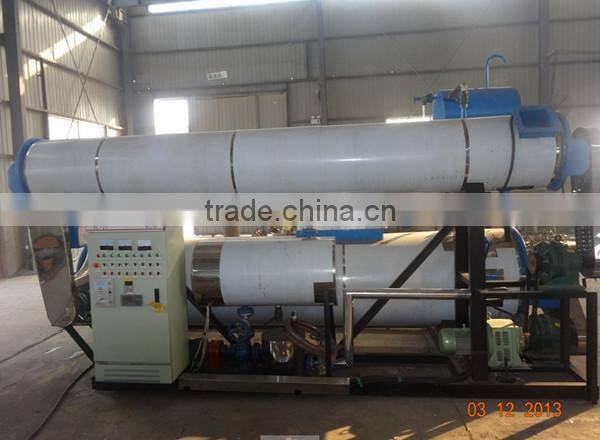

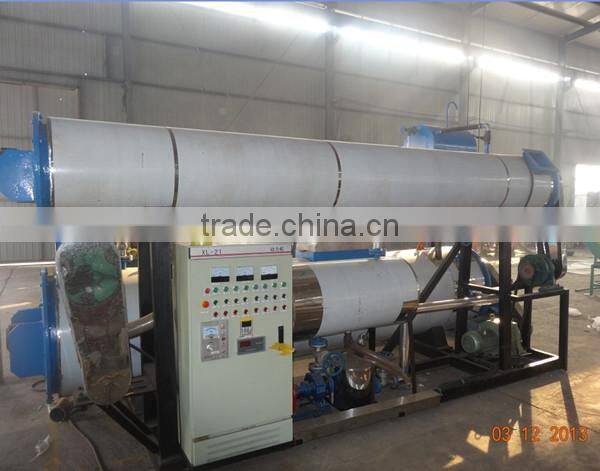

Fish Meal Making Machine With CE Certificate
Specifications
fish meal plant1.Suitable for small capacity requested
2.made of fine stainless steel
3 mini--type
Note: usually the capacity of fish meal is based on fish type and fish quality
| item | description | dimension | details |
| 1 | Screw conveyor | φ170×4000 | equipped with reducer 1 set, made of SUS304 |
| 2 | electrical heating boiler | φ377×3500 |
·material of outer heat preservation made of SUS43O, thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization). |
| 3 | screw press | φ219×1000 |
·outer cover made of SUS304, thickness 1.2mm; · seive mesh applied SUS304; ·driving power: 1.5kw. |
| 4 | electrical heating dryer | φ820×3500 |
·inner and outer cylinder made of Q235B; ·preservation made of SUS43O, thickness 0.7mm; ·driving power: 4kw, V=30r/min; |
| 5 | heat contacting oil pump | driving power:1.5kw | |
| 6 | electric control box | electric control box 1 set |
