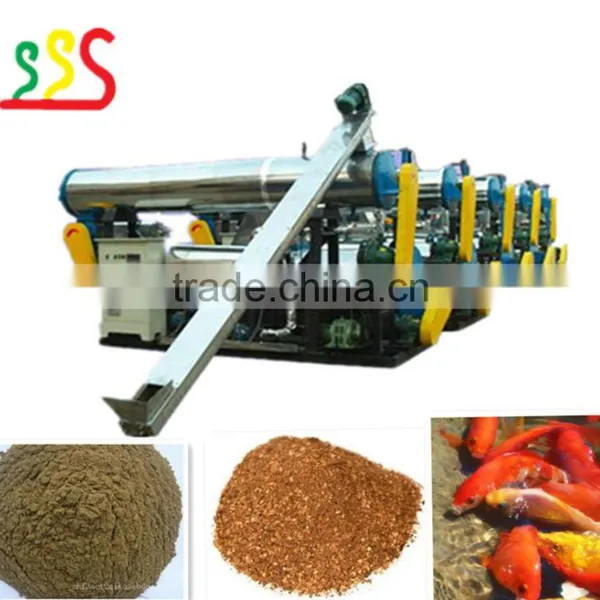

Fish Meal Mini Line
SSS-YF-30
This small capacity fish meal machine is specially design and manufacture for our customers who want to process leftovers like fish head, fish sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.
Raw material and capacity
Raw material is fresh fish, fish head, fish bones, fish offals, etc
Capacity: 2 tons/ 8 hours
Final product
Defatted fish meal with moisture ≤12%
amount of fish meal: 500kg (from 2000kg)
Note: usually the amount and quality of fish meal is based on fish type and fish quality.
Procedure
Raw material -> cooking and pressing -> drying -> skimmed fish meal
1) heating method: electrical heating of thermal oil 180℃
2) heating power: 60kw
3) total running power: 70.1kw
4) processing method: cooking, pressing, drying
Flow chart:
Screw conveyor----Cooking----Pressing----Drying----Packing----fish meal powder for animal feed
Technical Parameters:
| item | description | dimension | details |
| 1 | Screw conveyor | φ170×4000 | equipped with reducer 1 set, made of SUS304 |
| 2 | cooker | φ377×3500 |
·material of outer heat preservation made of SUS430, thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization). |
| 3 | screw press | φ219×1000 |
·outer cover made of SUS430, thickness 0.7mm; · seive mesh applied SUS304; ·driving power: 1.5kw. |
| 4 | dryer | φ820×3500 |
·inner and outer cylinder made of Q235B; ·preservation made of SUS43O, thickness 0.7mm; ·driving power: 4kw, V=30r/min; |
| 5 | heat contacting oil pump | driving power:1.5kw | |
| 6 | electric control box | electric control box 1 set |

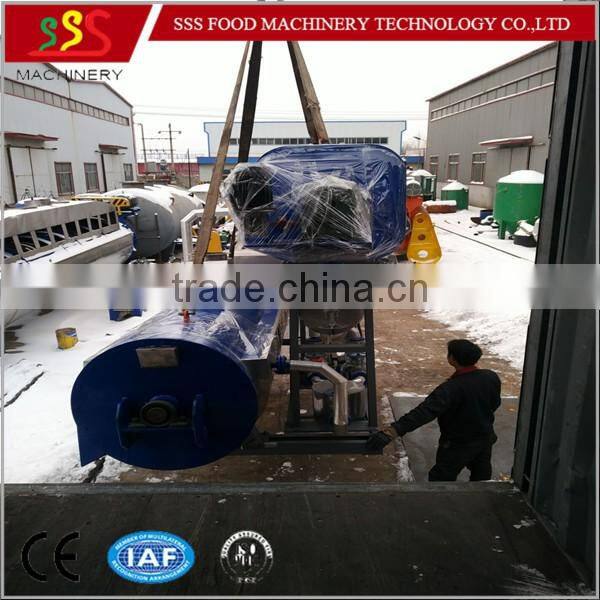

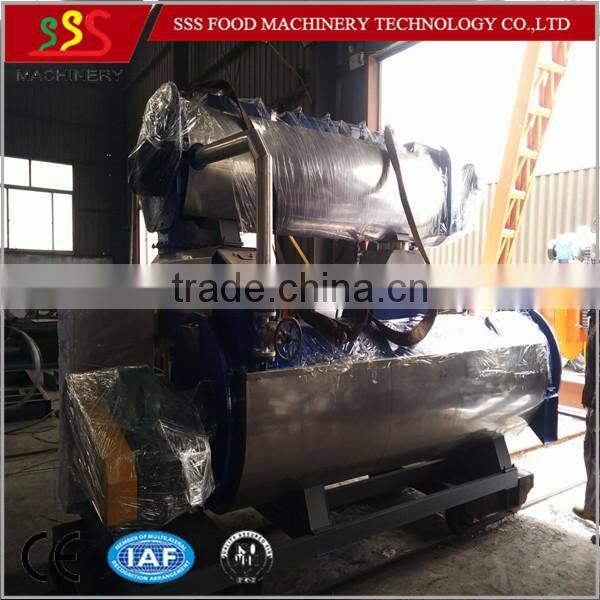

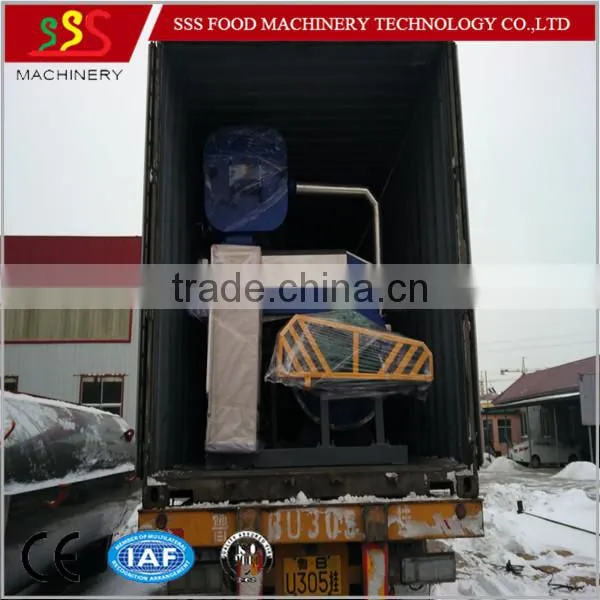

Pictures of Package and loading before shipping
