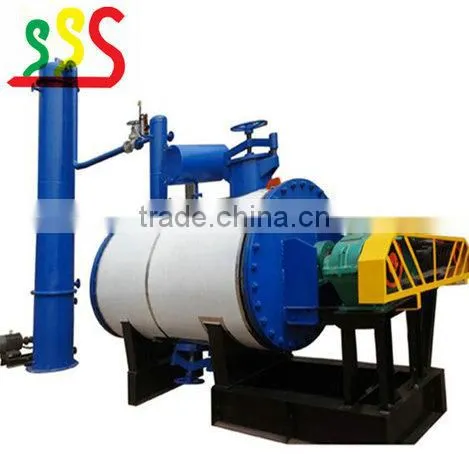

Hydrolyser for Cutting Fish Offal in Fish Meal Production Line

Hydrolyser for Cutting Fish Offal in Fish Meal Production Line thumbnail-1

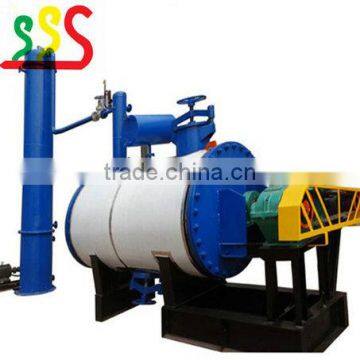

Hydrolyser for Cutting Fish Offal in Fish Meal Production Line photo-1
US$ 500 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Fish Meal Plant
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
SSS Hardware International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Fish Meal Plant
Automatic Grade Automatic
Place of Origin Anhui, China
Brand Name SSS
Model Number LS1300/LS1400/LS1500/LS1600
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Integral steel structure support
2.The exterior insulation adopt stainless steel plate
3.Automatic drainage system.

Hydrolyser for cutting fish offal in fish meal production line



1. Characteristics

* The casing adopts double-layer jackets,which is filled with steam to increase the heat transfer area.The blade in the intermediate shaf adopts box plate type structure,to improve production efficiency;the blade adopts Q345 wear-resistant material,to extend the service life.

* Integral steel structure support,which can change the installation location randomly.

* The feed inlet and outlet adopt block type structure to provide easy operation.

* The exterior insulation adopts stainless steel plate,to enhance the corrosion resistance,extend the service life and have beautiful appearance.

* Make use of the automatic drainage system,to reclaim the steam condensate to the boiler,reduce energy consumption and save water.



2. Application

* Cutting offal(feather,internalorgans,etc.)aging sterilization.

* Died livestock cropse innocent treatment.

* Kitchen waste treatment.
* Aging sterilization of ox bone and pig bone.
* Pre-aging sterilization of fermented feedstuffs.

3. Technical parameter

 Model         Inner      Length  Gas consumption(kg/h)   Production(T/BAT)    Motor power(kw)        Reducer
LS1300        1300      3600                300                              1.2                          18.5-6                ZQ 500
LS1400 Ⅰ   1400      3600                400                              1.4                           22-6                  ZQ 650
LS1400 Ⅱ   1400      4000                450                              1.6                           22-6                  ZQ 650
LS1500        1500      4000               500                               1.8                          30-6                   ZQ650
LS1600        1600      5000               700                               2.5                          45-6                   ZLY280
