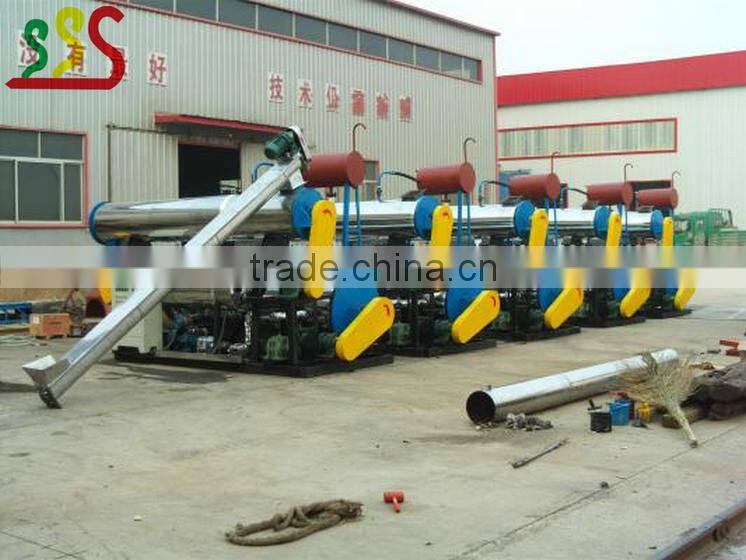

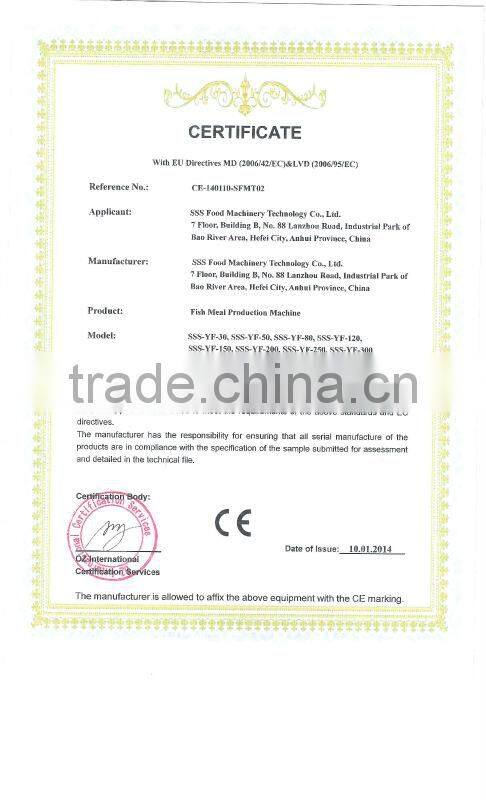

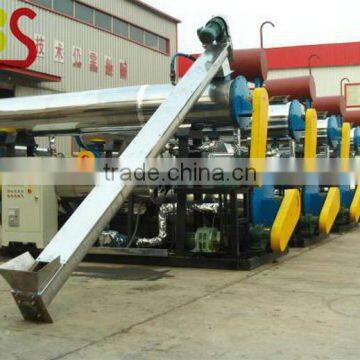

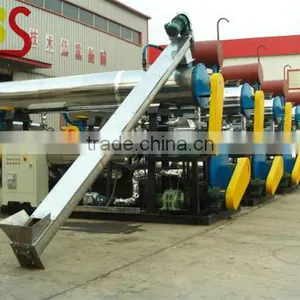

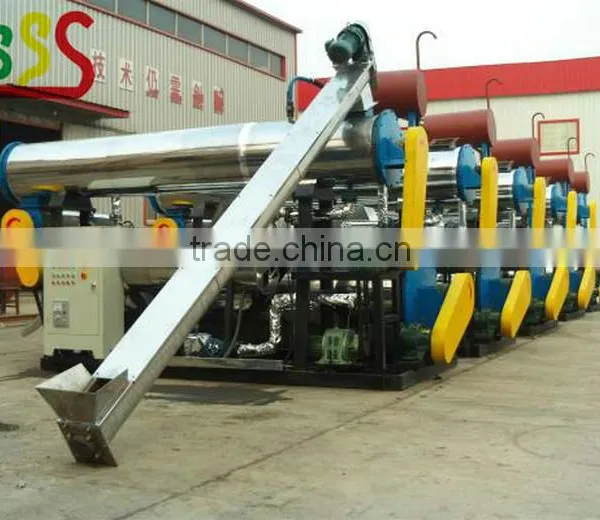

High Quality Fish Meal Machine With CE Certificate

FOB Price

US$ 8,000 - 24,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Fish Meal Plant
Automatic Grade	Automatic	Place of Origin	Anhui, China
Brand Name	SSS	Model Number	SSS-YF-300
Voltage	380v	Power(W)	40000w
Weight	4200kg	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

1.Suitable for small capacity requested.
2.Made of fine stainless steel
3.Final meal can be better absorbed
4.Long life

Fish Meal Machine

Specification:

raw material: fresh fish, fish head, fish bones, fish offals, etc.

capacity of raw fish: 300kg/hour

capacity of fish meal: 70-80kg/hour

final product: skimmed fish meal

moisture of final product: less than 12%

Note: usually the output is based on raw material type and quality

Flow chart:

Screw conveyor----Cooking----Pressing----Drying----Packing----fish meal powder for animal feed

Technical Parameters:

item	description	dimension	details
1	Screw conveyor	φ170×4000	equipped with reducer 1 set, made of SUS304
2	cooker	φ377×3500	·material of outer heat preservation made of SUS430, thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization).
3	screw press	φ219×1000	·outer cover made of SUS430, thickness 0.7mm; · seive mesh applied SUS304; ·driving power: 1.5kw.
4	dryer	φ820×3500	·inner and outer cylinder made of Q235B; ·preservation made of SUS43O, thickness 0.7mm; ·driving power: 4kw, V=30r/min;
5	heat contacting oil pump		driving power:1.5kw
6	electric control box		electric control box 1 set

About Machine:

This small capacity fish meal machine is specially design and manufacture for our customers who want to process leftovers like fish head, fish sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.

The final meal can be easy digestion ,nutrition will be 90% better absorbed ,very good choice for many differnet animal feed!
