Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine

Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine thumbnail-1

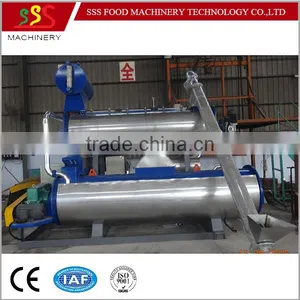

Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine thumbnail-2
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine thumbnail-3
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine thumbnail-4
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine thumbnail-5
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine thumbnail-6
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine photo-1
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine photo-2
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine photo-3
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine photo-4
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine photo-5
Small Size Fish Meal Plant for Popular Sale Fish Meal Production Machine photo-6
US$ 5,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Fish Meal Machine, Other
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
SSS Hardware International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Fish Meal Machine, Other
Automatic Grade Automatic
Production Capacity 5tons/day
Brand Name SSS
Model Number SSS-YF-30
Voltage 380V
Power(W) 70.1kw
Dimension(L*W*H) 4400x2200x2500mm
Weight 4200kg
Certification CE ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

Fish Meal Production Machine



1. Raw material and capacity

Raw material: raw fish or fish fillet and scraps( fish head, fish bones, fish offals), etc

Capacity of raw fish: 300kg/hour
Capacity of fish meal: 70-80kg/hour



2. Final product

Final product: skimmed fish meal
Moisture of final product: less than 12%

Note: usually the capacity of fish meal is based on fish type and fish quality



3. Procedure

Raw material -> cooking and pressing -> drying -> skimmed fish meal

1) heating method: electrical heating of thermal oil 200°C

2) total power: 40kw

3) processing method: cooking, pressing, drying



4. Specification of equipment

itemdescriptiondimensiondetails
1Screw conveyorφ170×4000equipped with reducer 1 set, made of SUS304
2electrical cookerφ377×3500

·material of outer heat preservation made of SUS430, thickness: 0.7mm;

·inner and outer cylinder made of Q235B;                                                      ·driving power: 1.5kw (speed adjusted by magnetization).

3screw pressφ219×1000

·outer cover made of SUS430, thickness  0.7mm;

· seive mesh applied SUS304;                                                                             ·driving power: 1.5kw.

4dryerφ820×3500

·inner and outer cylinder made of Q235B;

 ·preservation made of SUS430, thickness  0.7mm;

·driving power: 4kw, V=30r/min;

5thermal oil pump driving power:1.5kw
6electric control box

electric control box 1 set



Other supporting fittings and appliances, such as power system, valves, gauges, heating pipes, temperature controller, starting system, high-level oil tank, low-level oil tank, etc.

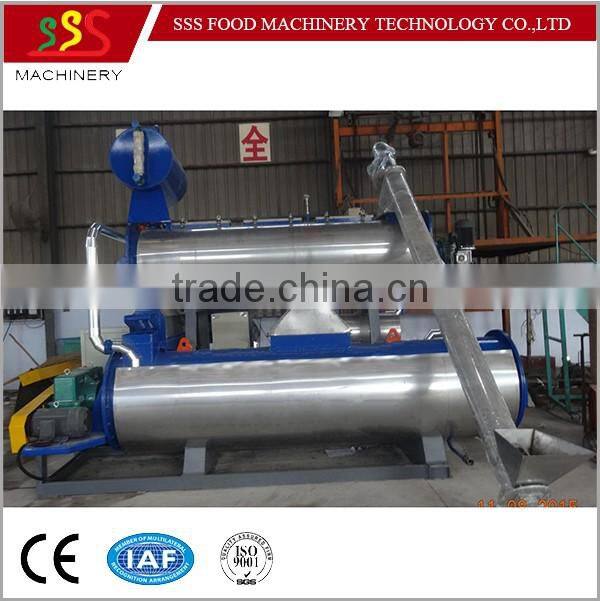

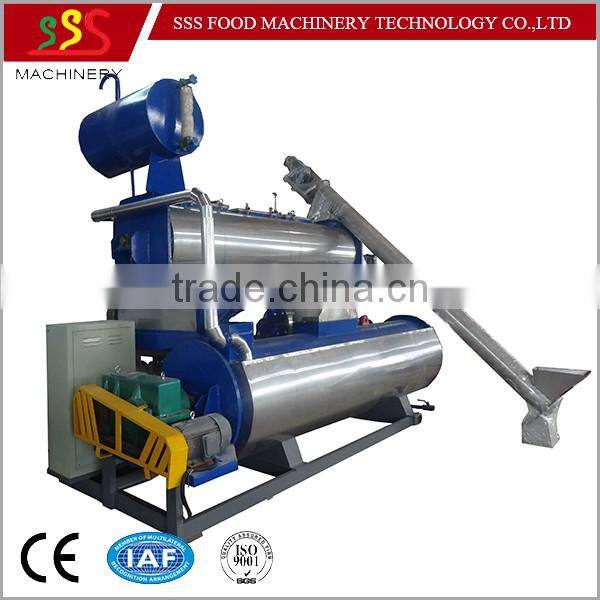

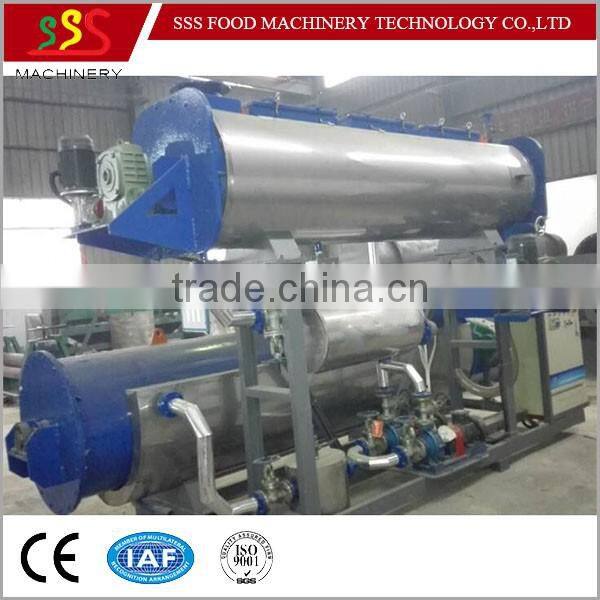

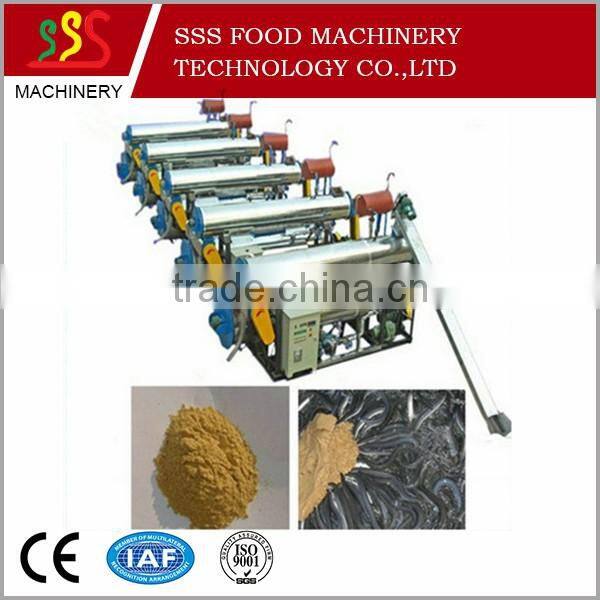

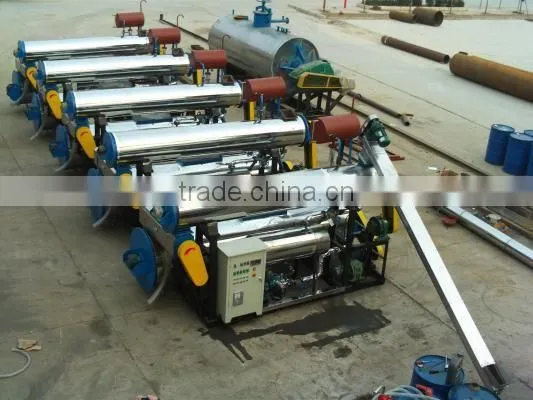

 5. More Pictures and Certificate:

small size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machine

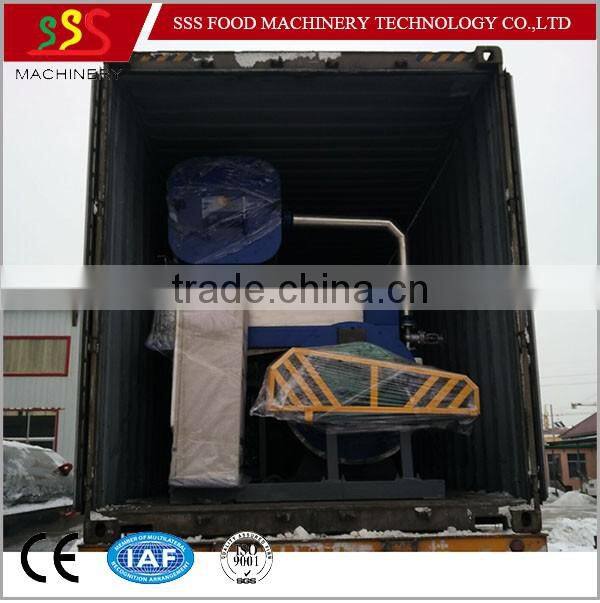

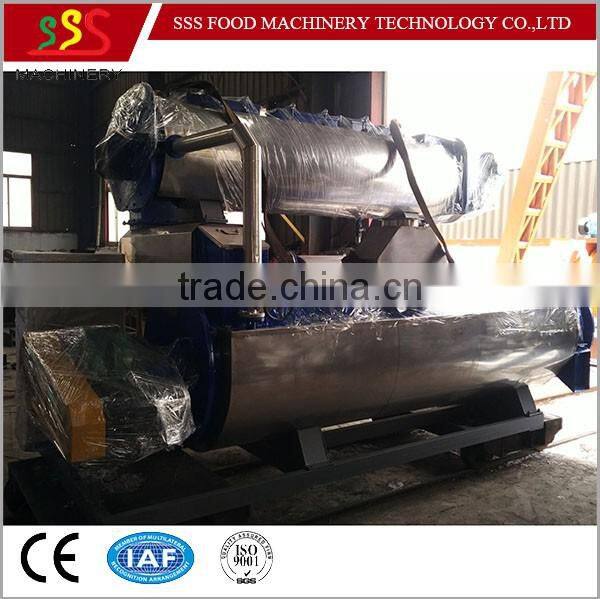

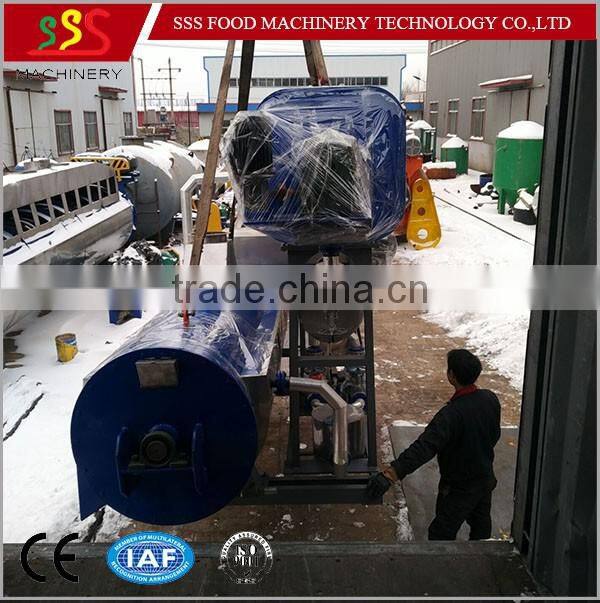

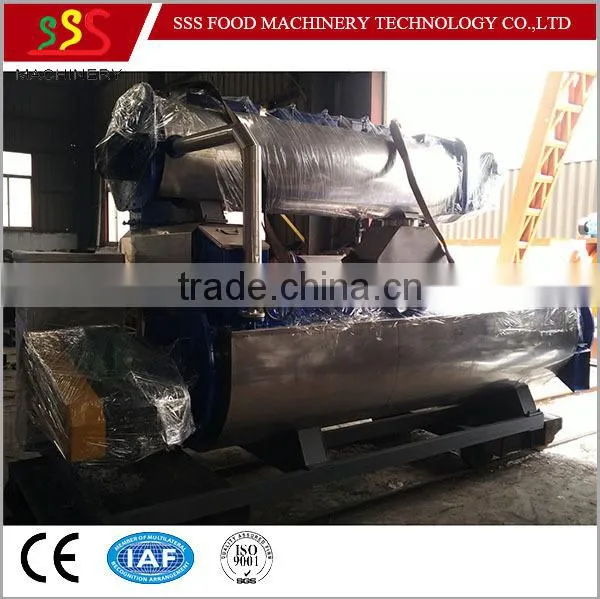

6.Package and Loading before shipment:



small size fish meal plant for popular sale fish meal production machinesmall size fish meal plant for popular sale fish meal production machine

Sales Manager-Felice

SSS Food Machinery Technology CO., LTD

loretta@

Whatsapp: +86 13731996862

Skype: felicefy

Tel: +86 -551-82811630

Fax:+86-551-82819019

web:
