wood shavings crusher machine
1. wood shavings crusher machine is mainly used to crush wood, wood waste, wood shaving, wood chips straw shell rice husk etc into powder. Fineness can be 1-20mm.
2. wood shavings crusher machine can crushe fertilize waste such as animal manura,plant waste etc, also can crush animal feed materials such as soybean, maize, grain, etc. Tell us what kind of raw materials will crushe and the last dimension after crushed, then we will help you choose best models.
3. wood shavings crusher machine is mainly used in wood factory, feed factory, cultivation factory, Fertilizer, chemical industry , power plant and so on.
Spare parts of wood hammer mill crusher machine :
4. wood shavings crusher machine usually works with cyclone, air lock, fan blower, bag dust collector, air control pannel.
5. wood shavings crusher machine can be used by two methods, positive presssure and negative pressure. The picture showed to you is negative press, which means fan blower is installed after cyclone. It is sure that we can make it into positive as per your request.
3. wood shavings crusher machine Different sizes of sieves can be installed at the bottom of the hammer mill as per the particle size you need.
4. wood shavings crusher machine key spare parts such as hammer blades are 65mn alloy steel, crushing system is setady, wear resistance, and function is good.
5. wood shavings crusher machine raw material should be not too wet, if moisture kept between 15-20%, then will be the best. Low moisture, then per hour capacity is more higher, or will be lower
Techinial parameters for wood shavings crusher machine
Modle |
Power (kw) |
capacity |
Weight|(t) |
Number of hammer board |
Size (mm) |
SG40 |
7.5 |
0.2-0.5 |
0.27 |
12 |
1310*800*1070 |
SG50 |
15 |
0.6-0.8 |
0.45 |
16 |
1380*800*1010 |
SG65*30 |
22 |
0.8-1.2 |
1.1 |
24 |
1500*1000*1100 |
SG65*55 |
37-45 |
1-2 |
1.5 |
48 |
1700*1000*1100 |
SG65*75 |
55-75 |
2-3 |
1.9 |
72 |
2100*1000*1100 |
SG130*100 |
90-110 |
3-4 |
2.3 |
90 |
2400*1000*1100 |
SG130*55 |
130-160 |
5-6 |
5.3 |
108 |
2800*1620*2100 |
SG130*100 |
160-220 |
7-7 |
6.8 |
160 |
3020*1620*2170 |

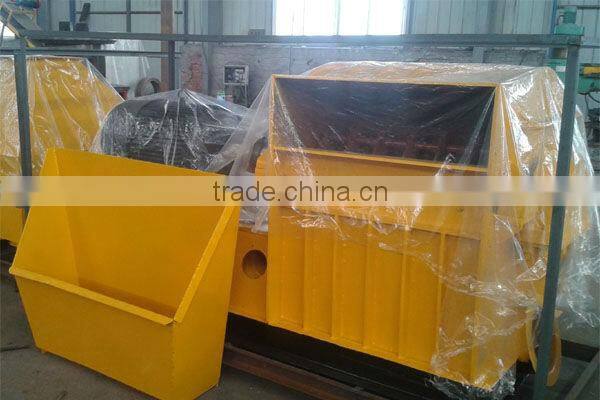

Picture of wood shavings crusher machine is packing :

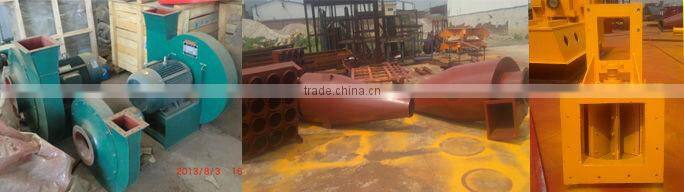

Auxiliary parts of wood shavings crusher machine

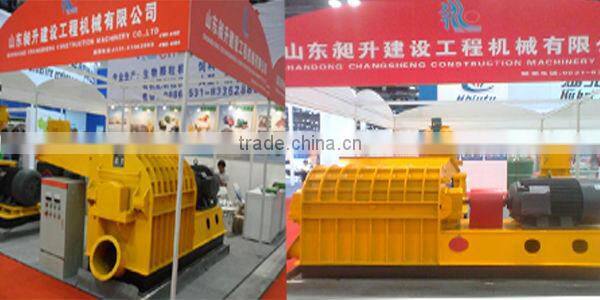

wood shavings crusher machine on the Fair:

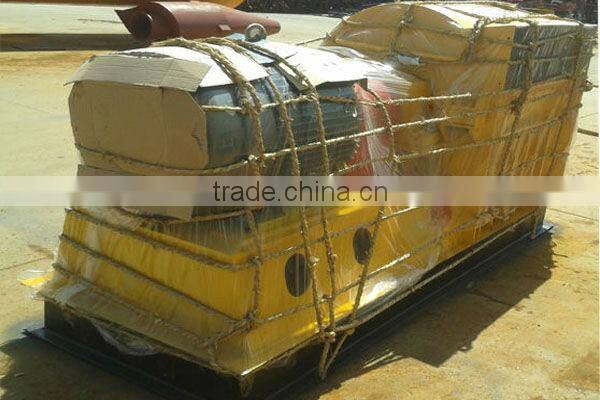

wood shavings crusher machine is to be delivered
Notifications when using wood shavings crusher machine
1. wood shavings crusher machine can be installed with different kinds of sieves, you can choose according to your actual need. If you want to process different size powder, then you need different size sieve,( sieve size:0.8cm, 1cm, 1.2cm. 1,5cm, 2.0cm)
2. wood shavings crusher machine is high speed rotorying parts, hammer blades must be fixed firmly, avoid hard rawmterial entering into.
3. wood shavings crusher machine Hammer blades are of wear parts, should be checked time to time, when having no edges and conners, reversible or swithcing to use. But the position of hammer blades cant be changed, or will effect balance.
4 If raw material is too big, then should be make into small one to feed in.
3-4t/h wood hammer mill crusher
