Help CenterCS 2015 CE Small Wood Tree Branch Crusher Crushing Machine Hammer Mill Grinding Machine
Related Products
-
CS 2015 Multifunctional Hammer Mill With Blower Cyclone Air Lock Bag Type DedustorUS$ 6,280 - 17,800MOQ: 1 Set -
CS 2015 Hot Sale CE Multifunctional Hammer Mill Machine for SawdustUS$ 6,320 - 18,960MOQ: 1 Set
-
CS High Quality New Design Low Price Factory Use Wood Shaving Hammer Mill For SaleUS$ 5,100 - 9,500MOQ: 1 Set
-
CS High Quality New Design Low Price Wood Hammer Mill Crusher 2-3ton per Hour CapacityUS$ 7,200 - 9,000MOQ: 1 Set
-
CS 2015 Hot Sale Multifunctional Industrial Hammer Mill/Coconut Husk Chips MachineUS$ 6,000 - 30,000MOQ: 1 Set
branch crusher crushing machine
Above are branches

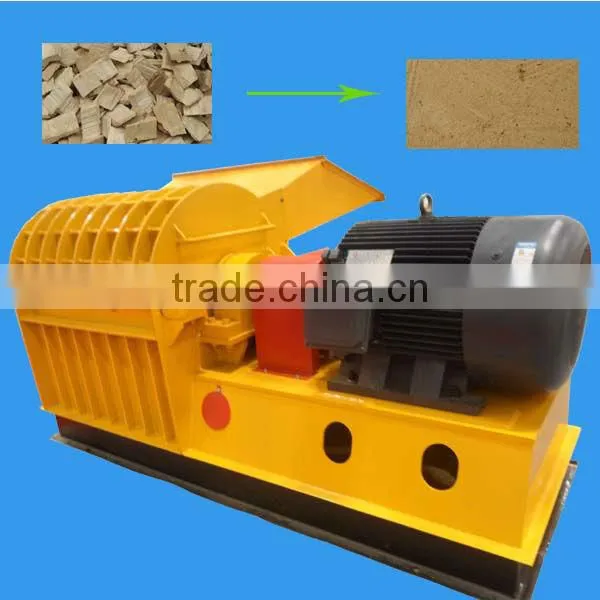

NB:if the diameter of branch is below 3cm,then they can be fed into hammer mill directly,if it is over 3cm,then they have to be put into wood chiper first,then fed into hammer for fine crushing.Thanks
Working Video link for our Electrical wood chipper machine for your reference:
/v_show/id_XNzU2NTI5OTQ0.html

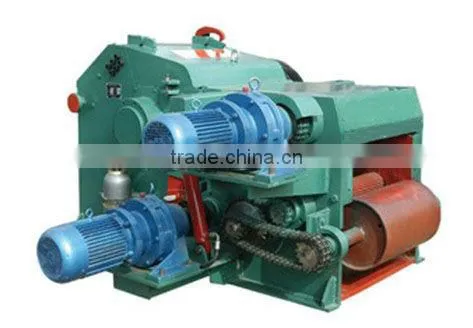

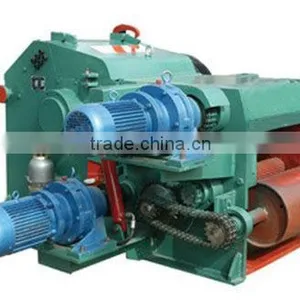

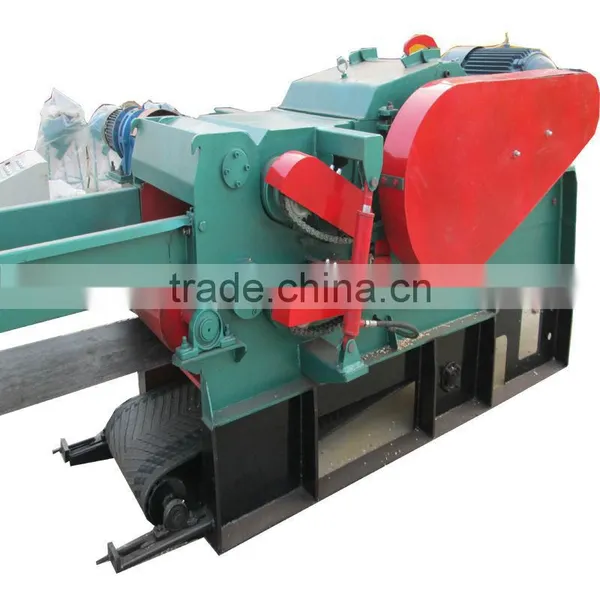

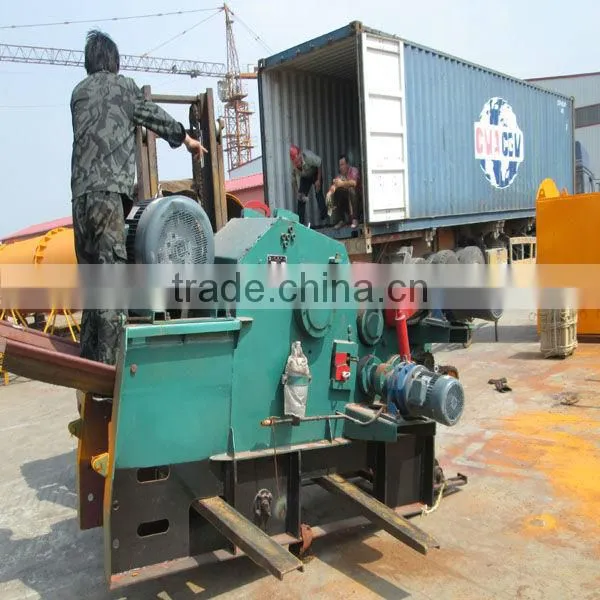

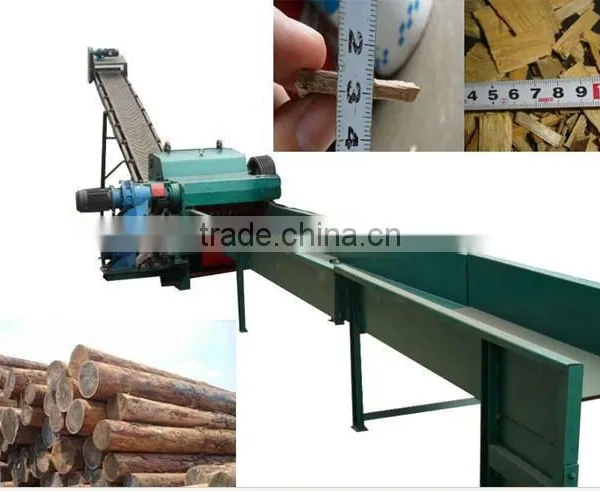

branch crusher crushing machine complete set includs feeding conveyor, chipper,outlet conveyor and electric cabinet.Operation easy, maintenance simple, life long and the noise is low.
They would be the best choice for factories and families which deal with wood scraps. It is your best choice to process wood products and sawdust.
palm tree shredder produce wood chips of 10-30mm size, widely used in the raw material preparing process in the factories of flake board, fiberboard, papermaking and wood chips making plant and biomass wood pellet making plant.
Techincial parameters of branch crusher crushing machine
branch crusher crushing machine | |||||||||
Model |
Capacity (t/h) |
Power (kW) |
Feeder Power (kW) |
Knife quanlity (pieces) |
Input size (mm) |
Output size (mm) |
Rotary speed (r/min) |
Net Weight (kg) |
Dimension (m) |
CS216 |
6-8 |
55 |
2.2-3.0 |
2-4 |
230*550 |
10-30 |
590 |
4000 |
1.8*1.9*1.21 |
CS218 |
10-15 |
110 |
3.0-4.0 |
2-4 |
300*680 |
10-30 |
650 |
7000 |
2.2*2.15*1.5 |
CS2113 |
15-25 |
160 |
4.0-5.0 |
2-4 |
350*800 |
10-40 |
500 |
11800 |
3.67*2.517*2.05 |
characters of branch crusher crushing machine
1. branch crusher crushing machine Flexible adaptability. The design of wood chipper machine for big logs avoids making the foundation. And it is suitable for many different conditions, it does not influenced by weather and other external conditions.
2. branch crusher crushing machine Save time. wood chipper machine for big logs can put into produce directly which will save much time.
3. branch crusher crushing machine Save money. wood chipper machine for big logs has a large capacity and works reliable, only one or two person can control the machine.

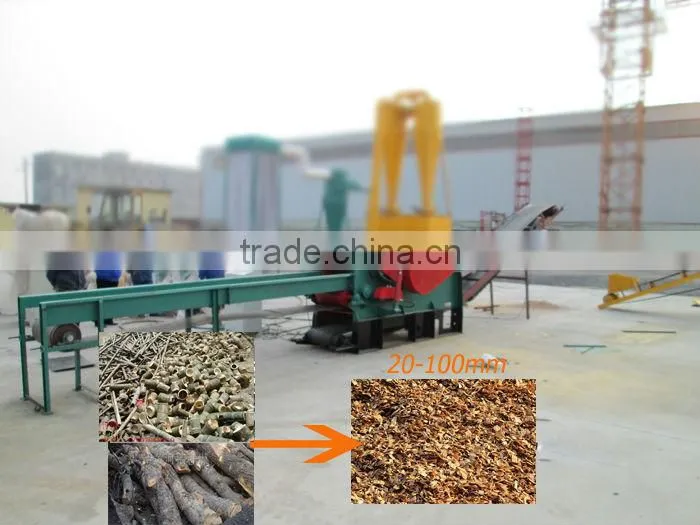

wood chips by 8-15ton/h Wood Chipper
Why buy branch crusher crushing machine from us ?
Chang Sheng is one of the largest manufacturer of pellet stove, pellet boiler, and pellet making machine in China. That is why we can offer you brand new products at extremely low prices. We are the experts of biomass fuel machinery field, there is a professional team of designing and manufacturing in our factory. All the material and process are controlled strictly, that our products have a unique cost performance.
Shipping cost of branch crusher crushing machine
Please Message or Call us. If You Have Questions About The Shipping Cost, Depending On Your Location, It May Be Cheaper!! When Contacting Us Please Provide Your Zip Code.
Packing? of branch crusher crushing machine
The kind of packing will be decided by our clients, or you can leave it to us. Whatever which one is used, all the good will be packed carefully by our professional workers to ensure the safety of your shipment.
After –sales of branch crusher crushing machine
Quality is the soul of our factory, we have design departments, equipment installation department and after-sales department which helps our clients all over the world. They gain huge reputation for our company. Our after-sales service includes: equipment debugging and installation,Product guidance, spare parts delivery, shipment follow up. If you have any question please contact us, We will do our best to accomplish your requirement on time.
Introductions of branch crusher crushing machine
Wood slice machine also called wood chipper machine, common type have disc and drum type . The size can be raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood fiber rod cutting into homogeneous sheet stock, stock piece length according to need to be in a certain range adjustment. Is paper industry, plank industry way before the production of ideal equipment.
Applications of branch crusher crushing machine
Our company produces the chipper disc chipper, wood chipper, miscellaneous wood chipper, wood chipper is the production of high quality wood a special wood chipper, widely used in papermaking, particle board factory, and high density fiberboard factory, stubble factory, biomass power plant, wood factory, and other industrial and manufacturer of production preparation section before the preferred equipment. The main cutting raw material is peeling after the trail wood, bamboo, slab materials and cutting time fuelwood excess material, etc.
The work principle of branch crusher crushing machine
Timber by feed port into, when wood according to contact to peel and cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, cut pieces of wood in the peel and cut indoor by cutting knife plate wind leaf produced by the high speed flow send out.
Structure composition of branch crusher crushing machine
Mainly by the stand, feed port, cutter, casing, chipping blade and electronic component, the machine can according to need to adjust the peel and cut blade, the production of different specifications and thickness of the chip.
Advantages of branch crusher crushing machine
1, New chipper large disk chipper, roots chipper, plate cutting machine, wood flaking machine, wood slice machine high output, low energy consumption, wood chip high quality, cost-effective.
2, Chipper disc chipper compact structure, rational layout, easy installation, operation and maintenance convenience, high productive capacity; Cutting log, high quality wood, and wood chip length can be in within the prescribed scope of free adjustment, is the domestic advanced woodworking machinery equipment.
3, Disc chipper production, user can choose according to need model.
Shangdong changsheng construction machinery
Shan dong Chang Sheng Construction Machinery Co.,ltd is a share system enterprise that intergrates design, manufacture, production and installation of pellet manufacturing equipments, its main products include biomass energy pellet machine, forage pellet machine, organic fertilizer pellet machine and echanic equipments for processing timber log int sawdust then to biomass pellets, such as crushing process, drying process, pelleting process, feeding process, cooling process and packing process and our technology are leading in the same industry. the company located in jinan city, the capital of shandong province, takes the leading in the passing ISO9001 international quality system quthentication and eu CE quality quthentication.
1.biomass dryer machine:
https://img13.fr-trading.com/search/product?SearchText=CS+dryer
2.biomass pellet production line:
https://img13.fr-trading.com/search/product?SearchText=CS+line
3. biomass wood hammer mill:
https://img13.fr-trading.com/search/product?SearchText=Cs+hammer+mill
4. wood chipper:
https://img13.fr-trading.com/search/product?SearchText=CS+chipper
5.pellet mill:
https://img13.fr-trading.com/search/product?SearchText=CS+pellet+mill
6.biomass pellet mill:
https://img13.fr-trading.com/search/product? https://img13.fr-trading.com/search/product?SearchText=CS+biomass+pellet+mill
7.Animal feed pellet machine:
https://img13.fr-trading.com/search/product?SearchText=CS+animal+feed
8.ring die pellet machine:
https://img13.fr-trading.com/search/product?SearchText=CS+2015+ring+die+
For more info,please surf our website:https://img13.fr-trading.com
