Help CenterCS 2015 Hot Sale Wood Sawdust Crusher for Making Sawdust/wood Chips Hammer Mill
Related Products
-
CS 2015 CE Small Wood Tree Branch Crusher Crushing Machine Hammer Mill Grinding MachineUS$ 5,560 - 12,850MOQ: 1 Set -
CS 2015 Multifunctional Hammer Mill With Blower Cyclone Air Lock Bag Type DedustorUS$ 6,280 - 17,800MOQ: 1 Set
-
CS 2015 Hot Sale CE Multifunctional Hammer Mill Machine for SawdustUS$ 6,320 - 18,960MOQ: 1 Set
-
CS High Quality New Design Low Price Factory Use Wood Shaving Hammer Mill For SaleUS$ 5,100 - 9,500MOQ: 1 Set
-
CS High Quality New Design Low Price Wood Hammer Mill Crusher 2-3ton per Hour CapacityUS$ 7,200 - 9,000MOQ: 1 Set
Wood Sawdust Crusher for making sawdust
1. Wood Sawdust Crusher for making sawdust is mainly used to crush wood, wood waste, wood shaving, wood chips straw shell rice husk etc into powder. Fineness can be 1-20mm.
2. Wood Sawdust Crusher for making sawdust can crushe fertilize waste such as animal manura,plant waste etc, also can crush animal feed materials such as soybean, maize, grain, etc. Tell us what kind of raw materials will crushe and the last dimension after crushed, then we will help you choose best models.
3. Wood Sawdust Crusher for making sawdust is mainly used in wood factory, feed factory, cultivation factory, Fertilizer, chemical industry , power plant and so on.
Spare parts of wood hammer mill crusher machine :
4. Wood Sawdust Crusher for making sawdust usually works with cyclone, air lock, fan blower, bag dust collector, air control pannel.

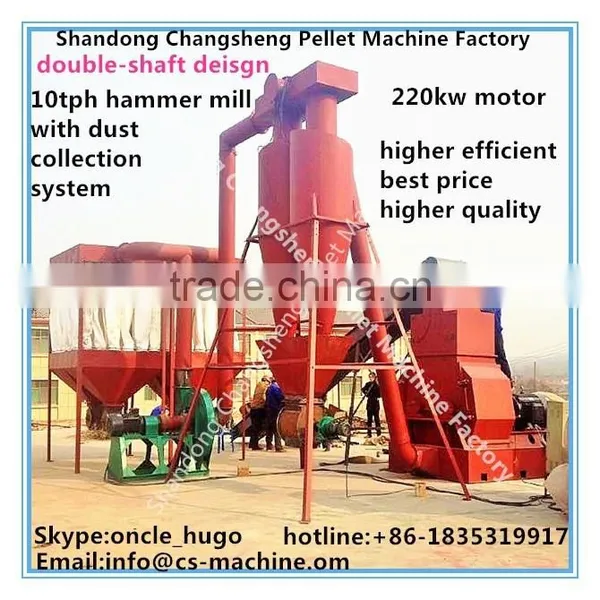

5. Wood Sawdust Crusher for making sawdust can be used by two methods, positive presssure and negative pressure. The picture showed to you is negative press, which means fan blower is installed after cyclone. It is sure that we can make it into positive as per your request.
3. Wood Sawdust Crusher for making sawdust Different sizes of sieves can be installed at the bottom of the hammer mill as per the particle size you need.
4. Wood Sawdust Crusher for making sawdust key spare parts such as hammer blades are 65mn alloy steel, crushing system is setady, wear resistance, and function is good.
5. Wood Sawdust Crusher for making sawdust raw material should be not too wet, if moisture kept between 15-20%, then will be the best. Low moisture, then per hour capacity is more higher, or will be lower
Techinial parameters for Wood Sawdust Crusher for making sawdust
Modle |
Power (kw) |
capacity |
Weight|(t) |
Number of hammer board |
Size (mm) |
SG40 |
7.5 |
0.2-0.5 |
0.27 |
12 |
1310*800*1070 |
SG50 |
15 |
0.6-0.8 |
0.45 |
16 |
1380*800*1010 |
SG65*30 |
22 |
0.8-1.2 |
1.1 |
24 |
1500*1000*1100 |
SG65*55 |
37-45 |
1-2 |
1.5 |
48 |
1700*1000*1100 |
SG65*75 |
55-75 |
2-3 |
1.9 |
72 |
2100*1000*1100 |
SG130*100 |
90-110 |
3-4 |
2.3 |
90 |
2400*1000*1100 |
SG130*55 |
130-160 |
5-6 |
5.3 |
108 |
2800*1620*2100 |
SG130*100 |
160-220 |
7-7 |
6.8 |
160 |
3020*1620*2170 |
Picture of Wood Sawdust Crusher for making sawdust is packing :

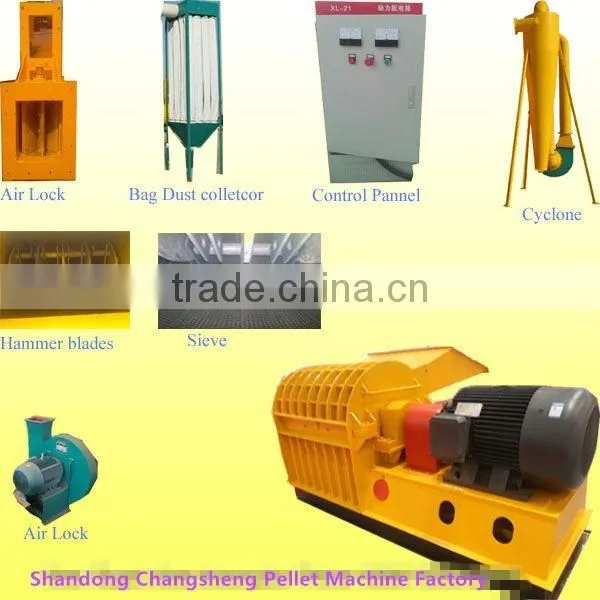

Auxiliary parts of Wood Sawdust Crusher for making sawdust
Wood Sawdust Crusher for making sawdust on the Fair:
Wood Sawdust Crusher for making sawdust is to be delivered
Notifications when using Wood Sawdust Crusher for making sawdust
1. Wood Sawdust Crusher for making sawdust can be installed with different kinds of sieves, you can choose according to your actual need. If you want to process different size powder, then you need different size sieve,( sieve size:0.8cm, 1cm, 1.2cm. 1,5cm, 2.0cm)
2. Wood Sawdust Crusher for making sawdust is high speed rotorying parts, hammer blades must be fixed firmly, avoid hard rawmterial entering into.
3. Wood Sawdust Crusher for making sawdust Hammer blades are of wear parts, should be checked time to time, when having no edges and conners, reversible or swithcing to use. But the position of hammer blades cant be changed, or will effect balance.
4 If raw material is too big, then should be make into small one to feed in.
Wood Sawdust Crusher for making sawdust
