CS 2015 Hot Sale Multifunctional Wood Grind Hammer Mill for Sawdust Making

CS 2015 Hot Sale Multifunctional Wood Grind Hammer Mill for Sawdust Making photo-1
CS 2015 Hot Sale Multifunctional Wood Grind Hammer Mill for Sawdust Making photo-2
CS 2015 Hot Sale Multifunctional Wood Grind Hammer Mill for Sawdust Making photo-3
CS 2015 Hot Sale Multifunctional Wood Grind Hammer Mill for Sawdust Making photo-4
US$ 6,800 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Changsheng
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Changsheng
Model Number sg65*75
Voltage 380v,50hz, 3 phase
Power(W) 55kw
Dimension(L*W*H) 2100*1000*1100
Weight 1.9t, 2.3t
Certification CE
Warranty 12months
After-sales Service Provided Engineers available to service machinery overseas

multifunctional wood grind hammer mill

1. multifunctional wood grind hammer mill is mainly used to crush wood, wood waste, wood shaving, wood chips straw shell rice husk etc into powder. Fineness can be 1-20mm.

 2. multifunctional wood grind hammer mill can crushe fertilize waste such as animal manura,plant waste etc, also can crush animal feed materials such as soybean, maize, grain, etc. Tell us what kind of raw materials will crushe and the last dimension after crushed, then we will help you choose best models.

3. multifunctional wood grind hammer mill is mainly used in wood factory, feed factory, cultivation factory, Fertilizer, chemical industry , power plant and so on.

 Spare parts of wood hammer mill crusher machine :

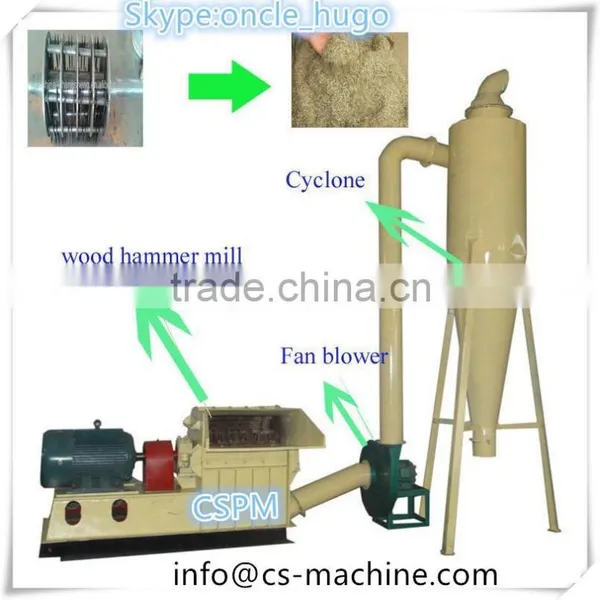

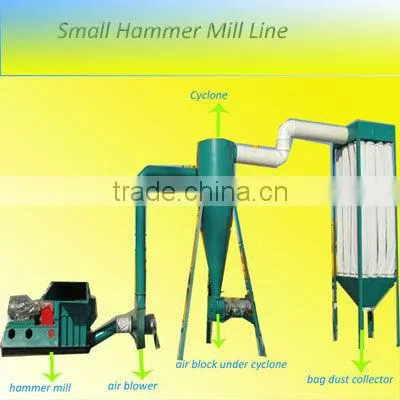

4. multifunctional wood grind hammer mill usually works with cyclone, air lock, fan blower, bag dust collector, air control pannel.

5. multifunctional wood grind hammer mill can be used by two methods, positive presssure and negative pressure. The picture showed to you is negative press, which means fan blower is installed after cyclone. It is sure that we can make it into positive as per your request.

 CS 2015 hot sale multifunctional wood grind hammer mill for sawdust making

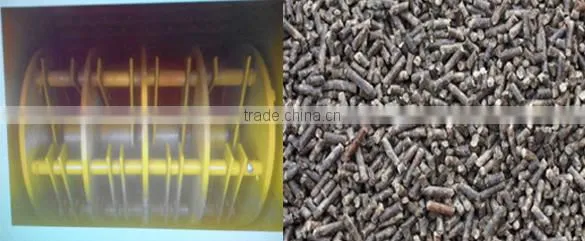

3. multifunctional wood grind hammer mill Different sizes of sieves can be installed at the bottom of the hammer mill as per the particle size you need.

4. multifunctional wood grind hammer mill key spare parts such as hammer blades are 65mn alloy steel, crushing system is setady, wear resistance, and function is good.

5. multifunctional wood grind hammer mill raw material should be not too wet, if moisture kept between 15-20%, then will be the best. Low moisture, then per hour capacity is more higher, or will be lower

CS 2015 hot sale multifunctional wood grind hammer mill for sawdust making

  Techinial parameters for multifunctional wood grind hammer mill

Modle

Power

(kw)

capacity

Weight|(t)

Number of hammer board

Size

(mm)

SG40

7.5

0.2-0.5

0.27

12

1310*800*1070

SG50

15

0.6-0.8

0.45

16

1380*800*1010

SG65*30

22

0.8-1.2

1.1

24

1500*1000*1100

SG65*55

37-45

1-2

1.5

48

1700*1000*1100

SG65*75

55-75

2-3

1.9

72

2100*1000*1100

SG130*100

90-110

3-4

2.3

90

2400*1000*1100

SG130*55

130-160

5-6

5.3

108

2800*1620*2100

SG130*100

160-220

7-7

6.8

160

3020*1620*2170

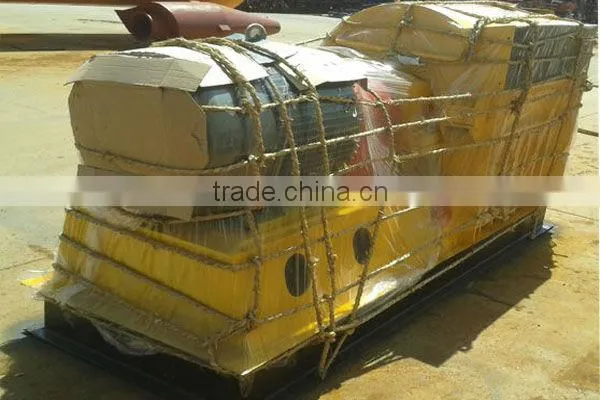

Picture of multifunctional wood grind hammer mill is packing :

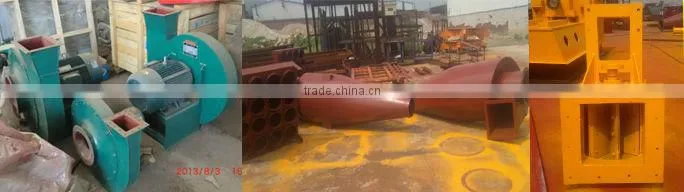

Auxiliary parts of multifunctional wood grind hammer mill

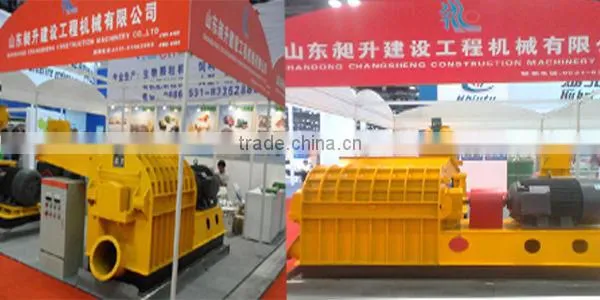

multifunctional wood grind hammer mill on the Fair:

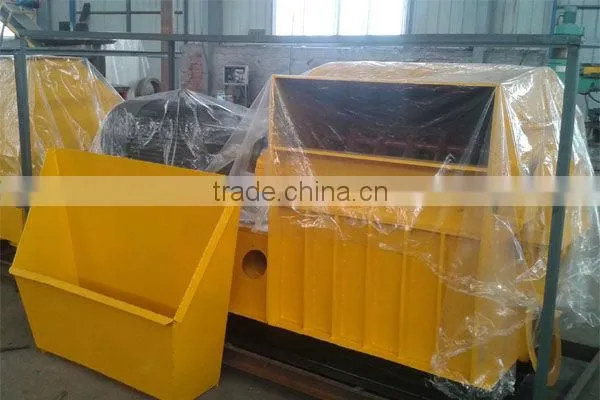

multifunctional wood grind hammer mill is to be delivered

Notifications when using multifunctional wood grind hammer mill

 1. multifunctional wood grind hammer mill can be installed with different kinds of sieves, you can choose according to your actual need. If you want to process different size powder, then you need different size sieve,( sieve size:0.8cm, 1cm, 1.2cm. 1,5cm, 2.0cm)



2. multifunctional wood grind hammer mill is high speed rotorying parts, hammer blades must be fixed firmly, avoid hard rawmterial entering into.



3. multifunctional wood grind hammer mill Hammer blades are of wear parts, should be checked time to time, when having no edges and conners, reversible or swithcing to use. But the position of hammer blades cant be changed, or will effect balance.



4 If raw material is too big, then should be make into small one to feed in.



multifunctional wood grind hammer mill

CS 2015 hot sale multifunctional wood grind hammer mill for sawdust making
