High efficiency portable crushing plant for mining industry

Specifications

1.Complete plant.
2.Strong flexibility.
3.High efficiency.
4.Great work&easy maintain.







                                   Henan Hongji Mine Machinery Co.,Ltd







Construction Material Making Machine Introduction

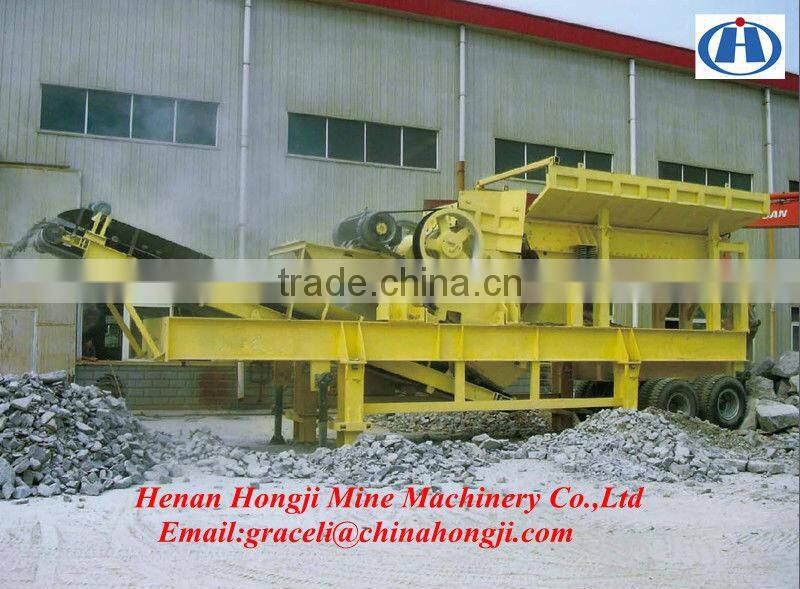

Mobile Jaw Crusher Plant is the core mineral crushing equipment which incorporates the jaw crusher in on one truck, which has a relatively high chassis and narrow body compared with the other trucks. As the name of the portable jaw crusher suggests, it can transport on the high-way which can crush materials on-site saving the trouble of transporting the materials from one place to another place. Portable jaw crusher is widely used for crushing hard rocks such as taconite, granite, dark rock, corundum, Silicon carbide and quartzite, etc.





Features of Mobile Jaw Crusher Plant



1) Easy to move
For the portable jaw crusher having a relatively high chassis and narrow body ensures the portable crusher is convenient to move to crush materials on-site.

2) Decrease the cost of materials transporting
The portable jaw crusher can crushing materials on-site without transporting materials, which greatly reduce the cost of the whole crushing.



3) Convenient to maintain.

4) Reliable performance.

5) Reasonable collocation





Technical Parameters of Mobile Jaw Crusher Plant





PP Jaw Portable Crusher		PP600	PP750	PP900	PP1060	PP1200	PP1300
Shipping  Size	Length           (mm)	8600	9600	11097	13300	15800	9460
	Width (mm)	2520	2520	3759	2900	2900	2743
	Height (mm)	3770	3500	3500	4440	4500	3988
	Weight (mm)	15240	22000	32270	57880	98000	25220
	Axle Load(kg)	10121	14500	21380	38430	64000	14730
	Tractor weight (kg)	5119	7500	10890	19450	34000	10490
Jaw  crusher	Type	PE400×600	PE500×750	PE600×900	PE750×1060	PE900×1200	PE300×1300
	Material Inlet	400×600	500×750	600×900	750×1060	900×1200	300×1300
	Adjust rang of  discharge hole(mm)	40-100	50-100	65-180	80-180	95-225	20-90
	Capacity (m3/h)	10-35	25-60	30-85	70-150	100-240	10-65
Vibrating  feeder	Type	GZD8030	GZD8030	GZD9638	GZD1149	GZD1352	GZD8030
	Capacity of material  Cabin (m3/h)	3	4	7	10	10	3
	Width of material  cabin (mm)	2200	2500	3000	3000	3000	2200
Belt conveyor type		B500×6	B650×7	B800×8	B1000×11	B1200×13	B800×7
