Specifications
Features of quick lime kiln1) 1600-1700 temeperature can be reached
2)The rotary kiln has the function of degradi

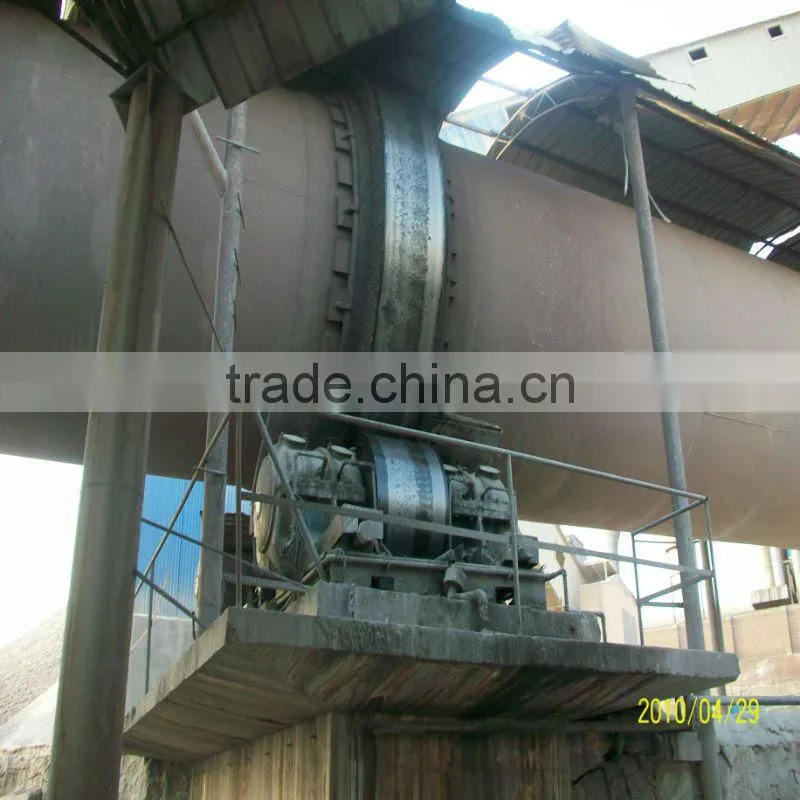

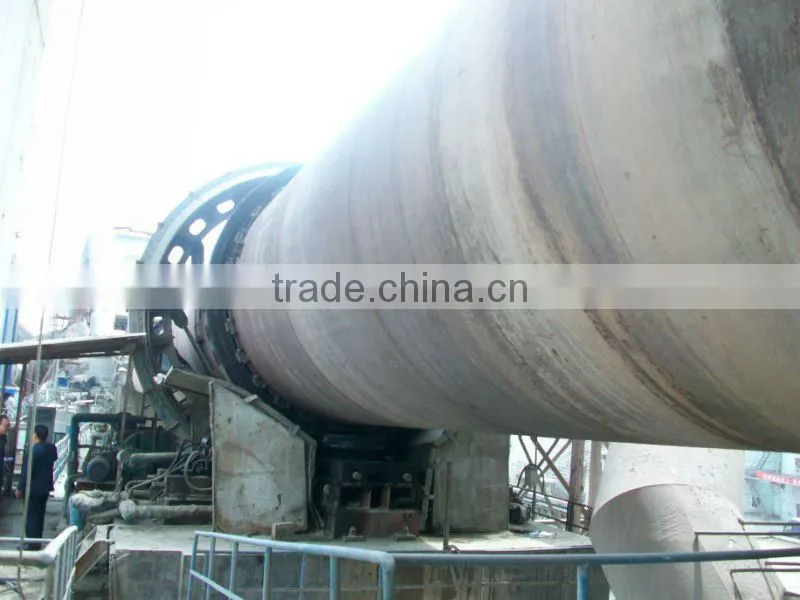

Roary kiln ( quick lime kiln)introduction
Rotary kiln is the main equipment of calcining the cement clinker. The characteristics of a rotary kiln are with simple structure, convenient and reliable control of the producing process,with little wearing parts and high running rate. It is the equipment calcining the high grad cement in the cement factory. The rotary kiln is widely used in the metallurgy,chemical industry,construction and other industries.
Features of Rotary Kiln
1) The rotary kiln is an inclined rotary cylinder, the raw material enter the cylinder through the high end of the machine,then move in with the movement of of the rotary kiln. Therefore, the rotary kiln is a conveying equipment.
2) Rotary kiln is a combustion device.
3) Rotary kiln has the function of heat exchange.
4) Rotary kiln has the chemical reaction function.
5) The rotary kiln has the function of degrading and re-using the waste.
Technical Parameters of Rotary Kiln
| Model(mm) | Kiln size | Capacity(t/h) | Rotation speed(r/min) | Motor power(kw) | Weight(t) | Remark | ||
| Diameter(m) | Length(m) | Inclination angle(%) | ||||||
| 1.4*33 | 1.4 | 33 | 3 | 0.9-1.3 | 0.39-3.96 | 18.5 | 47.5 | --- |
| 1.6x36 | 1.6 | 36 | 4 | 1.2-1.9 | 0.26-2.63 | 22 | 52 | --- |
| 1.8x45 | 1.8 | 45 | 4 | 1.9-2.4 | 0.16-1.62 | 30 | 78.2 | --- |
| 1.9x39 | 1.9 | 39 | 4 | 1.65-3 | 0.29-2.93 | 30 | 77.59 | --- |
| 2.0x40 | 2 | 40 | 3 | 2.5-4 | 0.23-2.26 | 37 | 119.1 | --- |
| 2.2x45 | 2.2 | 45 | 3.5 | 3.4-5.4 | 0.21-2.44 | 45 | 128.3 | --- |
| 2.5x40 | 2.5 | 40 | 3.5 | 9.0-10.5 | 0.44-2.44 | 55 | 149.61 | --- |
| 2.5x50 | 2.5 | 50 | 3 | 6.25-7.4 | 0.62-1.86 | 55 | 187.37 | --- |
| 2.5x54 | 2.5 | 54 | 3.5 | 6.9-8.5 | 0.48-1.45 | 55 | 196.29 | --- |
| 2.7x42 | 2.7 | 42 | 3.5 | 10.0-11.0 | 0.10-1.52 | 55 | 198.5 | --- |
| 2.8x44 | 2.8 | 44 | 3.5 | 12.5-13.5 | 0.437-2.18 | 55 | 201.58 | Suspension preheating kiln |
| 3.0x45 | 3 | 45 | 3.5 | 12.8-14.5 | 0.5-2.47 | 75 | 210.94 | --- |
| 3.0x48 | 3 | 48 | 3.5 | 25.6-29.3 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| 3.0x60 | 3 | 60 | 3.5 | 12.3-14.1 | 0.3-2 | 100 | 310 | |
| 3.2x50 | 3.2 | 50 | 4 | 40.5-42 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
