Specifications
Disk feeder ,mining machinery1. handy to operation
2. easy to maintain and repair
3. best service
Detailed Information of Disk Feeding Machine:
Disk feeder is applicable to the following 20mm ore powder feeding equipment.
Disk feeder by the device driver, feeder ontology, metrology and measurement devices belt conveyor components. Feeder and belt conveyor driven by a driving device, the device driver with the electromagnetic clutch of feeder opening, stop and change both functional role. Measurement conveyor belt speed is less than 1m / s, in order to speed with a velocity detection device, in order to prevent a deviation detection Weighing roll-adjusted.

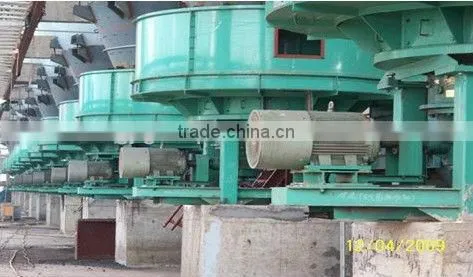

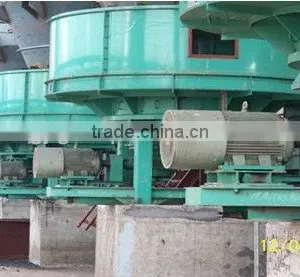

Disk feeder
1. China Toper Disk Feeding equipment
2.High quality disk feeder
3.High effeciency disk feeder
The disk feeder is feeding equipment of calculated by cubage, can feed to next procedure evenly,
Continuously, suitable for feeding various non stickiness., not suitable for high flowing property powder material, suitable for feeding the ore, coal, cement, Chalmette, limestone, clutch etc powder, grainy or small pieces material.
Type |
KR1000 |
KR1500 |
KR2000 |
KR1000 |
KR1500 |
KR2000 |
Disk diameter(mm) |
1000 |
1500 |
2000 |
1000 |
1500 |
2000 |
Disk rotate speed (mm) |
7.5 |
7.5 |
7.5 |
6.3 |
6.3 |
4.79 |
Max granularity (mm) |
<50 |
<50 |
<50 |
<50 |
<50 |
<50 |
Feeding capacity (m3/h) |
14 |
25 |
100 |
13 |
30 |
80 |
Power (kw) |
2.2 |
5.5 |
11 |
3 |
7.5 |
11 |
Weight (kg) |
740 |
1280 |
1754 |
1400 |
2705 |
5234 |
More information, please visit our web in English:
