Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Big Capacity Energy Saving Ball Mill for Sale

Big Capacity Energy Saving Ball Mill for Sale

Name: Big Capacity Energy Saving Ball Mill for Sale
Brand: Hong Ji
SKU: 139233695

Big Capacity Energy Saving Ball Mill for Sale thumbnail-1

Big Capacity Energy Saving Ball Mill for Sale photo-1

US$ 5,525 - 9,875 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Ball Mill

Motor Type:

AC Motor

Contact Supplier Request Quote Chat Now

Henan Hongji Mine Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin/qingdao/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Ball Mill

Motor Type AC Motor

Power(W) 245kw

Capacity(t/h) 8-43, 0.65-130

Place of Origin Henan, China

Brand Name Hong Ji

Model Number 2100*4500

Dimension(L*W*H) 1830mm*7000mm

Weight 30t

Certification ISO, ISO9001:2008

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Features of ball mill :
1. High efficiency;
2. Low energy cost;
3. High production capacity and economy

Henan Hongji Mine Machinery Co.,Ltd

Ball mill machine introduction:

Ball mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

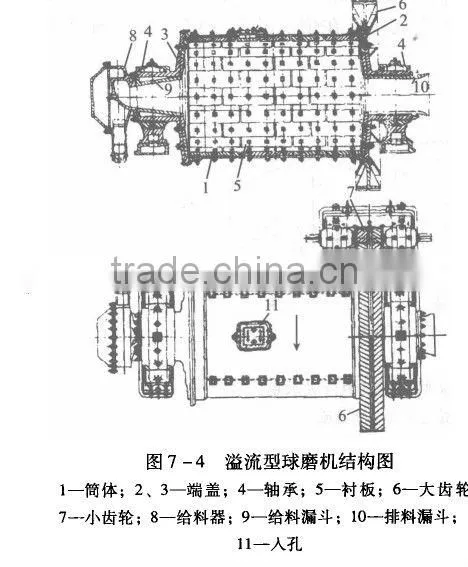

1. Cylinder 2,3. Cover 4.Bearing 5.Liner 6.Big gear wheel 7.Small gear wheel 8.Feeding machine

9. Feeding hopper 10.Discharging hopper 11.Manhole

Features of ball mill:

a.All kinds of specifications.
b. High efficiency and low consumption.
c. Stable working and easy operation.

Application of ball mill:

The main bearings of this machine put to use aligning spherical roller bearing double row,and can

reduce energy consumption 30%.The machine is used in cement,refractories,chemicals,nonferrous and ferrous metals and other industrial sectors of factories mines for grinding vrious ores or another materials grindig.

Main technical parameters of ball mill:

Model	Rotationna speed r/min	Ball load t	Feeding size mm	Output size mm	Capacity t/h	Power kw	Weight t
900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
1500×4500	27	11	≤25	0.074-0.4	3-6	90	21
1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	28
1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	210	34
2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	50
2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5

Product show:

Other detail:

Payment term	30% T/T in advance as deposite ,70% balance before the shipment or irrevocable 100% L/C at sight
Lead time	Generally 25-30 days after receiving deposit,maybe a little difference as per your quantity
Package	Export standard sea worthy packing(wooden box,nude packing) or as per requirement
Installnation	The Seller will send 1 technical engineer to the Buyer’s site as Technical Director for installation. Expenses should be paid by the buyer,include go abroad,round-trip tickets,hotel,food and not less than $50 dollars salary per day for each technical engineer.
