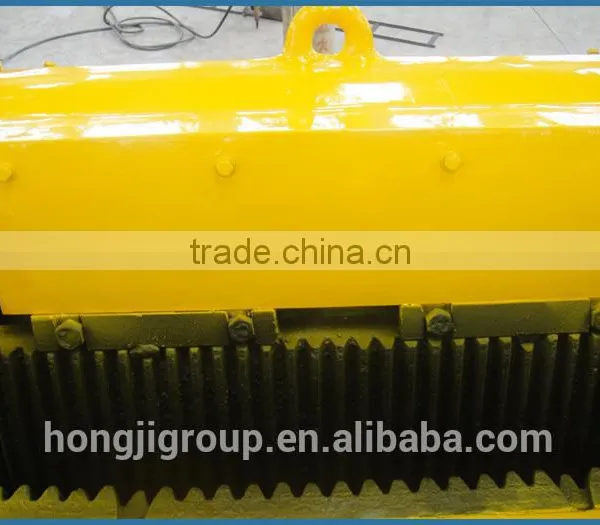

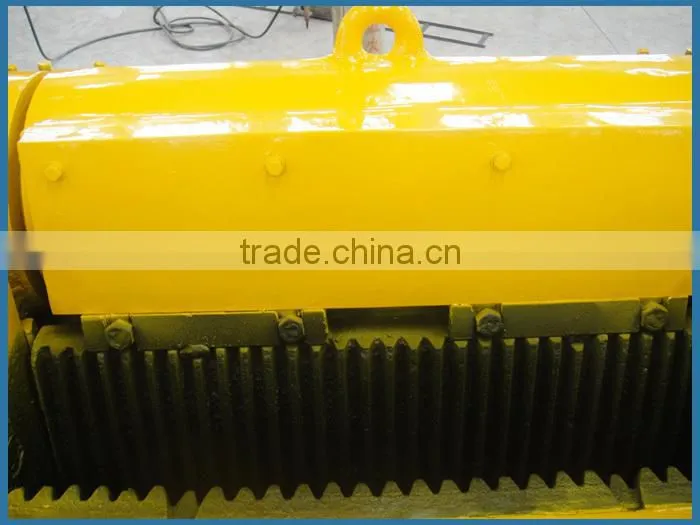

Help CenterPEX250X1200 Fine Jaw Crusher Machine Manufacturer
Related Products
-
PEX Fine Jaw Crusher Machine ManufacturerUS$ 10,500 - 11,500MOQ: 1 Set -
250X1000 Jaw Crusher Machine ManufacturerUS$ 10,500 - 11,500MOQ: 1 Set
-
750X1060 Jaw Stone Crusher Machine ManufacturerUS$ 10,500 - 11,500MOQ: 1 Set
-
750X1060 Stone Jaw Crusher With Reasonable PriceUS$ 10,500 - 11,500MOQ: 1 Set
-
Hot Sale Cone Crusher Csb 1200US$ 1,980 - 9,885MOQ: 1 Set

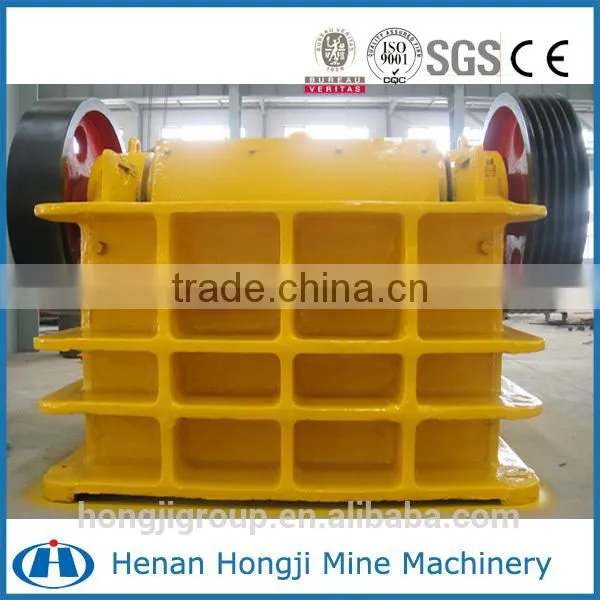

jaw stone crusher machine application:
the stone jaw crusher is widely used for crusher materials which compressive strength less than 350 Mpa, such as limestone, river stone, building materials.
Stone jaw crusher features:
1) with large opening size, high crushing ratio, it's widely used as first crushing during whole stone production plant
2) simple structurer, easy maintenace.
3) durable and hard-wearing jaw plates, can using longer time.
4) reasonable design, working reliable.

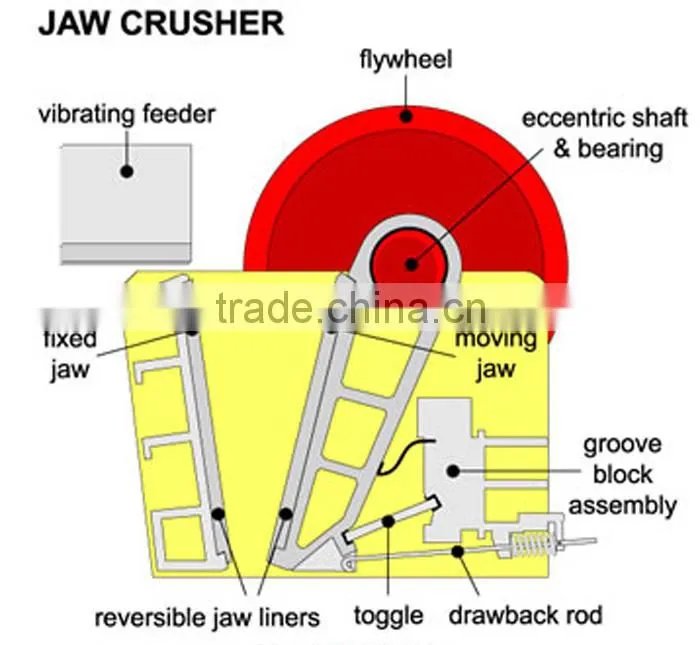

Stone jaw crusher working principle:

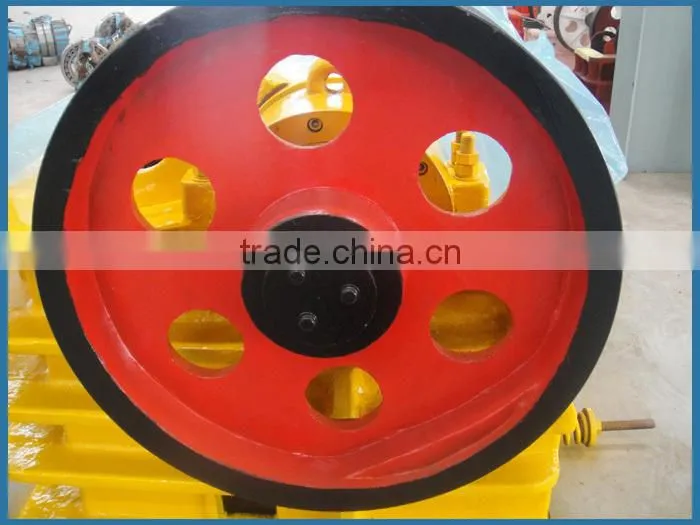

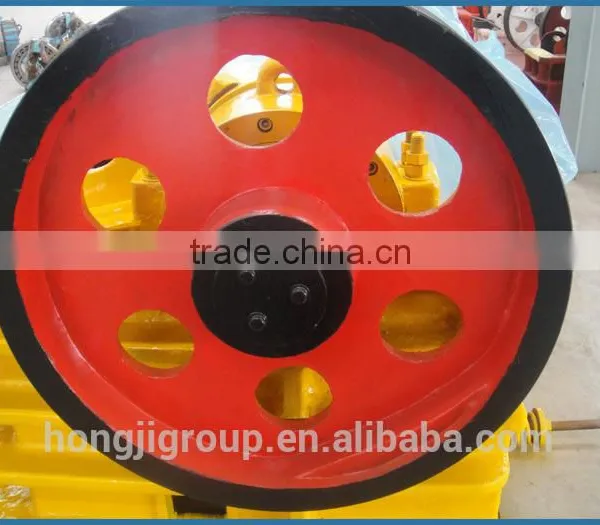

The PE serial jaw crusher mainly consists of main frame, movable( swing ) jaw, eccentric shaft, toggle plates etc. The electric motor passes power via V-belt pulley to the eccentric shaft to make the movable jaw moves in mesh, therefore, materials in crushing chamber can be crushed.
ISO Certificate New type jaw crusher technical parameters:
| Model |
Size of Feeder Opening (mm) |
Max. Feeding Size (mm) |
Capacity (t/h) |
Motor Power (KW) |
Overall Dimensions (mm) |
Weight (t) |
| PE150×250 | 150×250 | 125 | 1-3 | 5.5 | 896×745×935 | 1.2 |
| PE250×400 | 400×250 | 210 | 5-20 | 15 | 1430×1310×1340 | 2.2 |
| PE400×600 | 600×400 | 350 | 15-50 | 30 | 1700×1732×1653 | 6.8 |
| PE500×750 | 500×750 | 425 | 15-65 | 55 | 2035×1921×2000 | 12 |
| PE600×900 | 900×600 | 480 | 45-110 | 75 | 2290×2206×2370 | 17 |
| PE750×1060 | 1060×750 | 630 | 105-195 | 90 | 2655×2302×3110 | 29 |
| PE900×1200 | 900×1200 | 750 | 90-220 | 110 | 3800×3166×3045 | 50 |
| PEX150×750 | 750×150 | 125 | 5-15 | 15 | 1220×1480×1180 | 3.6 |
| PEX250×750 | 750×250 | 210 | 15-30 | 30 | 1667×1545×1020 | 5 |
| PEX250×1000 | 1000×250 | 210 | 15-50 | 37 | 1964×1550×1380 | 7 |
| PEX250×1200 | 1200×250 | 210 | 20-60 | 37 | 2192×1900×1950 | 8.5 |
| PEX300×1300 | 1300×300 | 250 | 20-70 | 55 | 2400×1930×1747 | 11.6 |
Besides, there are impact crusher, cone crusher, harmmer crusher, roller crusher, in our company, welcome you inquiry any equipment.
Customer visit
So far, Hongji machinery had been sold to Russia, Pakistan, Korea, Indonesia, Mexio, Australia, Spain, Ukraine, U.S.A ,South Africa, Arabia and so on.Welcome you visit our company.

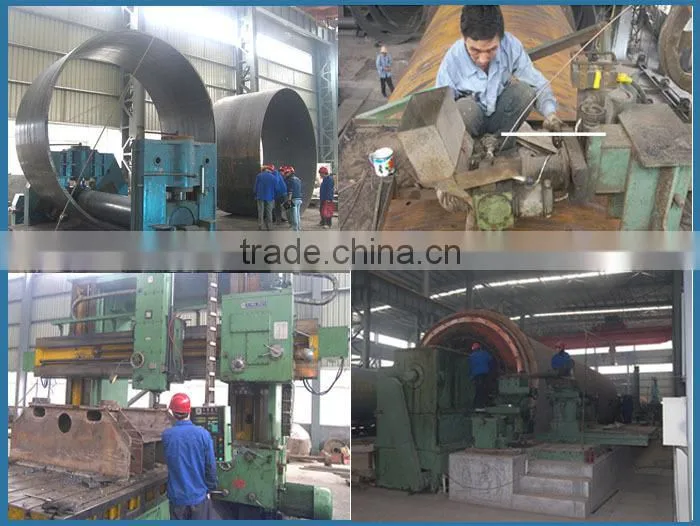

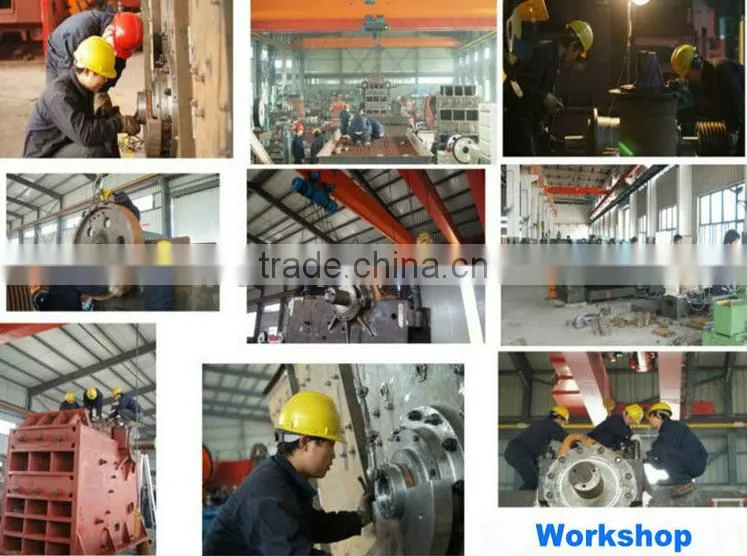

Workshop
So far, there are advanced process equipment in our workshop, such as rolling machine, welding machine, boring machine, which can ensure the machinery's quality
After-sell service
1) our engineer will guide and train worker to install and operate equipments, detailed installing drawing will be offered.
2) if there is any problem about equipments during reasonable operation within one year, we will ask engineer to solve problems for you.
All of our machines with CE,ISO,ETC.

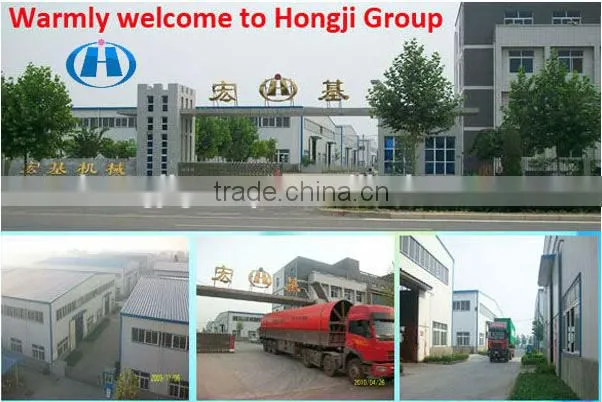

Henan hongji mine machinery Co.,Ltd is located in zhengzhou city ,henan province .With about 20years experenced big machinery factory in henan province .Mainly specilized in all kinds of crusher,shredder ,rotary kiln,dryer ,grinding machine,mining machine and so on , won many domestic and foreign customer to visit and cooperate.
Q:Are you manufacturer or trading company .
A: we are real manufacturer have our own big factory ,anytime welcome your visiting .
Q: What do you have for machine installing ?
A: We have engineer for technical guidance and oversea installing guide .
Q: How can you promise your product quality ?
A: We have about 20 years business experience,we got CE,ISO and so on for our products.but the most important we win our customer with our best quality and honest.
............
Any more question please contact with us and welcome your visiting at our factory .
Ms. Elina Wang
Mob/Whatsapp/viber/wechat:0086-15617710309
Skype:wang.elina2
