CE Certification Disc Vibratory Feeder Mechanical Feeder
US$ 100 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
according to different model
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISO Certification Cement Disc Vibratory FeederUS$ 100 - 1,500MOQ: 1 Set -
2015 Factory Supplying Floating Feed Pellet Making Extruder/floating Fish Feed Pellet Machine for SaleUS$ 200 - 850MOQ: 1 Set
-
Manufacturer Price Floating Feed Pellet Machine/ Floating Fish Feed Extruder Machine Made in ChinaUS$ 200 - 850MOQ: 1 Set
-
Hot-selling and High Quality Small Cattle Feed Pellet Making Machine Grass Feed Pellet MachineUS$ 200 - 850MOQ: 1 Set
-
Capacity 80-100kg/h Full Automatic Feeding Machine for SaleUS$ 200 - 850MOQ: 1 Set
Condition
New
Application
according to different model
Power Type
Electric
Capacity(t/h)
1.4-7.6(m3/h)
Place of Origin
Henan, China
Brand Name
Hongyuan
Model Number
DK8
Power(W)
1100W
Dimension(L*W*H)
1085*1089*1520
Weight
555
Certification
ISO,CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
The Description

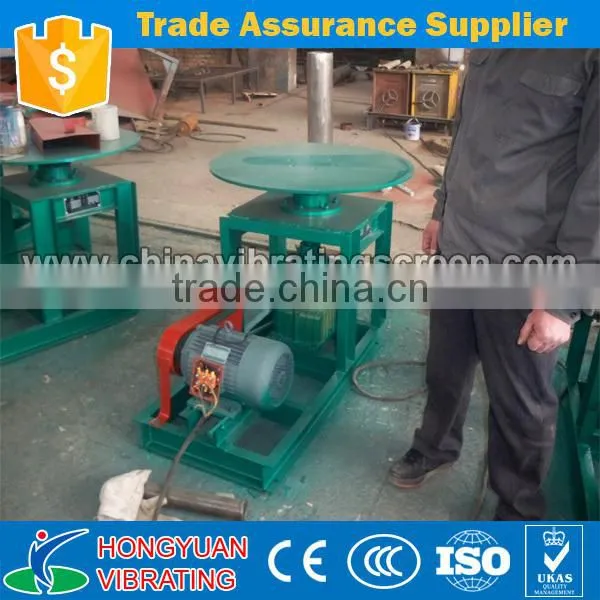

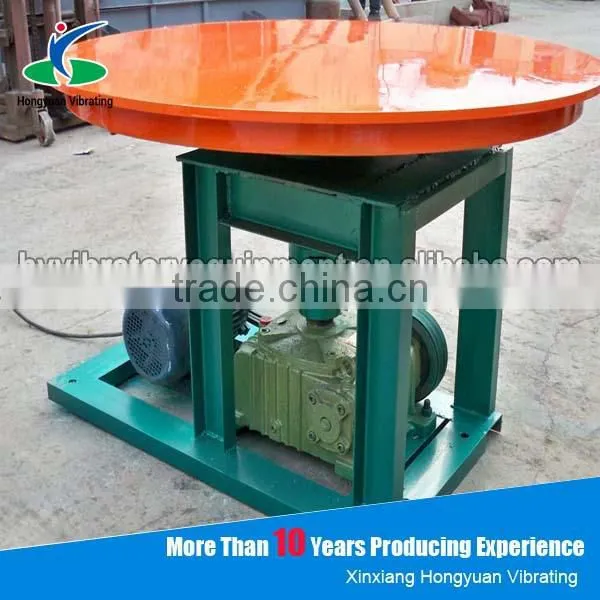

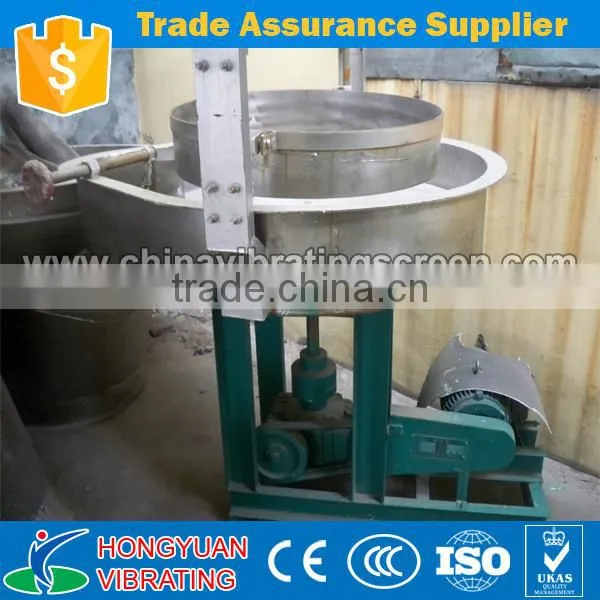

CE certification disc vibratory feeder Chinese feeder is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure. It is a fine powdery material feeder suitable for non cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding. Disc feeder is applicable for feeding powdery ore material less than 20mm.
There are opening hang type(DK), Closing hang type(DB), Opening horizontal type(KR), Closing horizontal type(BR).

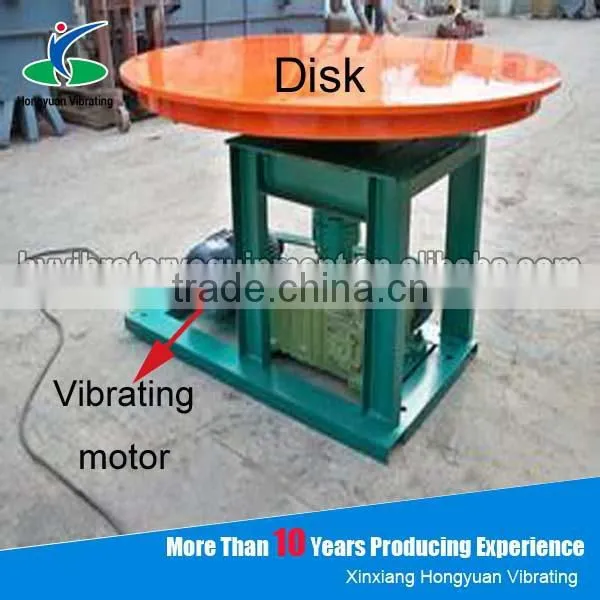

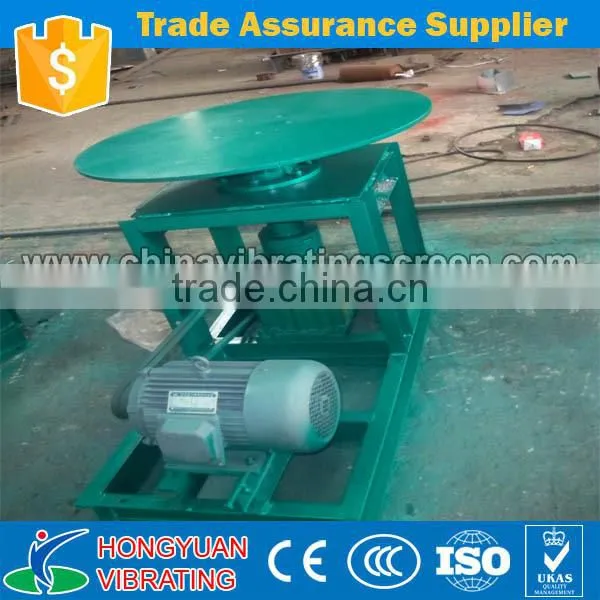

Product Structure
Disc feeder is composed of driving device, feeder unit, belt conveyor for metering use and metering device. Feeder and belt conveyor are drived by a set of driving device. The driving device of electromagnetic clutch can switch off or switch on the feeder. There is speed inspecting device to test the belt conveyor speed which shall be less than 1m/s, and measuring bar to adjust the weighing roller's position to prevent deflection.
The Advantages and Benefits of Disc Feeder
1. Simple structure, easy-to-adjust and excellent in performance.
2. Disk Feeder is suitable for conveying of materials with granularity less than 50mm,
3. Easy-to-flow or hard-to-flow materials.
2. Disk Feeder is suitable for conveying of materials with granularity less than 50mm,
3. Easy-to-flow or hard-to-flow materials.
Technical Parameters
| Model | Disk diamater |
Capacity(m3/h) | Revolving speed (r/min) |
Particle Size (mm) |
Installe type | Reducer | Motor | Weight(Kg) | Overall size (L*W*H) |
||
| Model | Speed ratio | Model | Power | ||||||||
| DK6 | 600 | 0.6-3.9 | 8 | 25 | Opening hang type | 5308-01 | 53 | Y90L-6 | 1.1 | 403 | 855*960*925 |
| JZTY21-6 | |||||||||||
| DK8 | 800 | 1.4-7.6 | 8 | 30 | Opening hang type | 5308-1-0 | 53 | Y90L-6 | 1.1 | 555 | 1085*1089*1520 |
| JZTY21-4 | |||||||||||
| DK10 | 1000 | 2.5-16.7 | 7.5 | 40 | - | 5312-01 | 52 | Y100L-6 | 1.5 | 827 | 1350*1350*1427 |
| JYTY22-4 | |||||||||||
| DK13 | 1300 | 4.2-27.9 | 6.5 | 50 | - | 5316-01 | 54 | Y132S-6 | 3 | 1150 | 1735*1516*1427 |
| JZTY32-4 | |||||||||||
| DK16 | 1600 | 7-18.6 | 6 | 60 | - | 5319-01 | 62 | Y132M1-6 | 4 | 2125 | 2115-2050*1535 |
| JYTY41-4 | |||||||||||
| DK18 | 1800 | 9.2-60 | 5 | 70 | - | 5322-01 | 62 | Y132M2-6 | 5.5 | 2900 | 2365*2030*1963 |
| JZTY42-4 | |||||||||||
| DK20 | 2000 | 13.6-38 | 5 | 80 | - | 5322-01 | 62 | Y132M2-6 | 5.5 | 3140 | 2620*2150*2165 |
| JZTY42-4 | |||||||||||
| DB6 | 600 | 0.6-3.9 | 8 | 25 | Closing hang type | 5308-01 | 53 | Y90L-6 | 1.1 | 490 | 855*980*1052 |
| JZTY21-4 | |||||||||||
| DB8 | 800 | 1.1-7.6 | 8 | 30 | - | 5308-1-0 | 52 | Y90L-6 | 1.1 | 597 | 1085*1089*1152 |
| JZTY21-4 | |||||||||||
| DB10 | 1000 | 2.5-16.7 | 7.5 | 40 | - | 5212-01 | 52 | Y100L-6 | 1.5 | 906 | 1263*1350*1237 |
| JZTY22-4 | |||||||||||
| DB13 | 1300 | 4.2-27 | 6.5 | 50 | - | 5316-01 | 54 | Y132S-6 | 3 | 1240 | 1516*1735*1597 |
| JZTY32-4 | |||||||||||
| KR10 | 1000 | 0-14 | 7.5 | 40 | Opening hang type | TZQ350 | 31.5 | Y112M-6 | 2.2 | 740 | 720*1430*650 |
| KR15 | 1500 | 0-25 | 7.5 | 55 | - | JZQ400 | 31.5 | Y132M2-6 | 5.5 | 1280 | 920*1750*720 |
| KR17 | 1700 | 0-50 | 7.5 | 60 | - | JZQ400-Ⅲ-1Y | 31.5 | Y132M2-6 | 5.5 | 1320 | 920*1750*720 |
| KR20 | 2000 | 0-100 | 7.5 | 80 | - | JZQ500-Ⅲ-1Y | 31.5 | Y160L-6 | 11 | 1754 | 1030*1965*810 |
| BR10 | 1000 | 0-13 | 6.3 | 50 | Closing hang type | ZS50-8-ⅠⅡ | 63 | Y132S-6 | 3 | 1223 | 1932*1520*895 |
| BR15 | 1500 | 0-30 | 6.3 | 50 | - | ZS75-3-ⅠⅡ | 63 | Y160M-6 | 7.5 | 2710 | 2841*1920*1122 |
| BR20 | 2000 | 0-80 | 4.79 | 50 | - | BR20-2 | 87 | Y160L-6 | 11 | 5234 | 3374*2016*1122 |
| JZTY61-4 | 15 | ||||||||||
| BR25 | 2500 | 0-120 | 4.72 | 50 | - | BR25-2 | 88.2 | Y200L1-6 | 18.5 | 7747 | 3790*2500*1122 |
| JZTY71-4 | 22 | ||||||||||
| BR30 | 3000 | 180 | 3.1 | 20 | - | BR30-2 | 128.87 | Y200L2-6 | 22 | 1335 | 4600*2958*1420 |
