2015 newest mineral processing disk feeder from Henan xianxiang
- 300 Set / Sets per Month
- Shanghai/Tianjin/Qingdao
- T/T Credit Card
- Hongyuan Vibrating feeder / vibrating coal feeder / sand hoppers feeder
- High Quality Cheap Custom Coal reciprocating Hopper Feeder
- New arrival K type reciprocating coal feeder
- Electromagnetic mining vibrating feeder with reasonable price
- Mining Equipment Vibrating grizzly screen Feeder
- Vibrating Feeder use in cement / limestone production line
Product Details
Condition: | New | Application: | ore, coal, sand, stone, building materials | Power Type: | Electric |
Capacity(t/h): | 300 set/month | Place of Origin: | Henan, China | Brand Name: | Hongyuan |
Model Number: | KR15 | Power(W): | 5.5KW | Dimension(L*W*H): | as your required |
Weight: | AS REQUIRED | Certification: | ISO,CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard wooden case or according to your requirement.
Product Description

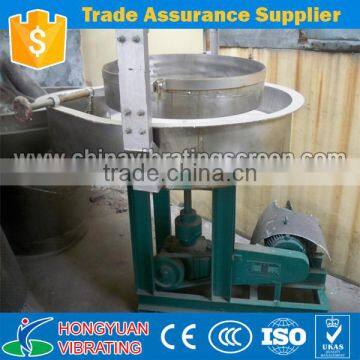

2015 newest mineral processing disk feeder from Henan xianxiang
Disk Feeder is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure. It is a fine powdery material feeder suitable for non cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding. Disc feeder is applicable for feeding powdery ore material less than 20mm.
There are opening hang type(DK), Closing hang type(DB), Opening horizontal type(KR), Closing horizontal type(BR).
Model | Disk diamater | Capacity(m3/h) | Revolving speed (r/min) | Particle Size (mm) | Installe type | Reducer | Motor | Weight(Kg) | Overall size (L*W*H) | ||
Model | Speed ratio | Model | Power | ||||||||
DK6 | 600 | 0.6-3.9 | 8 | 25 | Opening hang type | 5308-01 | 53 | Y90L-6 | 1.1 | 403 | 855*960*925 |
JZTY21-6 | |||||||||||
DK8 | 800 | 1.4-7.6 | 8 | 30 | Opening hang type | 5308-1-0 | 53 | Y90L-6 | 1.1 | 555 | 1085*1089*1520 |
JZTY21-4 | |||||||||||
DK10 | 1000 | 2.5-16.7 | 7.5 | 40 | - | 5312-01 | 52 | Y100L-6 | 1.5 | 827 | 1350*1350*1427 |
JYTY22-4 | |||||||||||
DK13 | 1300 | 4.2-27.9 | 6.5 | 50 | - | 5316-01 | 54 | Y132S-6 | 3 | 1150 | 1735*1516*1427 |
JZTY32-4 | |||||||||||
DK16 | 1600 | 7-18.6 | 6 | 60 | - | 5319-01 | 62 | Y132M1-6 | 4 | 2125 | 2115-2050*1535 |
JYTY41-4 | |||||||||||
DK18 | 1800 | 9.2-60 | 5 | 70 | - | 5322-01 | 62 | Y132M2-6 | 5.5 | 2900 | 2365*2030*1963 |
JZTY42-4 | |||||||||||
DK20 | 2000 | 13.6-38 | 5 | 80 | - | 5322-01 | 62 | Y132M2-6 | 5.5 | 3140 | 2620*2150*2165 |
JZTY42-4 | |||||||||||
DB6 | 600 | 0.6-3.9 | 8 | 25 | Closing hang type | 5308-01 | 53 | Y90L-6 | 1.1 | 490 | 855*980*1052 |
JZTY21-4 | |||||||||||
DB8 | 800 | 1.1-7.6 | 8 | 30 | - | 5308-1-0 | 52 | Y90L-6 | 1.1 | 597 | 1085*1089*1152 |
JZTY21-4 | |||||||||||
DB10 | 1000 | 2.5-16.7 | 7.5 | 40 | - | 5212-01 | 52 | Y100L-6 | 1.5 | 906 | 1263*1350*1237 |
JZTY22-4 | |||||||||||
DB13 | 1300 | 4.2-27 | 6.5 | 50 | - | 5316-01 | 54 | Y132S-6 | 3 | 1240 | 1516*1735*1597 |
JZTY32-4 | |||||||||||
KR10 | 1000 | 0-14 | 7.5 | 40 | Opening hang type | TZQ350 | 31.5 | Y112M-6 | 2.2 | 740 | 720*1430*650 |
KR15 | 1500 | 0-25 | 7.5 | 55 | - | JZQ400 | 31.5 | Y132M2-6 | 5.5 | 1280 | 920*1750*720 |
KR17 | 1700 | 0-50 | 7.5 | 60 | - | JZQ400-Ⅲ-1Y | 31.5 | Y132M2-6 | 5.5 | 1320 | 920*1750*720 |
KR20 | 2000 | 0-100 | 7.5 | 80 | - | JZQ500-Ⅲ-1Y | 31.5 | Y160L-6 | 11 | 1754 | 1030*1965*810 |
BR10 | 1000 | 0-13 | 6.3 | 50 | Closing hang type | ZS50-8-ⅠⅡ | 63 | Y132S-6 | 3 | 1223 | 1932*1520*895 |
BR15 | 1500 | 0-30 | 6.3 | 50 | - | ZS75-3-ⅠⅡ | 63 | Y160M-6 | 7.5 | 2710 | 2841*1920*1122 |
BR20 | 2000 | 0-80 | 4.79 | 50 | - | BR20-2 | 87 | Y160L-6 | 11 | 5234 | 3374*2016*1122 |
JZTY61-4 | 15 | ||||||||||
BR25 | 2500 | 0-120 | 4.72 | 50 | - | BR25-2 | 88.2 | Y200L1-6 | 18.5 | 7747 | 3790*2500*1122 |
JZTY71-4 | 22 | ||||||||||
BR30 | 3000 | 180 | 3.1 | 20 | - | BR30-2 | 128.87 | Y200L2-6 | 22 | 1335 | 4600*2958*1420 |
1. Simple structure, easy-to-adjust and excellent in performance.
2. Disk Feeder is suitable for conveying of materials with granularity less than 50mm,
3. Easy-to-flow or hard-to-flow materials.
Disc feeder is composed of driving device, feeder unit, belt conveyor for metering use and metering device. Feeder and belt conveyor are drived by a set of driving device. The driving device of electromagnetic clutch can switch off or switch on the feeder. There is speed inspecting device to test the belt conveyor speed which shall be less than 1m/s, and measuring bar to adjust the weighing roller's position to prevent deflection.
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen and nonvibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator).
Our main product
Feel free to contact Cathy at any time, or you can write down the problems and doubts under the block, I will reply you in 24 hours.
Company Profile
Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it.
The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image.
Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us.
For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process.
At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
