50-160mm Pvc Pipe Extrusion Machine
US$ 30000 - 100000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BENK
Place of Origin:
China
Model Number:
kpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
35 days
Related Products
-
16-800mm PVC Plastic Pipe Extrusion Machine for Three Layer Co-extrusion PipeUS$ 30000 - 100000MOQ: 1 Set -
110-200mm Waste Water PVC Pipe Extrusion Line With ABB InverterUS$ 30000 - 100000MOQ: 1 Set
-
20-800mm PVC Pipe Extrusion LineUS$ 30000 - 100000MOQ: 1 Set
-
PVC Plastic Pipe Extruding Machine With Diameter 90-250mm for DrainageUS$ 30000 - 100000MOQ: 1 Set
-
20-63mm Double Out PVC Pipe Extrusion Line for Electric Conduit PipeUS$ 30000 - 45000MOQ: 1 Set
Brand Name
BENK
Place of Origin
China
Model Number
kpm
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Weight
12-20T
Dimension(L*W*H)
24X2X2.8M
Voltage
380V 50HZ
Application
Pipe
Condition
New
Power(W)
95-183KW
Automatic Grade
automatic
Plastic Processed
PVC
Screw Design
Double-screw
50-160mm pvc pipe extrusion machine
1, pvc pipe extrusion machine production flow
Raw material+agency----------mixing---loader-----force feeding-------extrusion------------extrusion mould—vacuum forming tank---spray cooling tank --haul-off---cutter----stacker
2, pvc pipe extrusion machine each part machinery's function introduction
(1), raw material mixing: is PVC stabilizers, plasticizers, antioxidants and other accessories, scale, technology has added into a high-speed mixer, the material and mechanical friction material from temperature to set the process temperature, and then the cold mixing machine material to 40-50 degrees; this can be added to the extruder hopper.

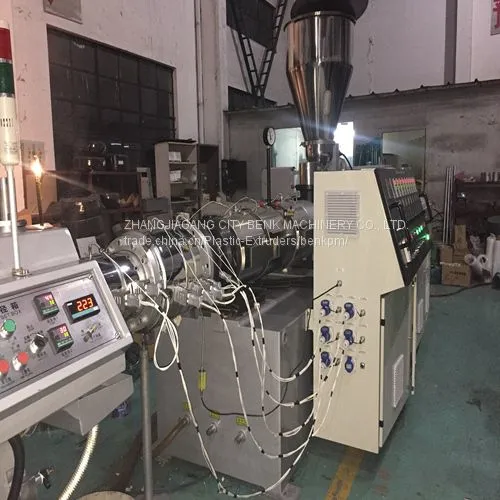

(2), The extruder portion: the machine equipped with a quantitative feeding device, so that the extrusion amount and feeding amount can be matched, to ensure that the products stable extrusion. Due to the characteristics of conical screw, a feeding section having a larger diameter, the material heat transfer area and the shear velocity is relatively large, is conducive to the plastics materials in metering section of screw, small diameter, reducing the heat transfer area and on the shear rate of melt, the melt at lower temperatures and extrusion. Screw in the barrel rotates, the PVC mixture plasticizing to head, thereby achieving compaction, melting, mixing and homogenizing; exhaust gas, dehydration of. The feeding device and a screw drive device with variable frequency speed control, can realize the synchronous speed control.
(3), Extrusion die head part : by compaction, melting, mixing of PVC, with follow-up materials by the screw to die, extrusion die head is the key part of the pipe forming

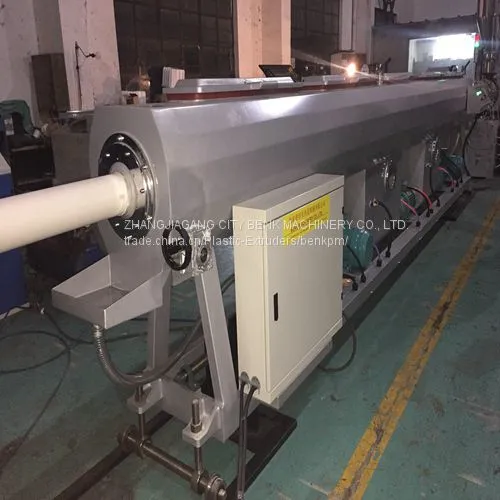

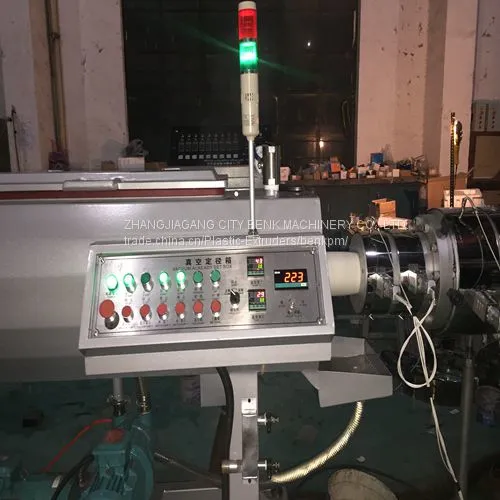

(4), Vacuum shaping water tank for pipes, cooling stereotypes, stereotypes water tank is provided with a vacuum for shaping and cooling of the vacuum system and a water circulating system, stainless steel tank, circulating water spray cooling, vacuum shaping water tank is provided with a mobile device, and left and right height regulating manual device.
(5), hauling machine for continuously, automatically and is cooled to harden the pipes from the head out, variable frequency speed regulation

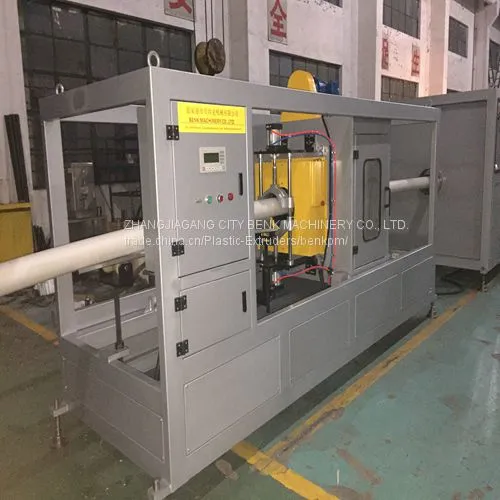

(6), Cutting machine: by the travel switch according to the length required control, automatic cutting, and delay over the frame, implementation of water production, cutting machine with permanent switch signal for instruction, complete the cutting process, the cutting process and pipe running to maintain synchronization, cutting process by the electric and pneumatic drive, cutting machine is provided with a dust suction device, the cutting chips produced by timely aspirate, and recovery
(7), stacker: material turning movement from the cylinder through the gas path control to achieve erection, turning a limit device, when the cutting saw to cut the pipe, pipe to transport, after time delay, the cylinder into the work, realize the turning action, reach the discharging purpose. After unloading, the delay of several seconds automatic reset, waiting for the next cycle.
3. pvc pipe extrusion machine machinery technical parameter
| extrusion machinery | SJZ65/132 conical double screw extruder |
| pipe range | 50-160mm |
| Main motor | 37KW |
| Motor speed adjusting | 37KW ABB inverter |
| vacuum and water pump | 5.5KW + 5.5kW |
| hauling motor | 1.1KW*3pcs |
| cutting motor | 1.5kw |
| Area need | 24X2X2.8m |
pvc pipe extrusion machine models:
| Model | Pipe spec(mm) | Conical twin screw extruder |
Max.output
(kg/h)
|
Total power(kw) |
| KPM63-PVC | Φ20-Φ63 | SJZ65/132 | 180-300 | 104 |
| KPM160-PVC | Φ63-Φ160 | SJZ65/132 | 180-300 | 105 |
| KPM250-PVC | Φ75-Φ250 | SJZ80/156 | 300-450 | 110 |
| KPM315-PVC | Φ200-Φ315 | SJZ80/156 | 300-450 | 216 |
| KPM450-PVC | Φ200-Φ450 | SJZ92/188 | 650-750 | 290 |
| KPM630-PVC | Φ315-Φ630 | SJZ92/188 | 750-850 | 350 |
| KPM800-PVC | Φ500-Φ800 | SJZ135/31 | 950-1100 | 410 |
