Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > HIGH EFFICIENCY MULTI STRANDS PVC PIPE PRODUCTION LINE WITH PLC
HIGH EFFICIENCY MULTI STRANDS PVC PIPE PRODUCTION LINE WITH PLC
US$ 30000 - 45000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BENK
Place of Origin:
China
Model Number:
kpm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
35 days
Related Products
-
Four Out 16-32mm PVC Small Pipe Extrusion Line With Factory PriceUS$ 30000 - 45000MOQ: 1 Set -
20-63mm Double Out PVC Pipe Extrusion Line for Conduit Pipe MakingUS$ 30000 - 45000MOQ: 1 Set
-
50-160mm Pvc Pipe Extrusion MachineUS$ 30000 - 100000MOQ: 1 Set
-
16-800mm PVC Plastic Pipe Extrusion Machine for Three Layer Co-extrusion PipeUS$ 30000 - 100000MOQ: 1 Set
-
110-200mm Waste Water PVC Pipe Extrusion Line With ABB InverterUS$ 30000 - 100000MOQ: 1 Set
Brand Name
BENK
Place of Origin
China
Model Number
kpm
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Weight
12-20T
Dimension(L*W*H)
24X2X2.8M
Voltage
380V 50HZ
Application
Pipe
Condition
New
Power(W)
95-183KW
Automatic Grade
automatic
Plastic Processed
PVC
Screw Design
Double-screw
HIGH EFFICIENCY PVC MULTI STRANDES PIPE PRODUCTION LINE WITH PLC

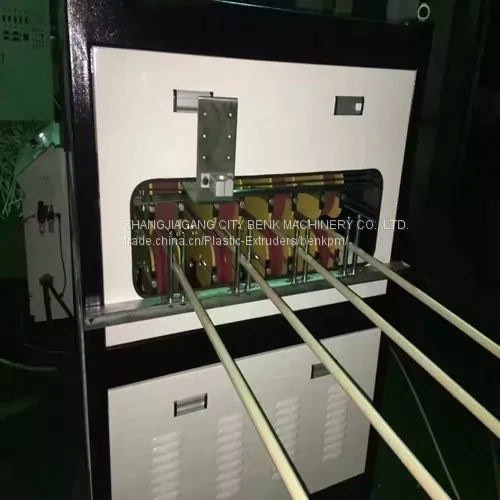

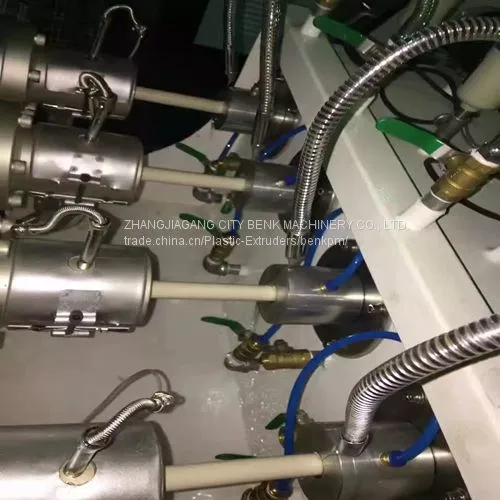

High quality PVC Multi Strands Pipe Extrusion Line with advanced technology which is mainly used in making PVC water pipe and PVC conduit pipe, it has dual strands type and four strands type, which allows to produce two pipes or four pipes together at the same time, greatly improved the output, welcomed by customers all over the world.
SPECIFICATIONS FOR HIGH EFFICIENCY PVC MULTI STRANDES PIPE PRODUCTION LINE | ||||
Model |
Pipe spec(mm) |
Extruder |
Max.output
(kg/h)
|
Main motor power(KW) |
KPM32-PVC 4-Strands |
Φ16-Φ40 |
GSZ65/132 |
200-250 |
96 |
KPM63-PVC 2-Strands |
Φ20-Φ63 |
GSZ65/132 |
200-250 |
110 |
KPM110-PVC 2Strands |
Φ63-Φ110 |
GSZ80/156 |
350-400 |
136 |
PVC Pipe Production Line Main Technical Parameters
| Model | Pipe diameter | Extruder | Max. Capacity | Max. speed | Total Power | Total Length |
| PVC-63 x2 | Φ16-63mm x 2 | SJZ 65/132 | 250 kg/hr | 10 m/min | 83 kw | 20m |
| PVC-63 | Φ16-63 mm | SJZ 51/105 | 120 kg/hr | 10 m/min | 45 kw | 20m |
| PVC-110 | Φ50-110 mm | SJZ 55/110 | 150 kg/hr | 6 m/min | 60 kw | 24m |
| PVC-160 | Φ75-160 mm | SJZ 65/132 | 300 kg/hr | 5 m/min | 100 kw | 24m |
| PVC-250 | Φ125-250 mm | SJZ 80/156 | 400 kg/hr | 3.5 m/min | 120 kw | 28m |
| PVC-315 | Φ160-315 mm | SJZ 80/156 | 400 kg/hr | 3 m/min | 160 kw | 28m |
| PVC-450 | Φ250-450 mm | SJZ 92/188 | 700 kg/hr | 1.5 m/min | 200 kw | 36m |
| PVC-630 | Φ315-630 mm | SJZ 92/188 | 700 kg/hr | 0.9 m/min | 230 kw | 36m |
