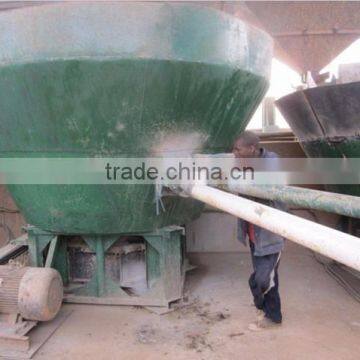

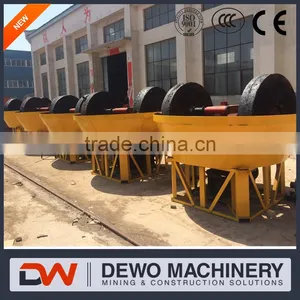

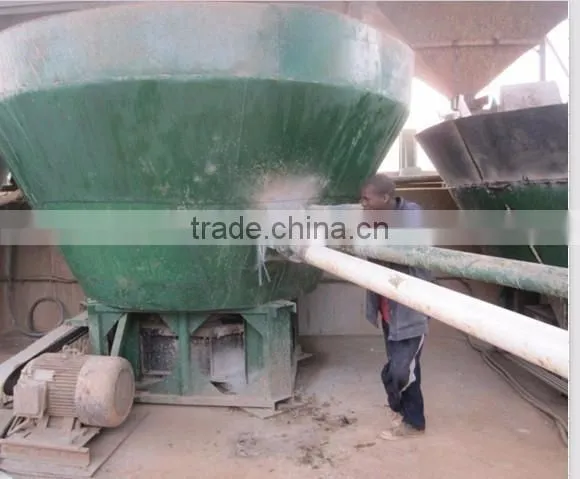

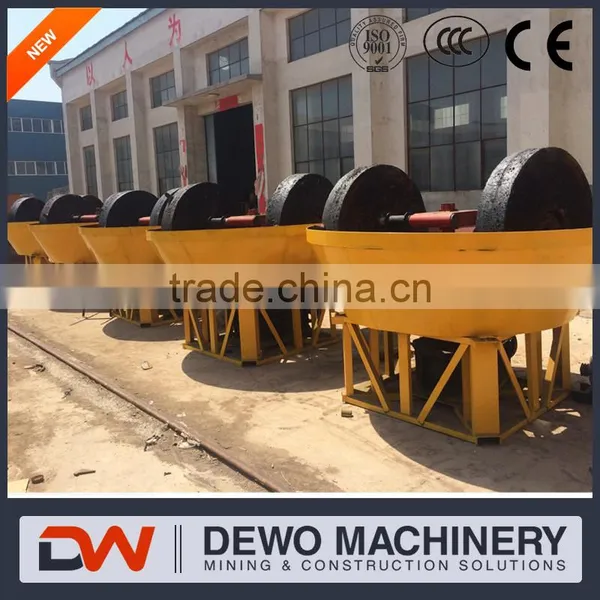

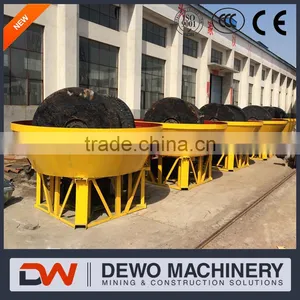

1600A wet pan mill
- 50 Set / Sets per Month
- Qingdao Port Shanghai Port Tianjin Port
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Wet pan gold grinding machine | Application: | Mining/chemical/construction/coal |
Motor Type: | AC Motor | Power(W): | 5.5-37kw | Capacity(t/h): | 5-20tph |
Place of Origin: | Henan, China | Brand Name: | Dewo | Model Number: | 1600A |
Dimension(L*W*H): | depend on capacity | Weight: | 3-16T | Certification: | ISO9001:2008 |
Warranty: | One Year Excluding Wearing Parts | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description

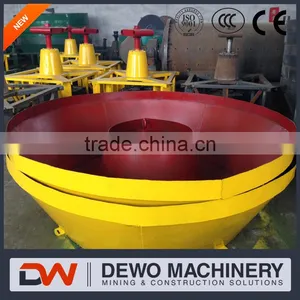

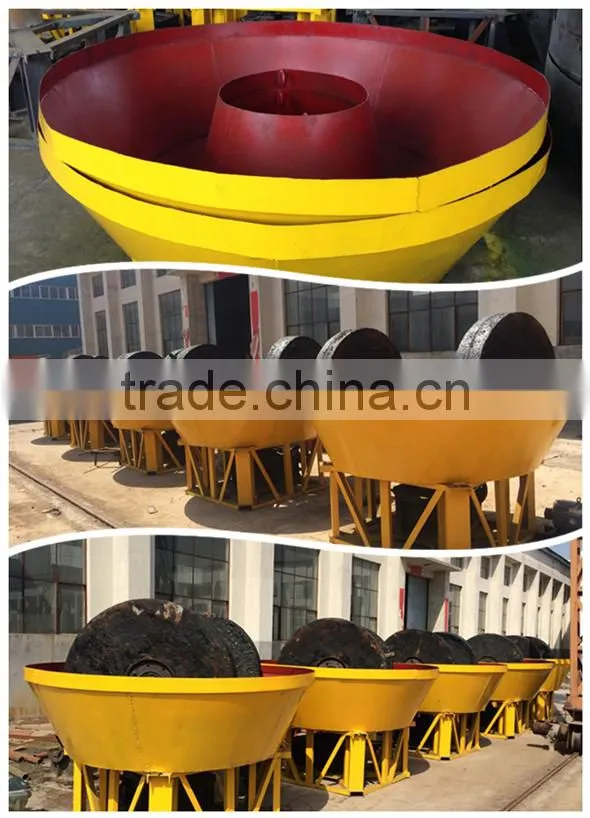

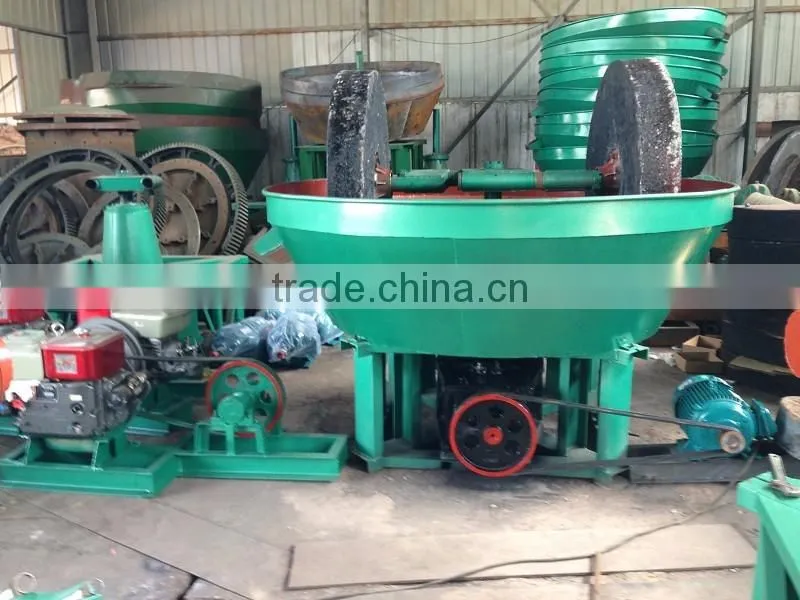

wet pan mill suit for mineral processing is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. It mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc. It grinds ores by wheel driving force: firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise. The wheels can revolve around the vertical shaft of the pan mill, at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are then pressed, rubbed and grinded repeatedly.
Features:
1 wet pan mill suit for mineral processing after the installation is completed to gold grinding machine groove bottom 5 kilograms of mercury begins normal operation.
2 each class receive once the Sands, the shift added to 1 kg of mercury to receive the grind at the end of the Sands and mercury, the mercury received gold equipment, with a relatively high density of red cloth mercury screwed out to the package, open the red cloth which left Sands. One kilogram of mercury each class started on it. Containing one is grasping the cloth of gold or grab the gold behind the blanket and put on the mercury board can receive the gold.
Use and Maintenance:
1.The normal operation of the mill, before they start feeding.
2, this machine prohibit strip start, the outage at boot time, you must first clean up the residual ore in the middle of the milled slot and then start.
3, should be uniform feeding not erratic, it is best to use the feeder.
4, bearing frequent butter, gear box or car rear axle with frequent checks whether the loss of gear oil.
5, regular checks of the various parts of the screw is loose.
6.Found bearing damage must be promptly replaced, shaft eccentric avoid damage to other parts
7 mill runtime to pay attention to that the reducer or bearing part of the presence or absence of abnormal sound, whether the temperature is too high, the motor current is too large irregularities; should be shut down immediately if the above phenomenon, exclude.
Technical Data:
Model | Specification | Input size(mm) | Rotate Speed (r/min) | Powder(kw) | Weight(t) |
1600A | 1600×400×200×500±20mm | 30mm | 20-22 | 25KW | 14.5 |
1500A | 1500×350×200×460±20mm | 20-22 | 22KW | 13.5 | |
1500B | 1500×350×150×460±20mm | 20-22 | 22KW | 12.3 | |
1500C | 1500×300×150×420±20mm | 20-22 | 22KW | 11.3 | |
1400A | 1400×250×150×350±20mm | 16-18 | 18.5kw | 8.5 | |
1400B | 1400×250×150×350±20mm | 21-23 | 18.5kw | 8.5 | |
1350A | 1350×250×150×350±20mm | 16-18 | 18.5kw | 8 | |
1350B | 1350×250×150×350±20mm | 21-23 | 18.5kw | 8 | |
1300A | 1300×250×150×350±20mm | 16-18 | 15kw | 7.5 | |
1300B | 1300×250×150×350±20mm | 21-23 | 15kw | 7.5 | |
1200A | 1200×200×80×250±20mm | 17-19 | 7.5kw | 5.5 | |
1200B | 1200×200×80×250±20mm | 23-25 | 7.5kw | 5.5 | |
1100A | 1100×200×80×250±20mm | 17-19 | 7.5kw | 5 | |
1100B | 1100×200×80×250±20mm | 23-25 | 7.5kw | 5 | |
1000 | 1000×200×80×250±20mm | 13-15 | 5.5kw | 4.5 | |
900 | 900X200X80 | 10-15 | 5.5kw | 3 |
Stone Gallery
Customer visits
Factory show
Dewo Service
Our service
Dewo can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Dewo Machinery will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
About Training
Dewo machinery could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Dewo are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
