Product Description

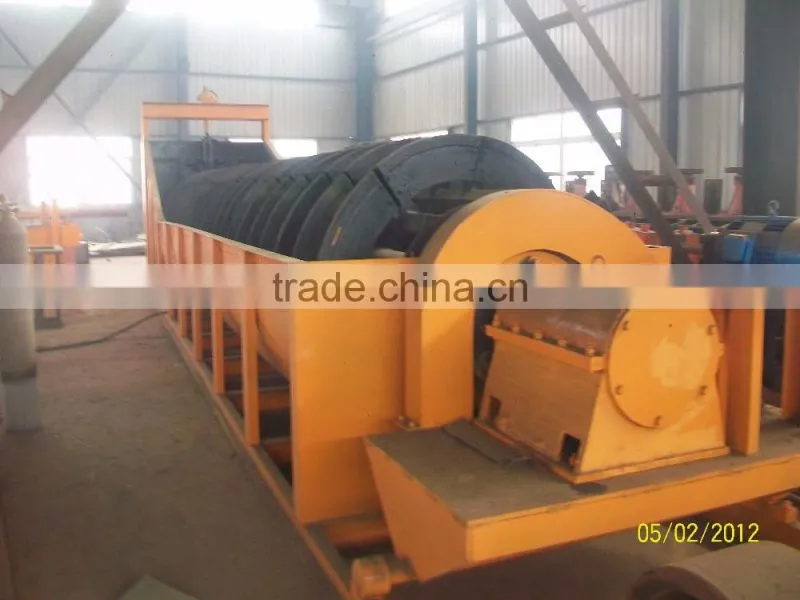

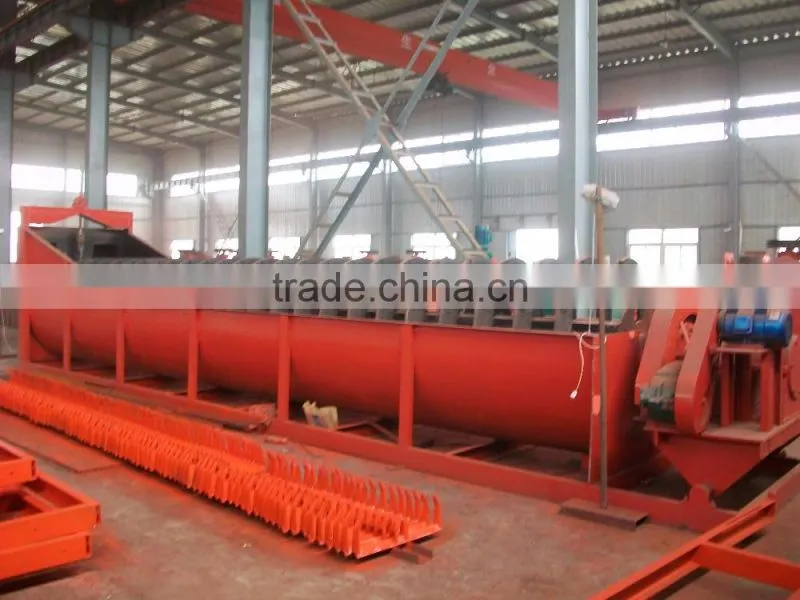

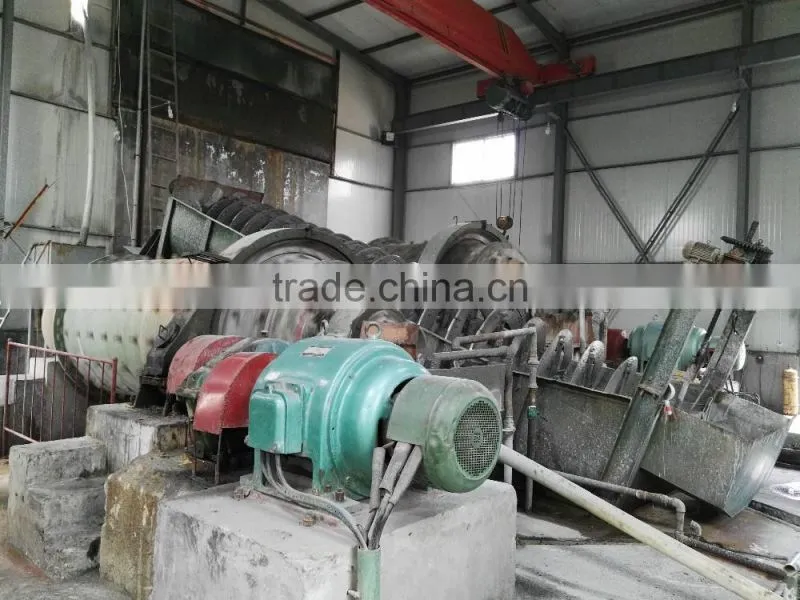

The mill and classifier are a correlated set. The effect of classifier has impact on the efficiency of mill. So it is a key point in the mineral separation process to select well the classifying equipment. The spiral classifier can be divided into the single spiral classifier and double spiral classifier according to the spiral axle quantity.
Spiral Classifiers are suitable for:
1. Separation of fine particles and liquid from coarse particles
2. Separation of light particles from heavy particles
3. Separation of the particles into a number of products graded according to size
4. Separation of liquid from solid particles
principle:
The classifier is grading equipment, according to the principle that solid particles size and proportion are different, thus the settling velocity in liquids is different, fine mineral particles floating in the water to overflow out, the crude ore particles settling to the bottom, then discharged by the spiral into the upper part, to carry out grading.

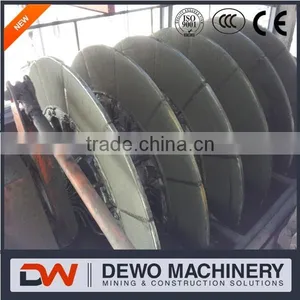

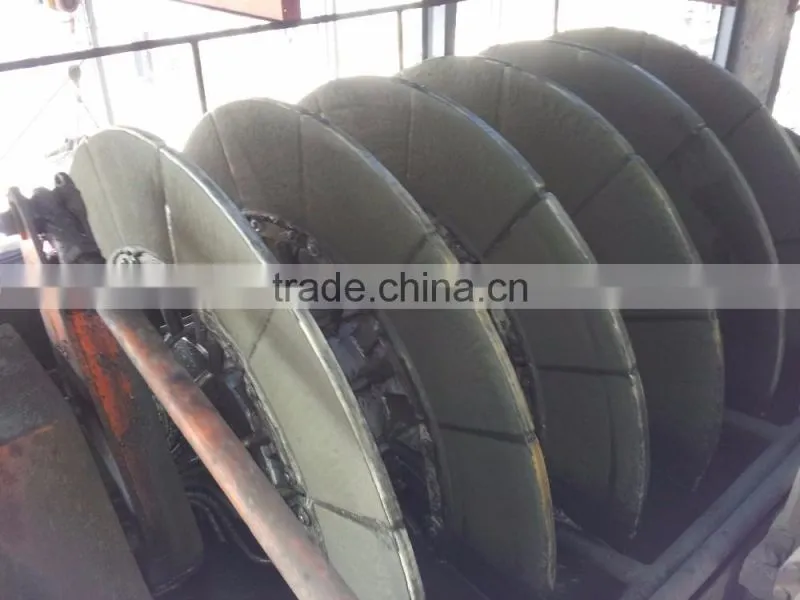

It is able to grade and filter the material which grinds to powder by grinding mill, then use of helix vane, send the coarse material into mill feed mouth, and filter out the fine material discharged from the overflow pipe
Features:
1. Energy saving
2. Heavy duty, rugged construction
3. Powerful self-contained spiral lifting device
4. Continuous spiral raking
5. Optional automatic lubrication system;
6. Wide choice of tank design
Technical Data:
| Model | DL2000 | DL1500 | LL1200 | LL900 |
| External diameter (mm) | 2000 | 1500 | 1200 | 900 |
| Inner diameter (mm) | 360 | 250 | 220 | 180 |
| Screw distance (mm) | 1200 | 900-675 | 720/540 | 540/360 |
| Ratio (scroll distance/diameter) | 0.6 | 0.6 | 0.6/0.45 | 0.6/0.4 |
| transverse obliquity (°) | 9° | 9° | 9° | 9° |
| Star | 2-4 | 2-4 | 2-4 | 2-4 |
| Turn | 3.5 | 4 | 4/5 | 4/5 |
| Feeding size (mm) | 0.4-1 | 0.03-1 | 0.03-0.3 | 0.03-0.3 |
| Feeding thickness (%) | 20-45 | 30-45 | 30-50 | 30-50 |
| Processing capacity (t/h) | 15-40 | 8-16 | 4-6 | 2-3 |
| Area (sq.m.) | 5.7 | 3.3 | 2 | 1.2 |
| Height (mm) | 6.6-8 | 5.5 | 5.23 | 3.2 |
Stone Gallery
Customer visits
Factory show
Dewo Service
Our service
Dewo can provide turkey service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
Dewo Machinery will be dedicated to provide our customers with genuine spare parts with high quality. With our technological advice, the life cycle of your machine can be prolonged and sustained significantly with high effectiveness.
About Training
Dewo machinery could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
Dewo are able to guide the overall installation of whole set production line, including crushing production line and cement equipment production line, etc., which will allow you to start the normal operation of equipment immediately. After installation,we will make inspection of the whole machine commissioning and operation condition and provide you testing data report of installation.
