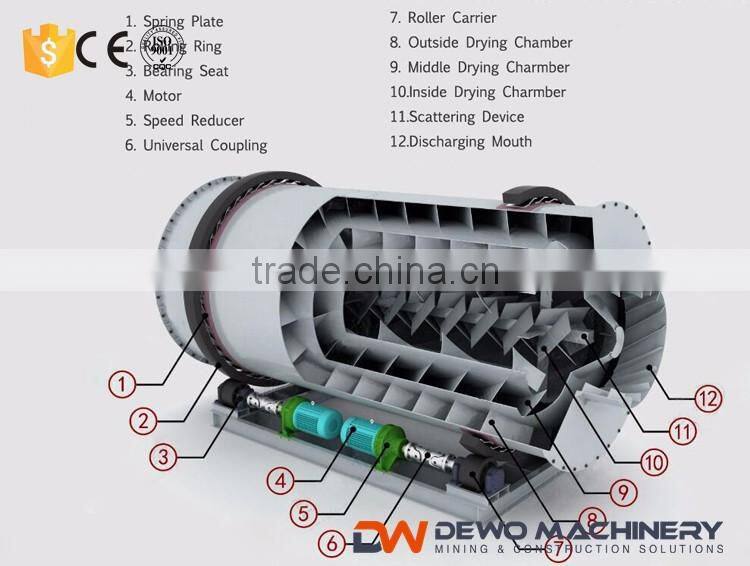

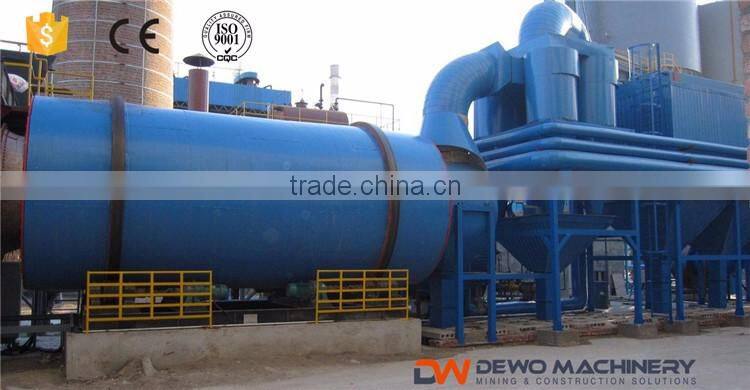

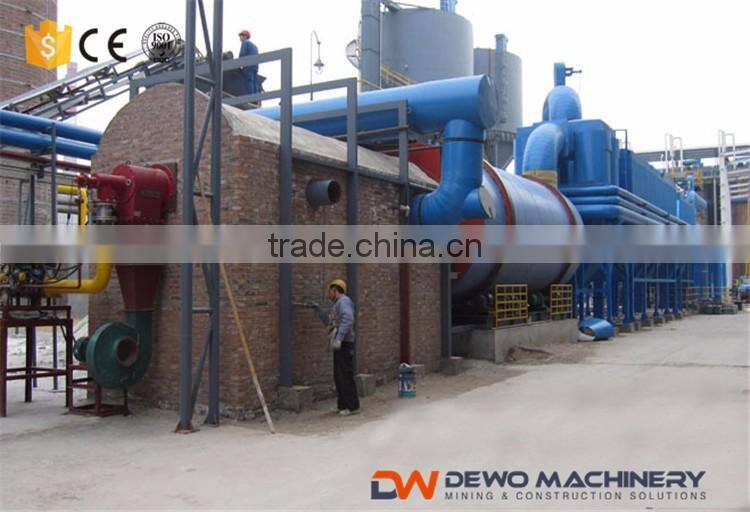

Dry-mixed Mortar 3 Pass Rotary Drum Drying Machine Used in Foundry Industry

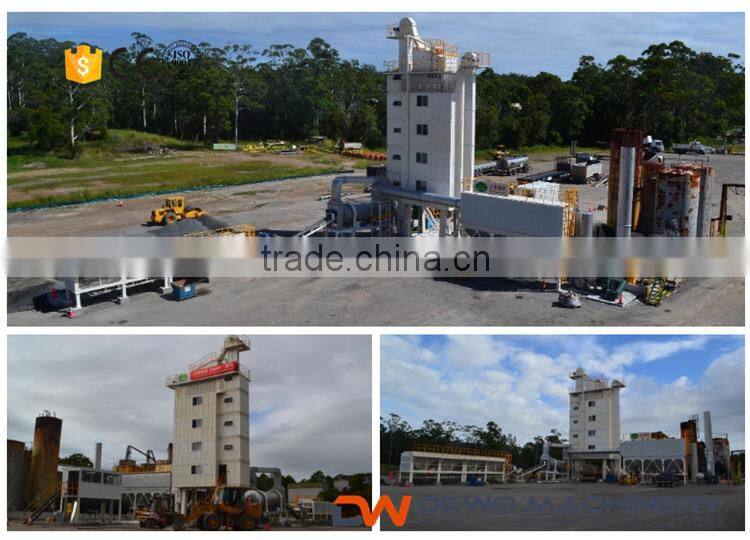

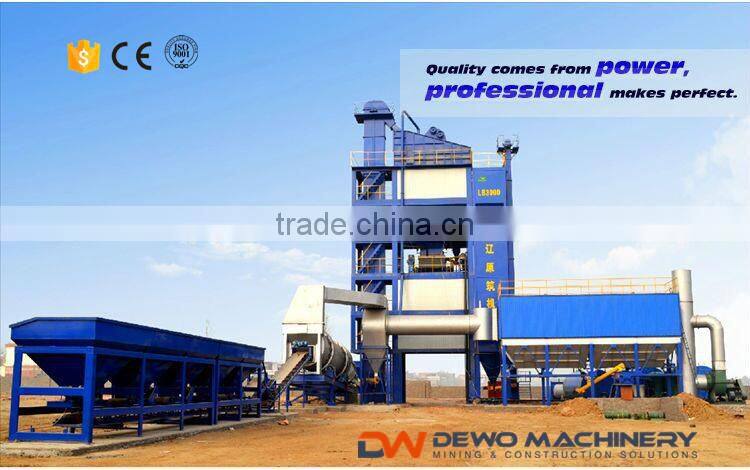

Dry-mixed mortar 3 Pass Rotary Drum Drying Machine used in foundry industry used in asphalt mixing plant  used for drying certain humidity range granular materials, such as

1.casting sand which used in dry-mixed mortar and foundry industry

2.small granular clay used in construction and cement industry

3.small granular material in chemical industry which no chemical change, not afraid of heat and dust pollution

such as coal, blue carbon, fly ash, sand, water slag, river sand, quartz sand, slag, clay etc.

Raw material with 10-25% moisture content is suitable for this dryer,and not sticky for the drum or lifting blade. The temperature of air flow is less than 70 degree. When there is any special requirement for high temperature drying, the front part of inner drum and lifting blade could be replaced by heatproof steel plate. The product moisture content is adjustable according different requests, even below 1-0.5%.

1.        The dryer drum made of wear resistant manganese plate, service life 3-4 times than common steel plate

2.        Original moisture contain <15%, after drying final moisture contain 0.5-1%.

           First choice for cement slag powder, pre-mixed mortar projects.

3.        The thermal efficiency is more than 40% higher than that of traditional single drum dryer

4.        Fuel applicable white coal, bituminous coal, coal gangue, oil, steam.

5.        reduce 60% working place, 60% civil work compare with normal single drum dryer. Easy operation.

6.        No air leakage phenomenon, solved the sealing problem.

7.        discharge temperature <60 ℃,could storage directly in the silo, no need cooling section.

8.        Outer barrel temperature <60 ℃, exhaust gas temperature < 120 ℃, dust collector serve 2 times longer.

9.        Save 2/3 coal, 40% electirc consumption. Need <9kg coal to dry one ton raw material

Approved by the National Commerce Ministry, established in 2006, located in Zhengzhou city, Henan province, covering area about 300,000 square meters, with more than 260 employees which including R&D staffs more than 50 people, Henan Dewo is a comprehensive enterprise which integrates researching, manufacturing, market developing and service for mining crushing equipment, infrastructure equipment, ore beneficiation equipment and mining drying equipment.
