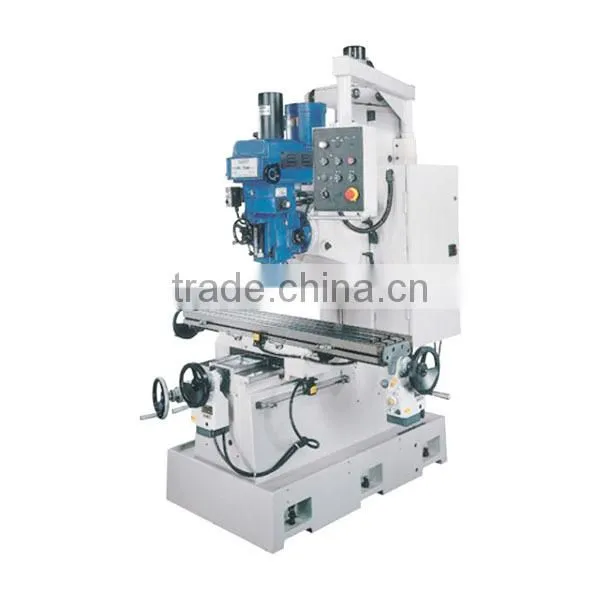

[Handy-Age]-Bed Type NST40 Vertical Mill (MW0800-039)

[Handy-Age]-Bed Type NST40 Vertical Mill (MW0800-039) thumbnail-1
[Handy-Age]-Bed Type NST40 Vertical Mill (MW0800-039) photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Handy-Age
Model Number:
MW0800-039
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Handy-Age
Model Number MW0800-039
Condition New

Item: Bed Type NST40 Vertical Mill (MW0800-039)



Features

  • Max. Table Load: 450 kgs
  • Longitudinal & cross manual movement
  • Spindle Taper N.S.T. 40
  • Vertical rapid traverse
  • Coolant Equipment

Description

  • Turret Type Variable Speed Head of vertical mill
  • Optional Functions of either X,Y Power Feed Unit or Air Power Draw Bar
  • Easy for easy operation and maintenance

Specification

ITEMS MW0800-039
Table Working Surface 1270x 254 mm
T Slot (WxNo.xPitch) 16x 3x 63
Travel XxYxZ-Manual 775x 430x 550 mm
XxYxZ-Auto 700x 410x 540 mm
Feed Long./Min. -
Long. Rapid Traverse/Min. -
Cross/Min. -
Vertical/Min. 565 Rapid
Spindle Spindle Nose N.S.T. 40
Steps Variable
Spindle Speed (RPM) 66-3165
Swiveling Angle 45 ° (R&L)
Quill Travel 127
Quill Feeds/Rev. 0.04/0.08/0.15
Spindle Nose to Table 155-695mm
Spindle Center to Column 450mm
Motor Vertical Spindle 5HP-4P
Feed Long -
Feed Cross -
Feed Vertical 1/2HP-4P-1/5
Coolant Pump 1/8HP-2P
Size Machine (LxWxH) 1870x 1485x 2330 mm
N.W. 2300Kgs
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
