[Handy-Age]-3 Axes Vertical Milling Machine (MW0800-040)

[Handy-Age]-3 Axes Vertical Milling Machine (MW0800-040) thumbnail-1
[Handy-Age]-3 Axes Vertical Milling Machine (MW0800-040) thumbnail-2
[Handy-Age]-3 Axes Vertical Milling Machine (MW0800-040) photo-1
[Handy-Age]-3 Axes Vertical Milling Machine (MW0800-040) photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
Handy-Age
Contact Supplier Request Quote Chat Now
Handy-age Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
To be advised
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Taiwan, China
Brand Name Handy-Age
Model Number MW0800-040
Type Other, 3 Axes Vertical Milling Machine
CNC or Not Normal
Power(W) Please refer to the specifications table
Dimension(L*W*H) 1870x1700x2500mm
Weight 2250kgs
Warranty 1 year only starting from shipping date

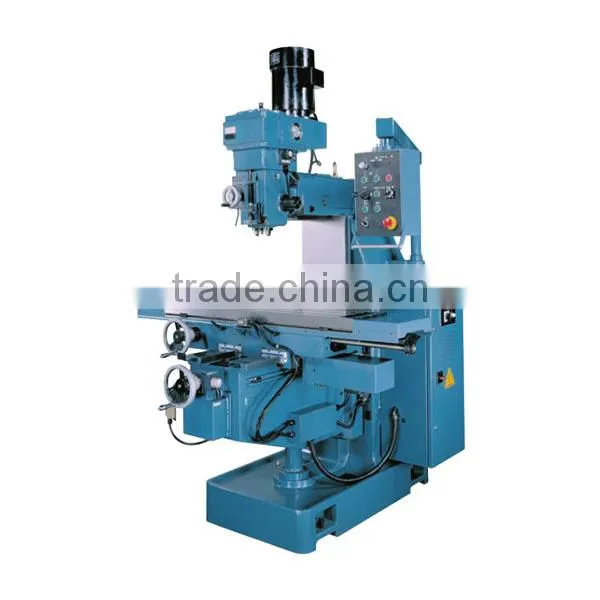

Item: 3 Axes Vertical Milling Machine (MW0800-040)



Features

  • Max. Table Load: 400 kgs
  • X, Y Axes Ball Screw C5 Class
  • X, Y Axes Servo Motor
  • Steel Telescopic on Y Axis

Description

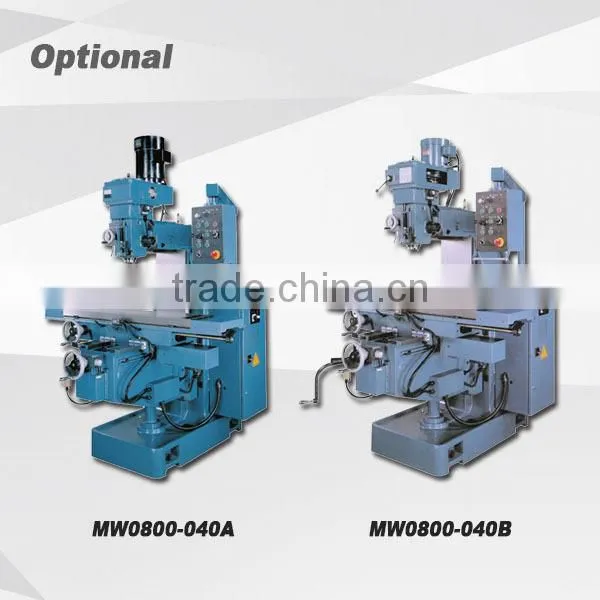

  • Two types of milling machine: inverter variable speed head (A) or step speed head (B)
  • Main casting made of meehanite cast iron
  • Ship from Taiwan with stable functions

Specification

ITEMS MW0800-040A MW0800-040B
TABLE TABLE SIZE 1270x370 (1470x370 OPT.)
T SLOT (WxNO.xPITCH) 18x3x80
TRAVEL X xYxZ- MANUAL 930 x520x360
XxYxZ- AUTO 920x500x360
FEED LONG. & CROSS/MIN. 30-3000
VERTICAL PAPID/ MIN. 1150
SPINDLE SPINDLE NOSE N.S.T. 40
STEPS INVERTER VARI. 16
SPINDLE SPEED RPM 60-3600 75-3600
SWIVELLING ANGLE 45° (R&L)
QUILL TRAVEL 140
QUILL FEEDS/REV 0.035/0.07/0.14
SPINDLE NOSE TO TABLE 0-500
SPINDLE CENTER TO COLUMN 185-685
CROSS TRAVEL OF RAM 500
MOTOR VERTICAL SPINDLE 5HP-4P 5HP-2P/4P
X,Y AXIS MOTOR 750W AC SERVO
Z AXIS MOTOR 1HP-12P (850W AC SERVO OPT.)
Z AXIS MOTOR 1/8HP-2P
SIZE MACHINE (LxWxH) 1870x1700x2500mm
NET WEIGHT(KGS) 2250kgs
  • Standard Accessories :
    • X,Y Axis Ball screw C5 Class
    • Vertical Head Auto Lub. Pump
    • X,Y Axis Servo Motor
  • Optional Accessories:
    • Model: A only
      • with vertical mechanic
      • Vari. speeds head
      • Range: 80-3800rpm
      • Motor: 5HP-4P
    • Z Axis Servo Motor 30-1150mm/min
    • X Axis Travel: 1120mm
  • The product pictures are for your reference only: final spec & accessories based on formal quotation
